Chapter 8 : CONTROL SOFTWARE (continued)
8-4. USING THE SOFTWARE (continued)

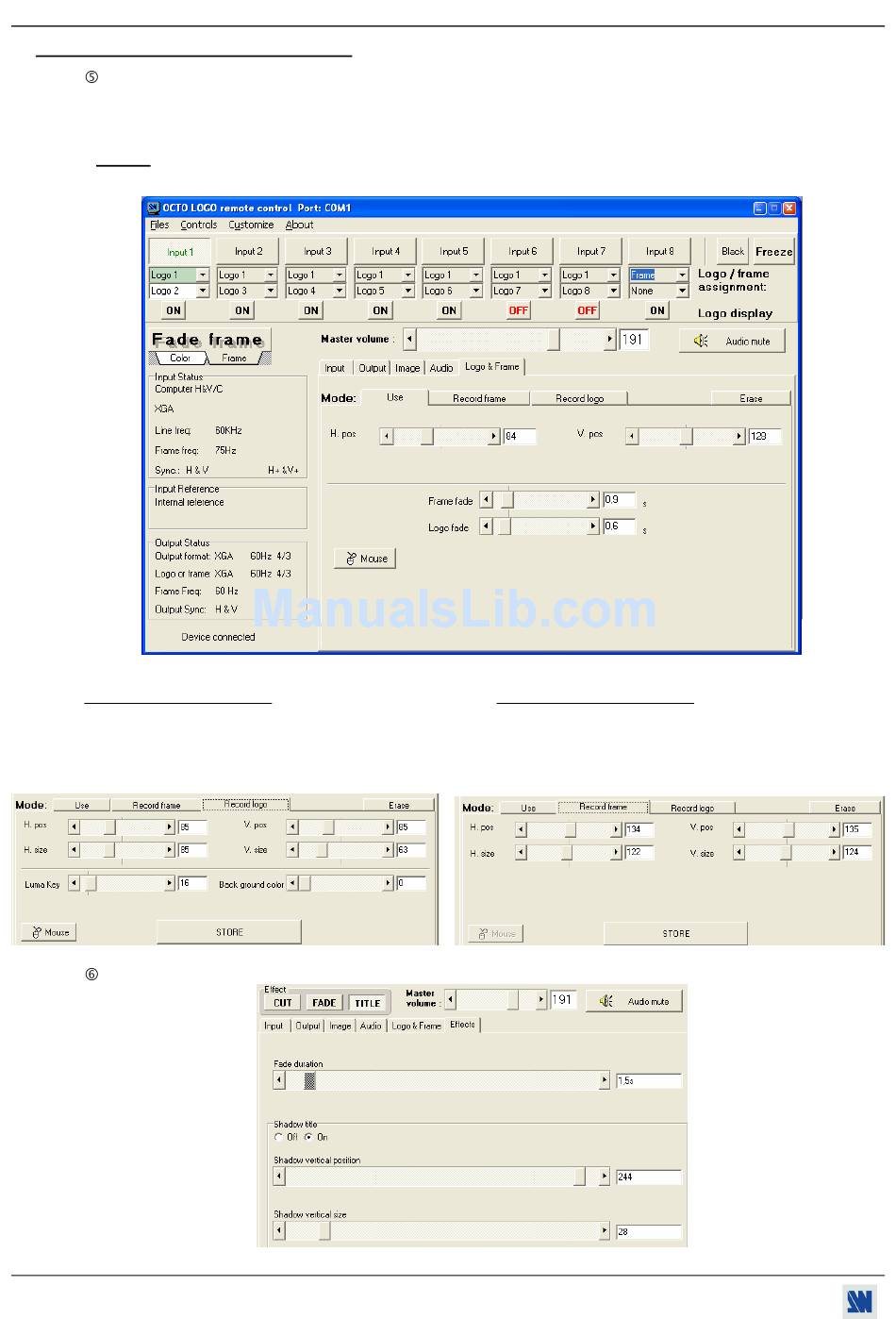

Click on the Logo & Frame tab to display the following window (OCTO-LOGO
• Use mode and Logo / frame assignment table: Click on the Use tab to display the Use mode and to have access
to the Logo / frame assignment table.
-For each input, assign your logos and frame with the Logo / frame assignment table.
NOTE: The ON/OFF buttons allow to display ON or OFF the assigned logos of each input.
-In the Use menu, adjust the position of each logo with the H. pos and V. pos functions.
• Record logo & Record frame modes:
To store a logo you should:
- Select the Record logo mode.
- Adjust the position and size of the logo.
- Adjust the Luma Key level and the Background color. - Click on STORE.
- Click on STORE and select a memory.
Click on Effect tab to display the following window (OCTO-FADE
PAGE 32
™
To store a frame you should:
- Select the Record frame mode.
- Adjust the position and size of the frame.
™
& OCTO-FX
OCTO range
™
& OCTO-FX only).
™
only).
