Analog way OCTO-PLUS User Manual page 31

OCTO range Chapter 8 : CONTROL SOFTWARE (continued)
8-4. USING THE SOFTWARE (continued)

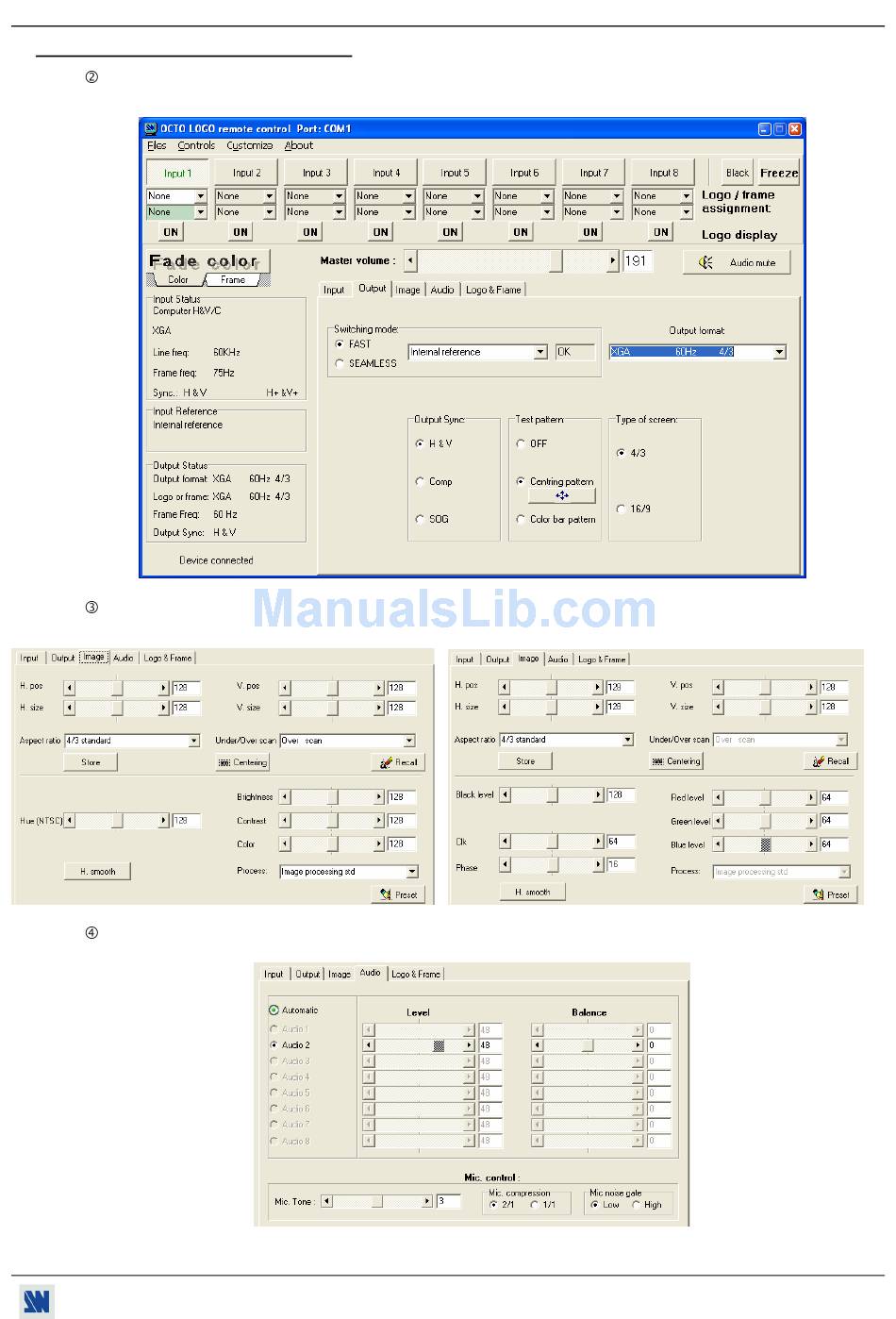

Click on the Output tab, then select the Switching mode (SEAMLESS or FAST), the Output Sync., the Type
of screen, and the Output format (in FAST mode only).
Click on the Image tab and adjust all your inputs.
• If the selected input is a video source: • If the selected input is a computer source:
Click on the Audio tab and select Automatic (follow switching mode) or an Audio source (breakaway mode).
Then adjust the Level and the Balance of each audio source.
PAGE 31
