DIAGNOSTICS

Utilization

To navigate to the Utilization page:
1. Click on the + next to Diagnostics.
2. Click on Utilization.
The Utilization page shows (see

CPU Utilization – Current and Max Utilization

Memory Utilization – Total, Used and Free Memory

Port Utilization – Received(%), Transmit(%), RX Broadcast (Packets/s) and RX
Multicast (Packets/s)
Figure 12):

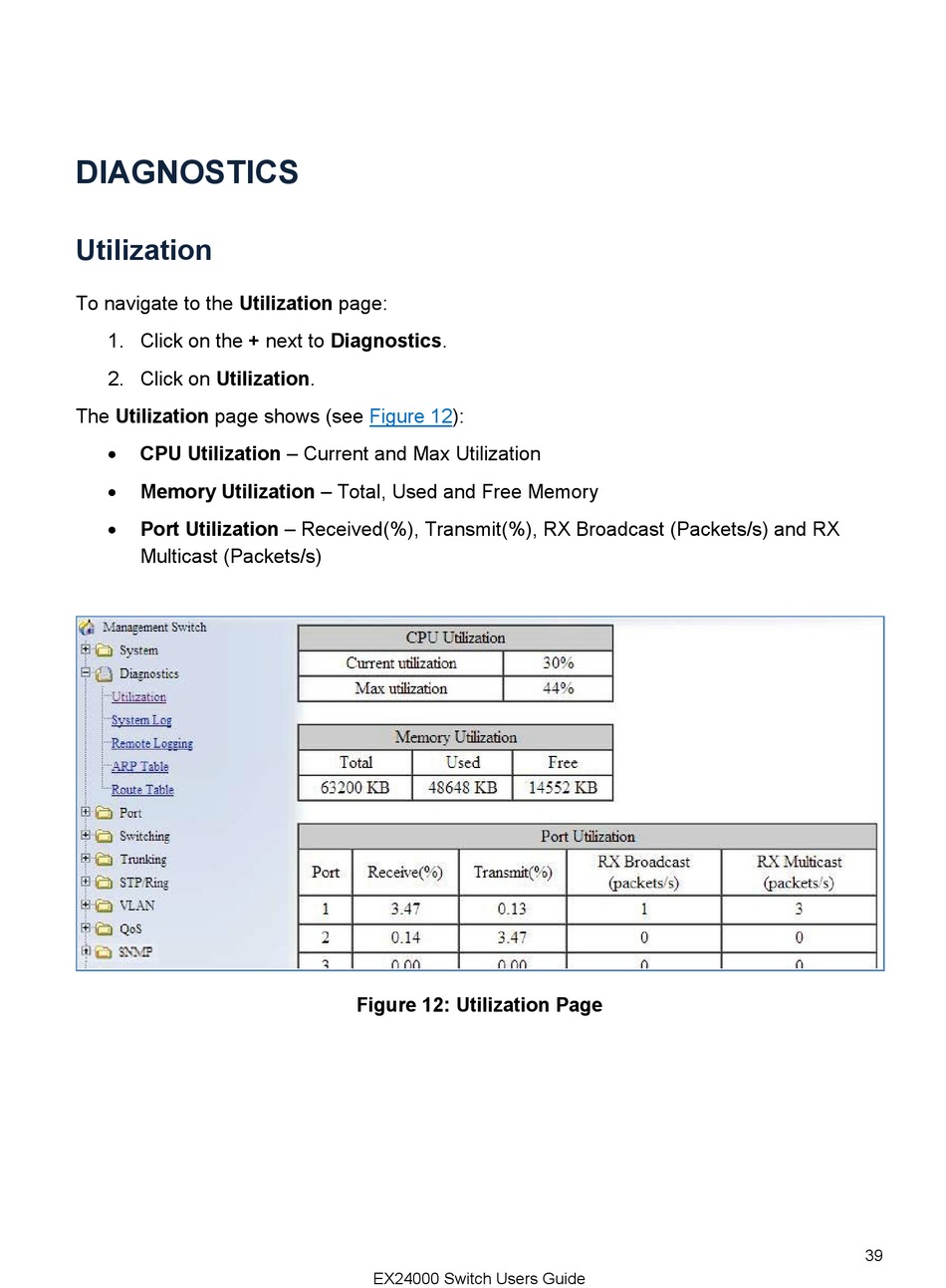

Figure 12: Utilization Page
