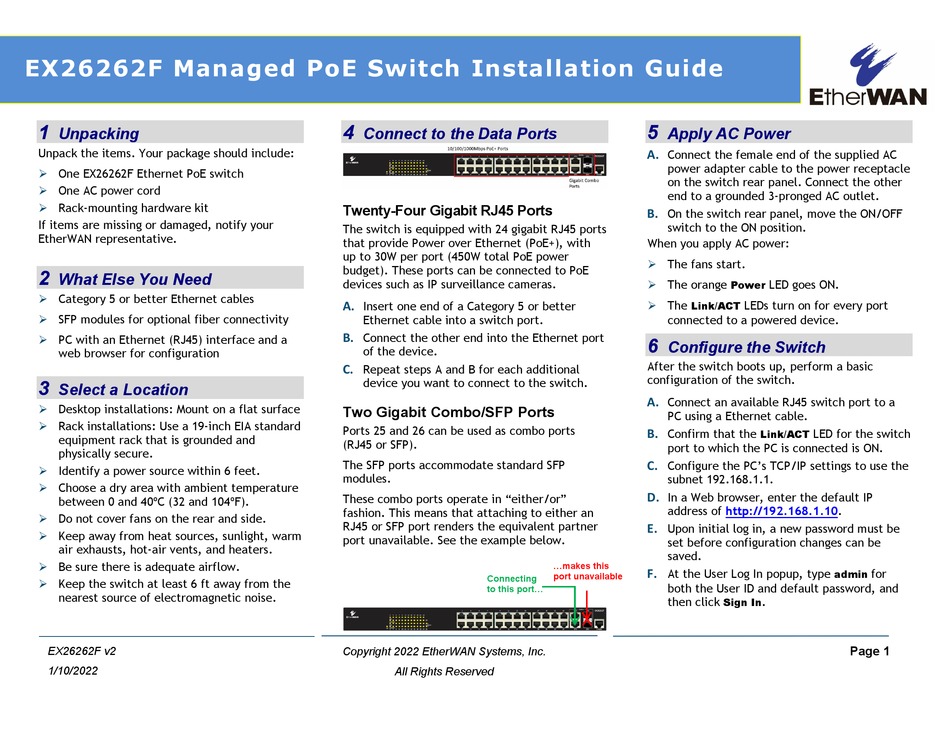

EtherWAN EX26262F Installation Manual

EX26262F Managed PoE Switch Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One EX26262F Ethernet PoE switch

One AC power cord

Rack-mounting hardware kit

If items are missing or damaged, notify your
EtherWAN representative.
2
What Else You Need
Category 5 or better Ethernet cables

 SFP modules for optional fiber connectivity
PC with an Ethernet (RJ45) interface and a

web browser for configuration
3
Select a Location
 Desktop installations: Mount on a flat surface
 Rack installations: Use a 19-inch EIA standard
equipment rack that is grounded and
physically secure.
Identify a power source within 6 feet.

 Choose a dry area with ambient temperature
between 0 and 40ºC (32 and 104ºF).
Do not cover fans on the rear and side.

 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

Keep the switch at least 6 ft away from the

nearest source of electromagnetic noise.
EX26262F v2
1/10/2022
4
Connect to the Data Ports

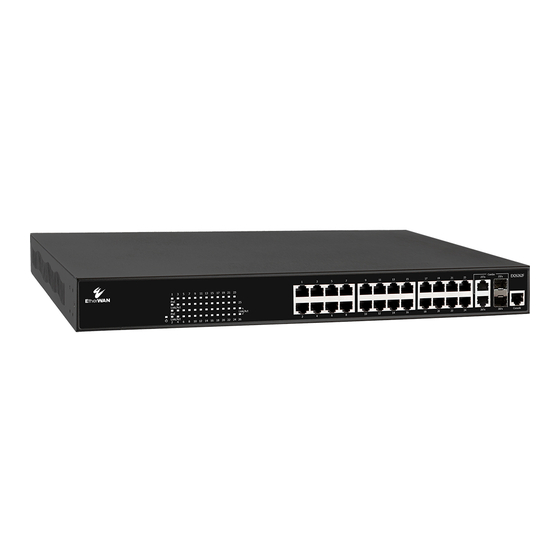

Twenty-Four Gigabit RJ45 Ports
The switch is equipped with 24 gigabit RJ45 ports
that provide Power over Ethernet (PoE+), with
up to 30W per port (450W total PoE power
budget). These ports can be connected to PoE
devices such as IP surveillance cameras.
A.
Insert one end of a Category 5 or better
Ethernet cable into a switch port.
B.
Connect the other end into the Ethernet port
of the device.
C.
Repeat steps A and B for each additional
device you want to connect to the switch.
Two Gigabit Combo/SFP Ports
Ports 25 and 26 can be used as combo ports
(RJ45 or SFP).
The SFP ports accommodate standard SFP
modules.
These combo ports operate in "either/or"
fashion. This means that attaching to either an
RJ45 or SFP port renders the equivalent partner
port unavailable. See the example below.
Connecting
to this port...
Copyright 2022 EtherWAN Systems, Inc.
All Rights Reserved
5
Apply AC Power
A.
Connect the female end of the supplied AC
power adapter cable to the power receptacle
on the switch rear panel. Connect the other
end to a grounded 3-pronged AC outlet.
B.
On the switch rear panel, move the ON/OFF
switch to the ON position.
When you apply AC power:
 The fans start.
The orange Power

The Link/ACT

connected to a powered device.
6
Configure the Switch
After the switch boots up, perform a basic
configuration of the switch.
A.
Connect an available RJ45 switch port to a
PC using a Ethernet cable.
B.
Confirm that the
port to which the PC is connected is ON.
C.
Configure the PC's TCP/IP settings to use the
subnet 192.168.1.1.
D.
In a Web browser, enter the default IP
address of http://192.168.1.10.
E.
Upon initial log in, a new password must be
set before configuration changes can be
saved.
...makes this
F.
At the User Log In popup, type
port unavailable
both the User ID and default password, and
then click Sign In
LED goes ON.
LEDs turn on for every port
Link/ACT LED for the switch
admin for
.
Page 1
