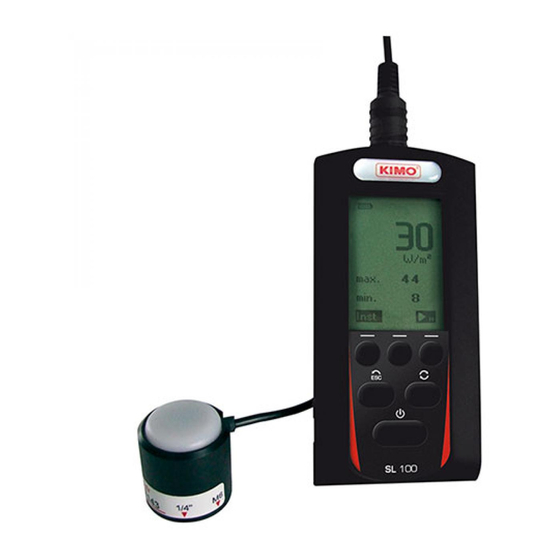

Solarimeter
SL 100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kimo SL 100

  • Page 1 Solarimeter SL 100...
  • Page 3: Table Of Contents

    Table of contents 1 Introduction............................4 2 General information..........................4 2.1 Measured units..........................4 2.2 Use..............................4 3 Operating principle..........................5 3.1 Keyboard presentation........................5 3.2 Instrument offers 3 groups of screens..................5 4 Setting..............................6 4.1 Brightness.............................6 4.2 About.............................6 5 During measurement..........................6 5.1 Irradiance............................6 5.2 Radiation exposure or global irradiation..................7 6 After measurement..........................7 6.1 Data reading..........................7 6.2 New measurement........................8...
  • Page 4: Introduction

    The output voltage of the sensor is related to the received radiation. SL 100 instrument is mainly an efficient and easy-to-use instrument: with small size, it has a large display with a resolution of 64*128 pixels involving a very high electronic technology.
  • Page 5: Operating Principle

    Keyboard presentation When being switched on, “measurement screen” is displayed. From this screen, the operator has access to three others screens by pressing on keyboard; return to measurement screen is obtained by activating Function keys Directly associated to text displayed shown above on display, they allow measurement setting.
  • Page 6: Brightness

    Accessible from principal measurement screen by successive pushes on key, those different screens allow instrument setting. They also inform users. Brightness To optimize display reading, the operator can : 1. Adjust brightness by pressing function keys. 2. Backlight LCD display for a better reading in a dark place. “No”...
  • Page 7: Radiation Exposure Or Global Irradiation

    Radiation exposure or global irradiation The instrument measures twice a second the irradiance and displays it, while memorizing minimum and maximum values. From these data, it calculates and displays the measurement duration : average value, radiation exposure or global irradiation. From start screen, the operator have access to energy measurement over a period controlled by timer and clock, he proceeds as follows: Access to exposure measurement and in sunshine control Irr.
  • Page 8: New Measurement

    New measurement After recording of results in his file, the operator can launch a new measurement. Here are the actions : 1. 1 x A message alerts the operator of a reset of memory backup. 2. 1 x Memory is erasing , visualized by the progress Memory is erased, the operator can launch a new measurement.
  • Page 9: Maintenance

    Servicing The SL 100 instrument conception allows a reduce maintenance which consists in changing batteries and cleaning the sensor with a cloth slightly dampened. Regular checking Like most measuring instruments, it is strongly recommended to regularly control and calibrate SL100. Return to the manufacturer each year will provide necessary metrological traceability.
  • Page 10: Solar Cell

    Solar cell Spectral response from 400 to 1100 nm Nominal calibration coefficient 100mv for 1000W/m Response in cosine corrected until 80° Coefficient in temperature +0.1%/°C Operating temperature from -30°C to +60°C Humidity dependence 100% RH UV performance excellent (PMMA filter) Mode photovoltaic Surface active...
  • Page 11: Accessories

    Tripod • Fixing kit for solar panels • • Extensions : 4 m (possibility to connect 2 extensions max) Power supply adaptor •...
