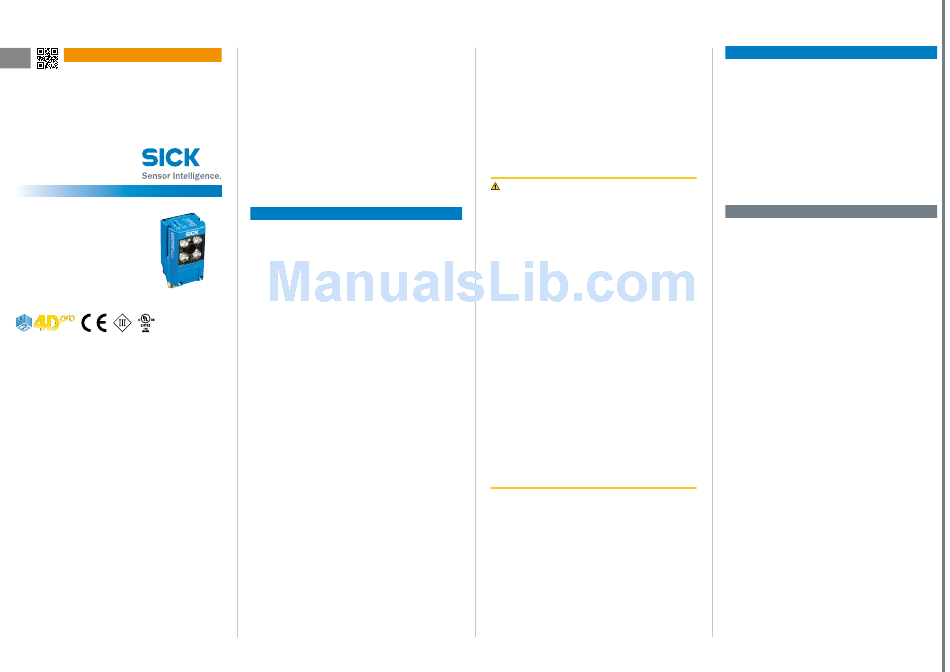

SICK Lector620 Operating Instructions Manual

Operating instructiOns
en
Lector620
Image-based code reader
intended use
the Lector620 image-based code readers are intel-
ligent SICK-4Dpro sensors. the Lector620 is used
for automated, fixed identification and decoding of
codes on moving or stationary objects. they read all
commonly used 1D codes (bar codes/stacked codes)
and 2D codes (matrix codes). The Lector620 uses its
host interface to send the read data to a higher-level
computer for further processing.
the Lector620 product family offers several variants:
Professional, High Speed, DPM Plus, oCr and eCo.
these include further sub-variants depending on the
model. - See "Type code" on page 7.
about this document
In this document, the Lector620 is referred to as
"device" for simplicity's sake.
the purpose of these operating instructions is to
allow you to commission the device quickly and easily
and to achieve initial read results. these instructions
describe a stand-alone application for a device based
on the default settings. the optional CDB620-001
connection module is used for the industrial-standard
signal distribution of the device.
8014640/YWI5/2016-08-08 • Subject to change without notice • SICK AG • Waldkirch • Germany • www.sick.com
these operating instructions are applicable for the
variants according to the type code. - See "Type
code" on page 7.
supplementary and other relevant documents
More information, such as application examples and
downloads of associated documents and associated
software, can be found on the SICK product page on
the Internet:
www.sick.com/lector62x
Information about configuration can be found in the
online help function of the SOPAS ET configuration
software.
For your safety
• this chapter is dedicated to the safety of commis-
sioning personnel and personnel operating the
system in which the device is integrated.
• read these instructions carefully before commis-
sioning the device in order to familiarize yourself
with the device and its functions. the operating
instructions must be kept in the immediate vicinity
of the device where they can be accessed at all
times.
• Do not look into the reading window of the device
in order to dazzling from the bright, integrated
lighting. - See warning "Optical radiation" on
page 1.
• to comply with the variant-dependent IP 67 / 65
enclosure rating in operation, the following require-
ments must be met. If this is not done, the device
does not fulfill any specified IP enclosure rating.
• the black cover for the microSD card slot and
USB port must be screwed tight to the device.
• Devices with swivel connector: the cables
plugged into the M12 connectors are locked in
place.
• electrical connections that are not being used
must be fitted with protective caps/plugs, which
must be screwed tight (as they are on delivery).
• only operate the device without the cover for
the microSD card slot for a short period while
inserting or removing the memory card. During
this time, protect the device against moisture
and dust.
• opening the screws of the device will invalidate
any warranty claims against SICK AG. For further
warranty provisions, see the General terms and
Conditions of SICK AG, e.g., on the delivery note of
the device.
• Data integrity: SICK AG uses standardized data
interfaces, such as standard IP technology, in its
products. the emphasis here is on the availability
of products and their features. SICK AG always
assumes that the integrity and confidentiality of the
data and rights affected by the use of these prod-
ucts will be ensured by the customer. In all cases,
appropriate security measures, such as network
separation, firewalls, virus protection, and patch
management, must be taken by the customer on
the basis of the situation in question.
cautiOn
Optical radiation
class 1 laser radiation
the accessible beam from the targeting laser does
not represent a risk due to the normal restrictions
imposed by human behavior.
LeD risk group 1 (rg 1):
the accessible beam from the illumination unit does
not represent a risk due to the normal restrictions
imposed by human behavior.
For both types of beams:
It is not possible to entirely rule out temporary, disori-
enting optical effects on the human eye (e.g., dazzle,
flash blindness, afterimages, impairment of color
vision), particularly in conditions of dim lighting. No
safety precautions are required.
Caution – if any operating or adjusting devices other
than those specified here are used or other methods
are employed, this can lead to dangerous exposure to
radiation.
¾ Do not look into the light source when it is switched ¾
on.
¾ Comply with the applicable regulations on photobio-
¾
logical safety of lamps and lamp systems as well as
on laser protection.
- For more information see "Technical data (ex-
cerpt)" on page 6.
Commissioning and configuration
scope of delivery
• the version of the Lector620 ordered, including 2
M5 sliding blocks. Electrical connections fitted with
protective caps/plugs. only the eCo variant has a
connecting cable fitted.
• Printed operating instructions in German (no.
8014639) and english (no. 8014640). other
language versions may be available in PDF format
from the online product page:
www.sick.com/lector62x
• optional: accessories such as brackets and con-
necting cables are supplied if ordered separately
step 1: Mounting and alignment
equipment required
• 2 or 4 M5 screws for mounting the device on a
bracket supplied by the customer. Screw lengths
are dependent on the mounting base (wall
thickness of bracket). When using optional SICK
brackets, screws for the device are included with
delivery.
Mounting requirements
• the permissible ambient conditions for operating
the device must be observed (e.g., ambient tem-
perature, ground potential). - See "Technical data
(excerpt)" on page 6. - See warning "Risk of
injury and damage caused by electrical current!"
on page 2.
• Stable bracket with sufficient load-bearing capacity
and suitable dimensions for the device. Net weight
170 g (without cables). - Dimensional drawings,
see "Setup and function" on page 4.
• Shock and vibration-free mounting
• Clear view of the codes to be detected on the
objects
LeCtor62x | SICK 1
