Summary of Contents for Moxa Technologies VPort P06-2L25M

  • Page 1: Quick Installation Guide

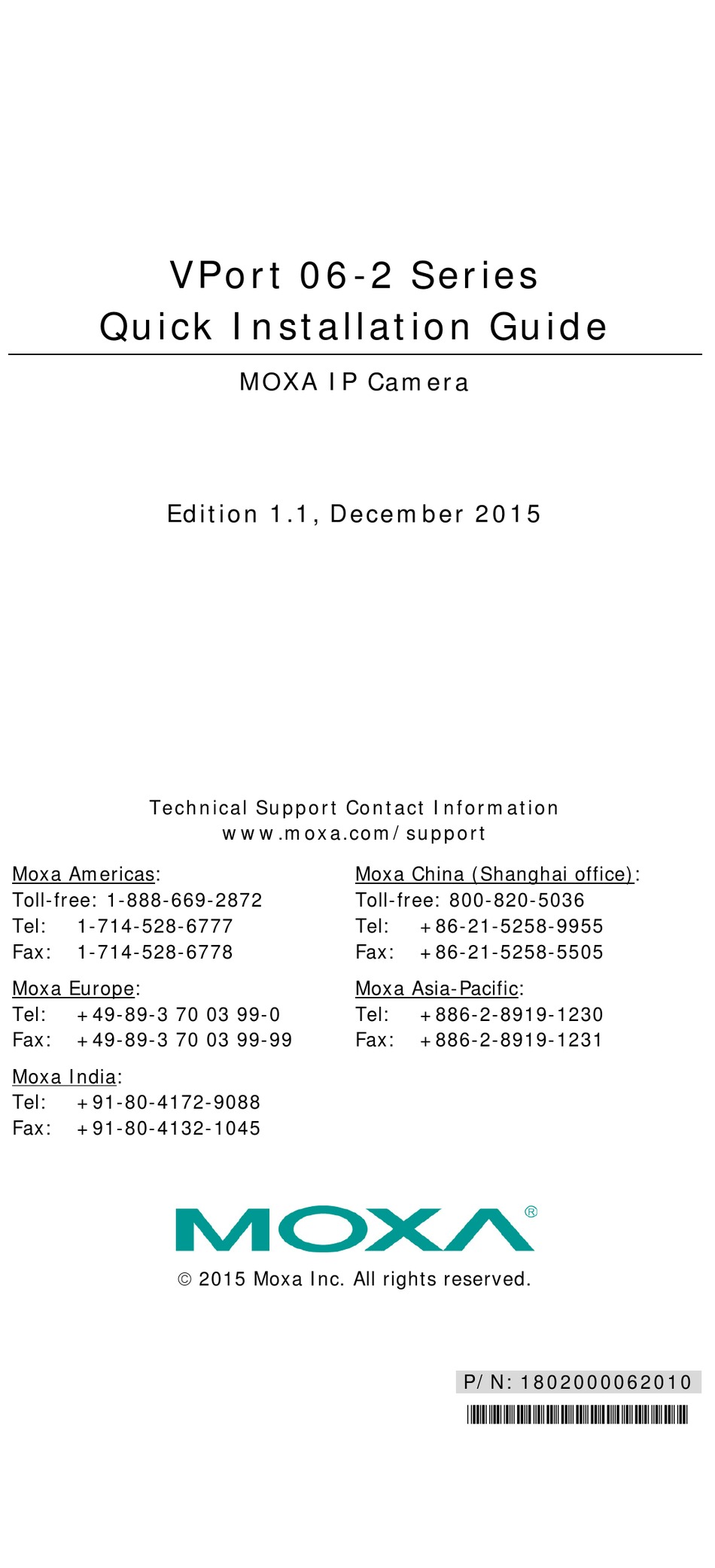

    VPort 06-2 Series Quick Installation Guide MOXA IP Camera Edition 1.1, December 2015 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel:...
  • Page 2: Ordering Information

    The following VPort 06-2 series models are available: Model Temperature Lens Conformal Audio -25 to -40 to PoE model 24 VDC model (mm) Coating 55°C 70°C VPort P06-2L25M VPort 06-2L25M Line-in – –  VPort P06-2L36M VPort 06-2L36M Line-in – –  VPort P06-2L42M VPort 06-2L42M Line-in –...
  • Page 3 Model Temperature Lens Conformal Audio -25 to -40 to (mm) Coating PoE model 24 VDC model 55°C 70°C VPort P06-2M25M-CT-T VPort 06-2M25M-CT-T Mic-in –   VPort P06-2M36M-CT-T VPort 06-2M36M-CT-T Mic-in –   VPort P06-2M42M-CT-T VPort 06-2M42M-CT-T Mic-in – ...
  • Page 4: Product Description

    Sticker for camera mounting positions Contents of the Package • Quick Installation Guide • Two dry packs and double sided tape • Documentation and Software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) • Warranty card NOTE Check the model name on the VPort’s side label to determine if it is the correct one for your order.
  • Page 5 • 4-pin D-code M12 Ethernet connector: Can be used for both the PoE power supply (PoE model) and Auto MDI/MDI-X Ethernet connection NOTE To connect the VPort 06/P06-2MP series to a network, use an Ethernet cable with D-code M12 connector and an M12 PoE switch or RJ45 PoE switch M12 D-code to M12 D-code M12 PoE switch (e.g.,...
  • Page 6 • 5-pin M12 connector (PoE model): Includes digital input signal, and audio input (line-in model). Con. DI + Line-in+ DI - Line-in - • Solid metal top cover: This top cover can be removed for adjusting the camera lens position. •...
  • Page 7: Hardware Installation

    Calibration for rotating lens (0 to 360°): Rotate the lens to get • the optimal image. When done, mark the position of this calibration for future placement or mass installation. • Calibration for adjusting lens’s vertical position (0 to 90°): After adjusting the lens’s vertical position, mark the position of this calibration for future placement or mass installation.
  • Page 8 c. Mounting with the fixed plate If you cannot use the VP-FP2 nut/gasket/spring-washer set to mount the camera on your ceiling, use the VP-FP2 fixed plate. Drill holes through the green dotted-line and 4 camera mounting screw markings on the sticker, and then place the VP-FP2 inside the hole.
  • Page 9: Software Installation

    Step 4: Loosen the screw for adjusting the horizontal, vertical, and rotating lens position. Once the lens position is correct, fix the screw. Step 5: Stick the double-sided tapes onto two dry packs and use the other side of the tapes to stick the dry packs on the inside of the top cover to absorb the moisture that might have entered the camera housing...
  • Page 10 Using the Moxa VPort and EtherDevice Configurator Utility (edscfgui.exe) 1. Run the edscfgui.exe program to search for the VPort. After the utility’s window opens, you may also click on the Search button to initiate a search. 2. When the search has concluded, the Model Name, MAC address, IP address, serial port, and HTTP port of the VPort will be listed in the utility’s window.
  • Page 11 Step 4: Access the homepage of VPort 06-2 series' web-based manager. After installing the ActiveX Control component, the homepage of the VPort 06-2 series’ web-based manager will appear. Check the following items to make sure the system was installed properly: 1.
  • Page 12: Wiring Requirements

    Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 06/P06-2 series. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.
