Page 1: Quick Installation Guide

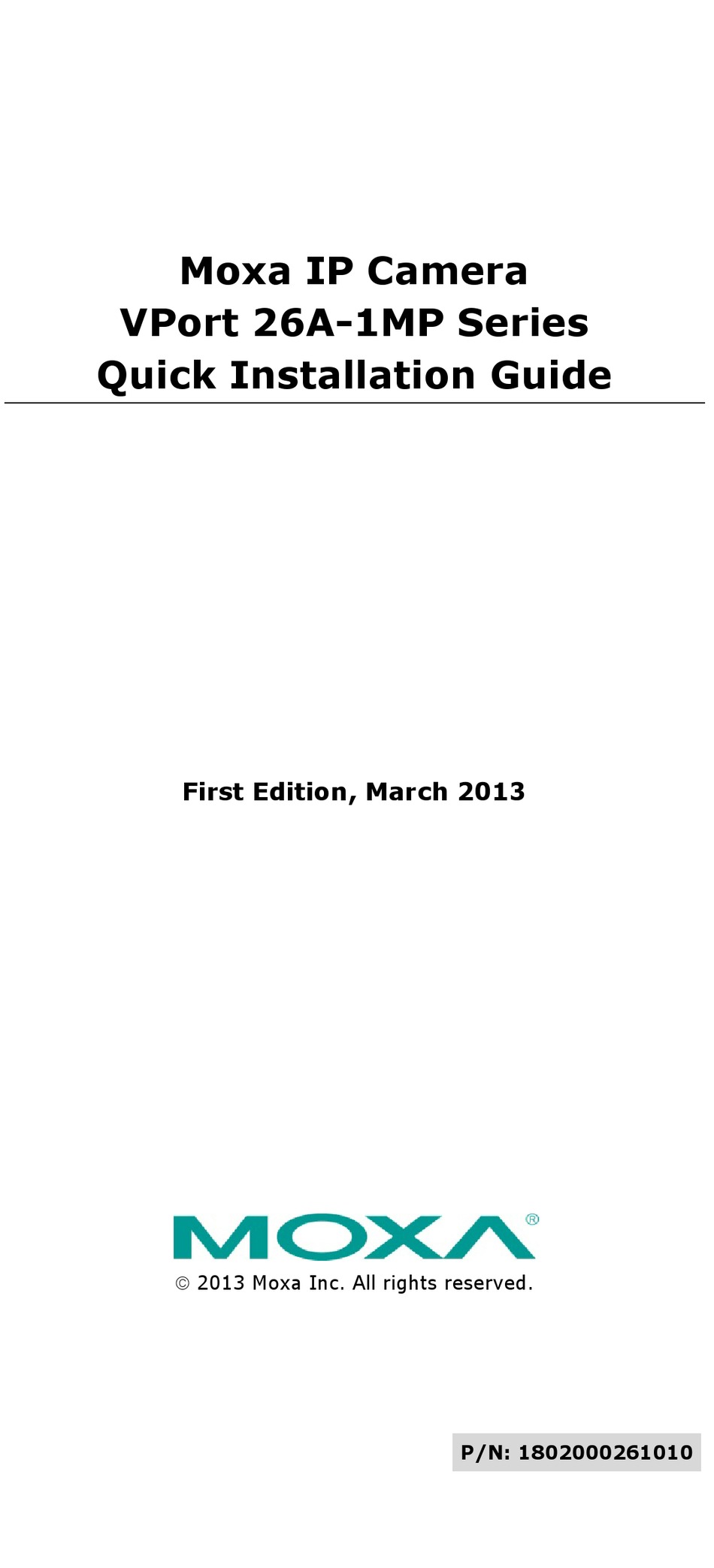

Moxa IP Camera VPort 26A-1MP Series Quick Installation Guide First Edition, March 2013 2013 Moxa Inc. All rights reserved. P/N: 1802000261010... -
Page 2: Package Checklist
PoE (Power over Ethernet, 802.3af) function, or the wired power input model with 12/24 VDC or 24 VAC. The VPort 26A-1MP series is designed to provide both H.264 and MJPEG video streams and to transmit up to 3 independent video streams (2 in H.264, and 1 in MJPEG) simultaneously. - Page 3 • Cable glands accessories package IP66 cable glands to ensure IP66 protection when the cables are connected • Sticker for camera mounting positions • Quick installation guide • Documentation and Software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) •...
- Page 4 • Video latency under 200 ms • 1 audio input and 1 audio output supported for complete video/audio surveillance solution • WXGA/HD/SVGA/Full D1/ 4CIF/ VGA/ CIF/ QCIF resolution • TCP, UDP, and HTTP network transmission mode • Supports RTSP streaming •...
- Page 5 NOTE If you are interested in the Moxa VPort SDK PLUS, please go to Moxa’s website (www.moxa.com) to download the software, or contact a Moxa sales representative for more information. NOTE If you are interested in Moxa’s SoftNVR-IA IP surveillance software, please go to Moxa’s website (www.moxa.com) to download the trial version.
- Page 6 Vari-focal Lens The VPort 26A-1MP series comes with a day and night 3 to 9 mm megapixel vari-focal lens for providing high quality video images. Users can adjust the Zoom and Focus manually to get clear images regardless of the site environment.
- Page 7 5 lux, the image will be switched back to day mode in color. 2-pin Terminal Blocks for Power Input The VPort 26A-1MP series comes in two models: • VPort 26A-1MP: 12/24 VDC or 24 VAC power inputs •...
- Page 8 NO (Normal Open) Max. 1A, 24 VDC C (Common) (Relay Output) Initial status is Normal Open NC (Normal Close) Low: +13 V to +30 V DI (Digital Input) High: -30 V to +3 V LED Indicators and DIP Switches The VPort 26A-1MP has 3 LEDs for indicating the power status, 10/100 Mbps Ethernet link, and system status.
-
Page 9: First-Time Installation And Configuration
2. Restore to Factory Settings: To restore the VPort 26A-1MP to the factory default settings, press the reset button continuously until the System LED blinks in red. After the system LED stops blinking, release the reset button. The POST process will run, and the VPort will reboot. - Page 10 Step 2: Remove the inner case. Loosen the 4 screws, and then take out the IP camera module. Step 3: Connect the cables. a) Open the conduit hole (the side conduit hole is shown in the figure) - 10 -...
- Page 11 b) Prepare the cable gland (if required). C) Use the cable gland to assemble the cables. - 11 -...
- Page 12 NOTE When installing the cable gland, make sure the 2 rubber rings are assembled properly for IP66 protection. If necessary, use silicon sealant. d) Connect the cables to the IP camera module’s connectors. Connect the Ethernet cable to the RJ45 Ethernet port, and connect the terminal blocks to the power line and DI/DO/Audio lines (if used).
- Page 13 NOTE Arrange the cables carefully to make sure that all cables are connected properly. We recommend connecting the Ethernet cable first, and then the 9-pin terminal block. Connect the 2-pin terminal block last. NOTE The conduit hole must face downward to provide the VPort 26A-1MP with IP66 protection against rain when installed in an outdoor environment.
- Page 14 b) Using the mounting kit accessory (VP-MK2) Step 1: Use the four machine screws, which are provided in the VP-MK2 accessory package, to fasten the bottom of the case to the plate. Step 2: Assemble the mounting kit with the selected accessory.
- Page 15 Step 6: To get the desired video image, adjust the angles and zoom strength. Take out the inner case after loosening the 2 screws for the inner case a) Pan adjustment b) Tilt adjustment - 15 -...
- Page 16 c) Rotate adjustment NOTE Do not grasp the lens when rotating the camera. Instead, hold the two copper cylinders. NOTE After adjusting the PAN, TILT, and ROTATE positions, tighten all of the screws to ensure that the orientation of the camera does not change.
-
Page 17: Software Installation
Software Installation Step 1: Configure the VPort 26A-1MP’s IP address When the VPort 26A-1MP is first powered on, the POST (Power On Self Test) will run for a few moments. The System LED will turn green when the POST is complete. The 10 Mbps or 100 Mbps LED will then flash as the IP address is assigned. - Page 18 Step 2: Accessing the VPort 26A-1MP’s web-based manager Type the IP address in the web browser’s address input box and then press enter. Step 3: Install the ActiveX Control Plug-in A security warning message will appear the first time you access the VPort’s web-based manager.
-
Page 19: Wiring Requirements
appear in the green bar near the top of the page. Use this information to check the system information and installation. For details of each configuration, check the User’s Manual on the software Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 26A-1MP. -
Page 20: Specifications
Dimensions Specifications Camera Sensor 1/2.7” HD progressive scan CMOS Lens Focal length = 3 to 9 mm, F = 1.2 Horizontal: 121.2° to 38.1° Vertical: 62.1° to 21.3° Diagonal: 148.4° to 43.8° Auto Iris type DC drive Camera Angle Pan: ±175°; Tilt: 0 to 85°; Rotation: ±180° Minimum illumination Color: 0.2 lux at F1.2 (low light sensitivity) -
Page 21: Led Indicators
Auto exposure Level ±5 Digital Zoom Image Rotation: Flip, Mirror, and 180° rotation Image Setting Manual tuning with saturation, sharpness, and contrast Video Video Compression H.264 (ISO/IEC 14496-10) or MJPEG Video Output Via Ethernet port Video Streams Maximum of 3 video streams (2 x H.264, 1 x MJPEG) Video Resolution and FPS (frames per second): NTSC... - Page 22 Power Input VPort 26A-1MP: 1, 12/24 VDC or 24 VAC with 2-pin terminal block connector VPort P26A-1MP: 1, Power-over-Ethernet (IEEE802.3af) Consumption • VPort 26A-1MP: 4.7 W • VPort P26A-1MP: 5.8 W Local stroage SD Socket Standard SD socket (SDHC) Physical Properties Housing Metal, IP66 rated for rain and dust protection, vandal-resistant...
- Page 23 Security • User level password protection • IP address filtering • 802.1X authentication • HTTPS, SSH encryption Minimum Viewing System Requirements • Pentium 4, 2.4 GHz • 512 MB of memory • Windows XP/2000 with SP4 or above • Internet Explorer 6.x or above •...
