User Manual
VPort P06HC-1MP-M12
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Moxa IP Camera
Edition 2.0, February 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000061011
*1802000061011*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies VPort P06HC-1MP-M12
Summary of Contents for Moxa Technologies VPort P06HC-1MP-M12
-

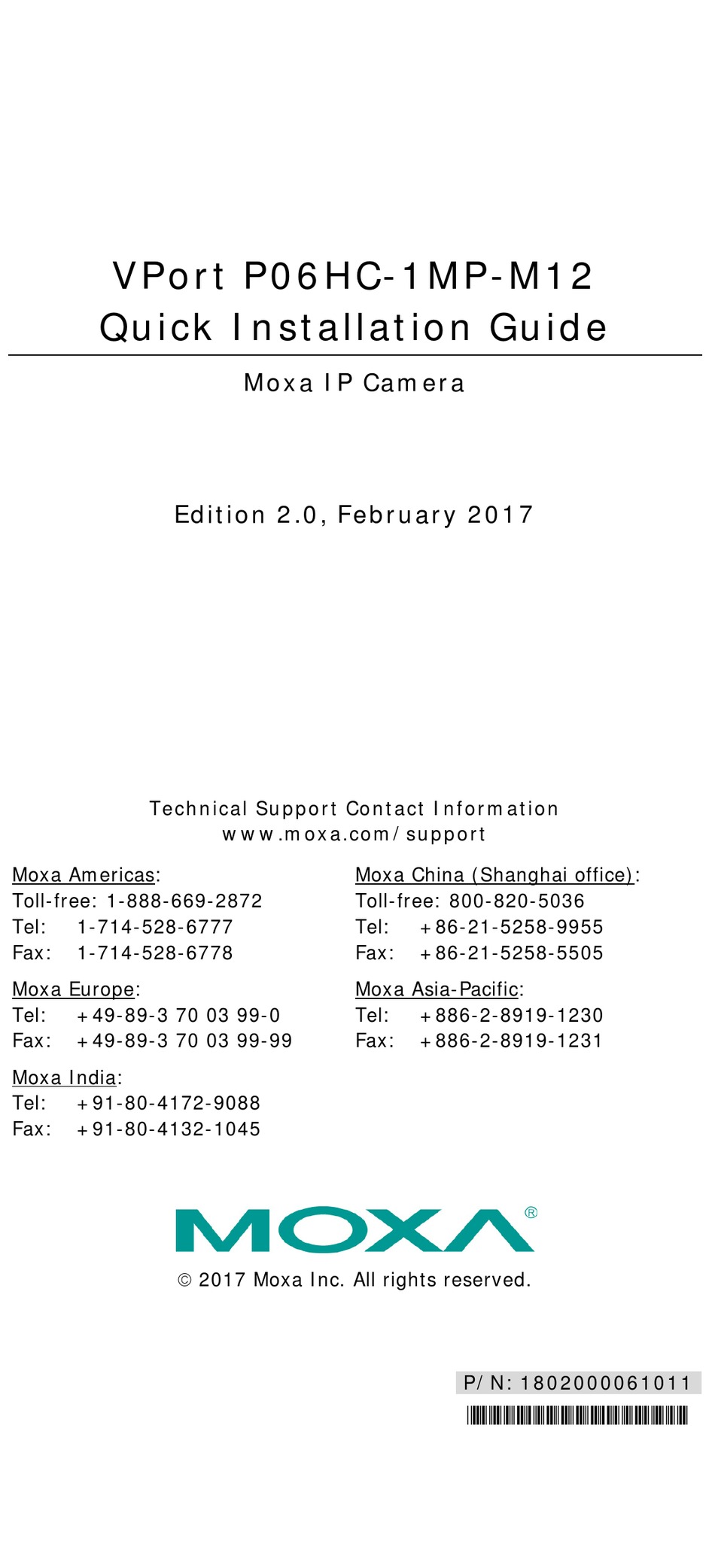

Page 1: Quick Installation Guide
VPort P06HC-1MP-M12 Quick Installation Guide Moxa IP Camera Edition 2.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel:... -
Page 2: Package Checklist
Ethernet port, 1 built-in microphone, 1 digital input, PoE power inputs, IP66 rain and dust protection, and a selectable lens. Package Checklist Moxa’s VPort P06HC-1MP-M12 is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. - Page 3 Documentation and Software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) Warranty card NOTE Check the model name on the VPort’s side label to determine if the model name is correct for your order. NOTE This product must be installed in compliance with your local laws and regulations.
-
Page 4: Product Description
M12 male to M12 male cable M12 PoE Switch (e.g., TN-5508-4PoE) M12 male to RJ45 cable RJ45 PoE switch (e.g., EDS-P510) NOTE The power input rating of the VPort P06HC-1MP-M12 is 48 VDC, 0.13 A, with maximum power consumption approximately 6.3 W. - 4 -... - Page 5 The user can remove this lens cover after loosening the 6 torx screws. NOTE The VPort P06HC-1MP-M12’s optical lens cover is coated with a high performance waterproof coating. Please use the scrubbing cloth to light clean the cover.
-
Page 6: Hardware Installation
• Lens with fixed focal length: The VPort P06HC-1MP-M12 series supports a fixed focal-length lens. Choose the appropriate focal-length lens based on the viewing angle and object distance. - Page 7 VP-FD1 Step 1: Screw the 2 L-type installation plates onto the VPort P06HC. Vertical mountable Horizontal mountable Step 2: Use the installation sticker to drill the holes for flush-mounting the VPort P06HC with the VP-FD1. - 7 -...
- Page 8 NOTE The screw holes for mounting the 2 VP-FD1’s mounting kits are countersunk holes with 8 mm top diameter and 4.3 mm chamfer. Take this into consideration when drilling these 4 screw holes. Step 3: Install the VP-FD1’s mounting kit. Screw 4 nylock M4 screws on the 4 countersunk screw holes with 2 VP-FD1’s mounting kits.
-
Page 9: Software Installation
Software Installation Step 1: Configure the VPort P06HC-1MP-M12’s IP address. When the VPort P06HC-1MP-M12 is first powered on, the POST (Power On Self Test) will run for a few moments (about 30 seconds). The network environment determines how the IP address is assigned. - Page 10 You should unlock the ActiveX control blocked function or disable the security configuration to enable the installation of the VPort’s ActiveX Control component. Step 4: Access the homepage of the VPort P06HC-1MP-M12’s web-based manager. After installing the ActiveX Control component, the homepage of the VPort P06HC-1MP-M12’s web-based manager will appear.
-
Page 11: Wiring Requirements
ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort P06HC-1MP-M12. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. -
Page 12: Dimensions (Mm)
You should also pay attention to the following: • Use separate paths to route wiring for power and devices. If power wiring and device wiring paths must cross, make sure the wires are perpendicular at the intersection point. • You can use the type of signal transmitted through a wire to determine which wires should be kept separate. - Page 13 S/N Ratio 50 dB (Gamma, Aperture, AGC, OFF; DNR ON) Built-in DNR Level 1 to 8 AGC Control 2X, 4X, 8X, 16X Flickerless Control Automatic/ 50Hz/60Hz mode Black level control High/Medium/Low Auto Exposure Level ±5 Image Rotation Flip, Mirror, and 180° rotation Image Setting Manual tuning with saturation, sharpness, and contrast...
- Page 14 GPIO Digital Input 1, max. 8 mA Low: +13 V to +30 V; High: -30 V to +3 V Power Requirements Input Power-over-Ethernet (IEEE 802.3af) Consumption Maximum 6.3W Physical Characteristics Housing IP66 rain and dust protection, metal housing with transparent cover Dimensions 109 x 68 x 90 mm (4.29 x 2.68 x 3.54 in) Installation...
- Page 15 Security • Password: User level password protection • Filtering: By IP address • Encryption: HTTPS, SSH Minimum Viewing System Requirements • Pentium 4, 2.4 GHz • 512 MB of memory • Windows XP with SP3 and above, Windows 7 • Internet Explorer 9.x or above •...
