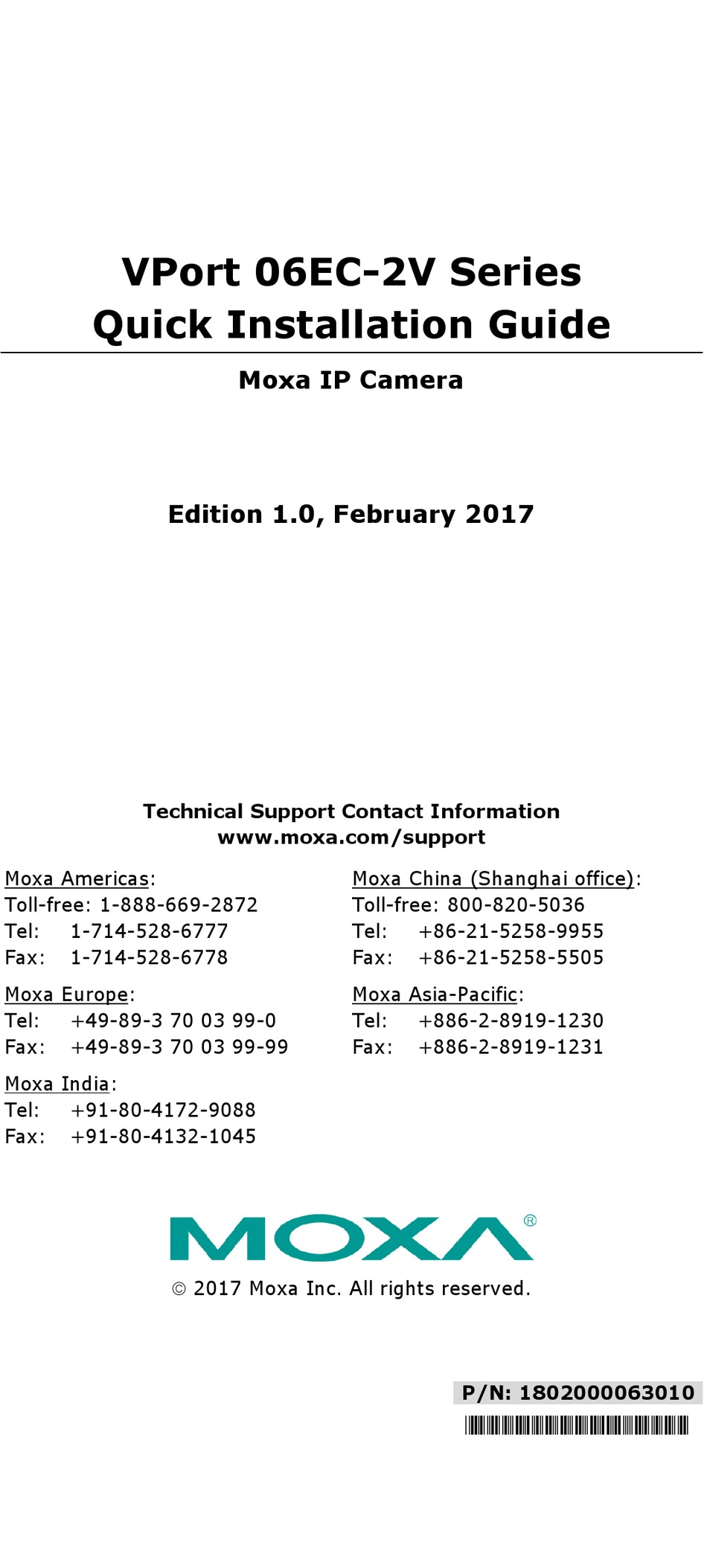

VPort 06EC-2V Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Moxa IP Camera
Edition 1.0, February 2017
Technical Support Contact Information
www.moxa.com/support
2017 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000063010
*1802000063010*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies VPort 06EC-2V36M
Summary of Contents for Moxa Technologies VPort 06EC-2V36M
-
Page 1: Quick Installation Guide
VPort 06EC-2V Series Quick Installation Guide Moxa IP Camera Edition 1.0, February 2017 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel:... -
Page 2: Ordering Information
IP video surveillance applications. Ordering Information The following VPort 06EC-2V series models are available: Conformal Model Lens (mm) Temperature Coating VPort 06EC-2V36M -25 to 55°C – VPort 06EC-2V42M -25 to 55°C – VPort 06EC-2V60M -25 to 55°C –... -
Page 3: Product Description
Sticker for camera mounting positions Contents of the Package • Dry pack and Metal M12 cap • Documentation and Software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) • Quick installation guide (printed) • Warranty card NOTE Check the model name on the VPort’s side label to determine if it is the correct one for your order. - Page 4 NOTE To connect the VPort 06EC-2V series to a network, use an Ethernet cable with D-code M12 connector and an M12 PoE switch or RJ45 PoE switch M12 D-code to M12 D-code M12 PoE switch cable (e.g., TN-5508-4PoE) M12 D-code and RJ45 cable RJ45 PoE switch (e.g., EDS-P510) NOTE The power input rating of the PoE part is 48 VDC, 0.2 A, with a...
- Page 5 Inside the Camera Mounting screw holes: There are 4 mounting screw holes for • mounting the VPort 06EC-2V series on the train. Screw for fixing the pan feature of lens: To adjust the pan • feature of the lens, loosen the screw, and then retighten it after you are done with adjusting the position of the lens.
-
Page 6: Hardware Installation
Hardware Installation Step 1: Open and remove the top cover. Use the Hex security screwdriver (with a pin) to loosen the top cover screws and remove the dry pack that is in the top cover. Step 2: Use the markings on the installation sticker to position the drill bit before drilling holes. -
Page 7: Software Installation
Step 4: Loosen the screw for adjusting the horizontal or vertical position of the lens. Once the lens position is correct, fix the screw. Step 5: Loosen the screw containing the dry pack, and place the dry packs on the inside of the top cover to absorb any moisture that might have entered the camera housing during installation. - Page 8 Non DHCP Server Network Environment If your camera is connected to a network that does not have a DHCP server, then you will need to configure the IP address manually. The default IP address of the camera is 192.168.127.100 and the default subnet mask is 255.255.255.0.
- Page 9 Step 5: Access the VPort’s system configuration. Click on System Configuration to access the overview of the system configuration to change the configuration. Model Name, Server Name, IP Address, MAC Address, and Firmware Version appear on the green bar near the top of the page. Use this information to check the system information and installation.
-
Page 10: Wiring Requirements
Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 06EC-2V series. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.
