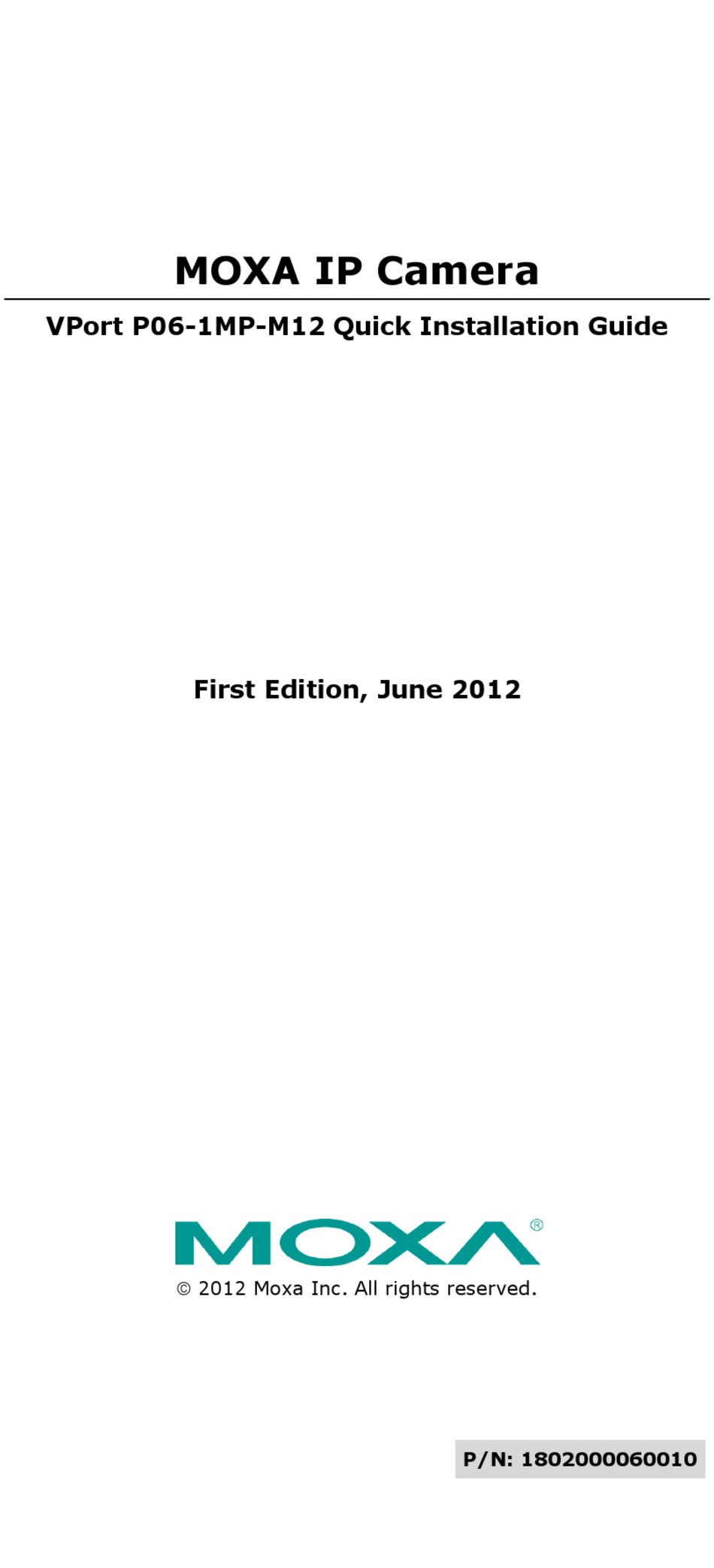

MOXA IP Camera
VPort P06-1MP-M12 Quick Installation Guide
First Edition, June 2012
 2012 Moxa Inc. All rights reserved.
P/N: 1802000060010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPort P06-1MP-M12 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies VPort P06-1MP-M12 series

  • Page 1 MOXA IP Camera VPort P06-1MP-M12 Quick Installation Guide First Edition, June 2012  2012 Moxa Inc. All rights reserved. P/N: 1802000060010...
  • Page 2: Package Checklist

    Overview The VPort P06-1MP-M12 series is a compact, HD (720P, 1280 x 720) video image, H.264/MJPEG IP dome camera designed for mobile video surveillance applications. It features EN 50155 compliance, vandal-proofing (EN 62262 IK8), -25 to 55°C or -40 to 75°C (-T model)
  • Page 3 Quick Installation Guide   Documentation and Software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) Warranty card  NOTE Check the model name on the VPort’s side label to determine if the model name is correct for your order. NOTE This product must be installed in compliance with your local laws and regulations.
  • Page 4: Product Description

    Product Description Appearance • 4-pin A-code M12 Ethernet connector: Can be used for both the PoE power supply (Mode A) and Auto MDI/MDI-X Ethernet connection NOTE To connect the VPort P06-1MP-M12 to a network, use an Ethernet cable with D-code M12 connector and a M12 PoE switch or RJ45 PoE switch M12 D-code to M12 D-code M12 PoE Switch (e.g.,...
  • Page 5 • Lens with fixed focal length: The VPort P06-1MP-M12 series includes models with 3 different focal lengths. Choose the appropriate focal-length lens based on the viewing angle and object distance.
  • Page 6: Hardware Installation

    Calibration for rotating lens (0 to 360°): Rotate the lens to get • the optimal image. When done, mark the position of this calibration for future placement or mass installation. • Calibration for tuning lens’s vertical position (0 to 90°): After tuning the lens’s vertical position, mark the position of this calibration for future placement or mass installation.
  • Page 7 the VPort P06-1MP-M12 on the adaptor with 4 M4 screws, which are provided in the VP-SCO1’s package. c. Mounting with the fixed plate If you cannot use the VP-FP1 nut/gasket/spring-washer set to mount the camera on your ceiling, use the VP-FP1 fixed plate.
  • Page 8 NOTE The screw hole for mounting the VP-FP1 fixed plate is a countersink hole with 5 mm diameter, and 90° 2 x 2 mm chamfer. Take this into consideration when drilling these 2 screw holes. Step 3: Connect the camera with the 4-pin M12 D-code Ethernet connector and RCA male connector.
  • Page 9: Software Installation

    Software Installation Step 1: Configure the VPort P06-1MP-M12’s IP address When the VPort P06-1MP-M12 is first powered on, the POST (Power On Self Test) will run for a few moments (about 30 seconds). The network environment determines how the IP address is assigned. Network Environment with DHCP Server For this network environment, the unit’s IP address will be assigned by the network’s DHCP server.
  • Page 10 NOTE For Windows XP SP2 or above operating systems, the ActiveX Control component will be blocked for system security reasons. In this case, the VPort’s security warning message window may not appear. You should unlock the ActiveX control blocked function or disable the security configuration to enable the installation of the VPort’s ActiveX Control component.
  • Page 11: Wiring Requirements

    Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort P06-1MP-M12. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.
  • Page 12: Specifications

    Top View Camera with SCO1 adaptor Specifications Camera Sensor 1/2.7” HD progressive scan CMOS Lens 3.6, 4.2, 6 mm fixed focal length Angle of view 3.6 mm, F1.6: Diagonal 160°, Horizontal 100°, Vertical 71° 4.2 mm, F1.8: Diagonal 97°, Horizontal 80°, Vertical 58°...
  • Page 13: Physical Characteristics

    Video Resolution and FPS (Frame per second): NTSC Size Max. FPS Size Max. FPS QCIF 176 x 112 176 x 144 352 x 240 352 x 288 640 x 480 640 x 480 4CIF 704 x 480 704 x 576 Full D1 720 x 480 720 x 576...
  • Page 14 Conformal Coating Available on request Regulatory Approvals Safety UL60950-1 FCC Part 15 Subpart B Class A, EN 55022 Class EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8 EN61000-4-11 Rolling Stock EN 50155:2007 compliance (shock, vibration,...
  • Page 15 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: +1-714-528-6777 Tel: +86-21-5258-9955 Fax: +1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 15 -...
