Page 1: Quick Installation Guide

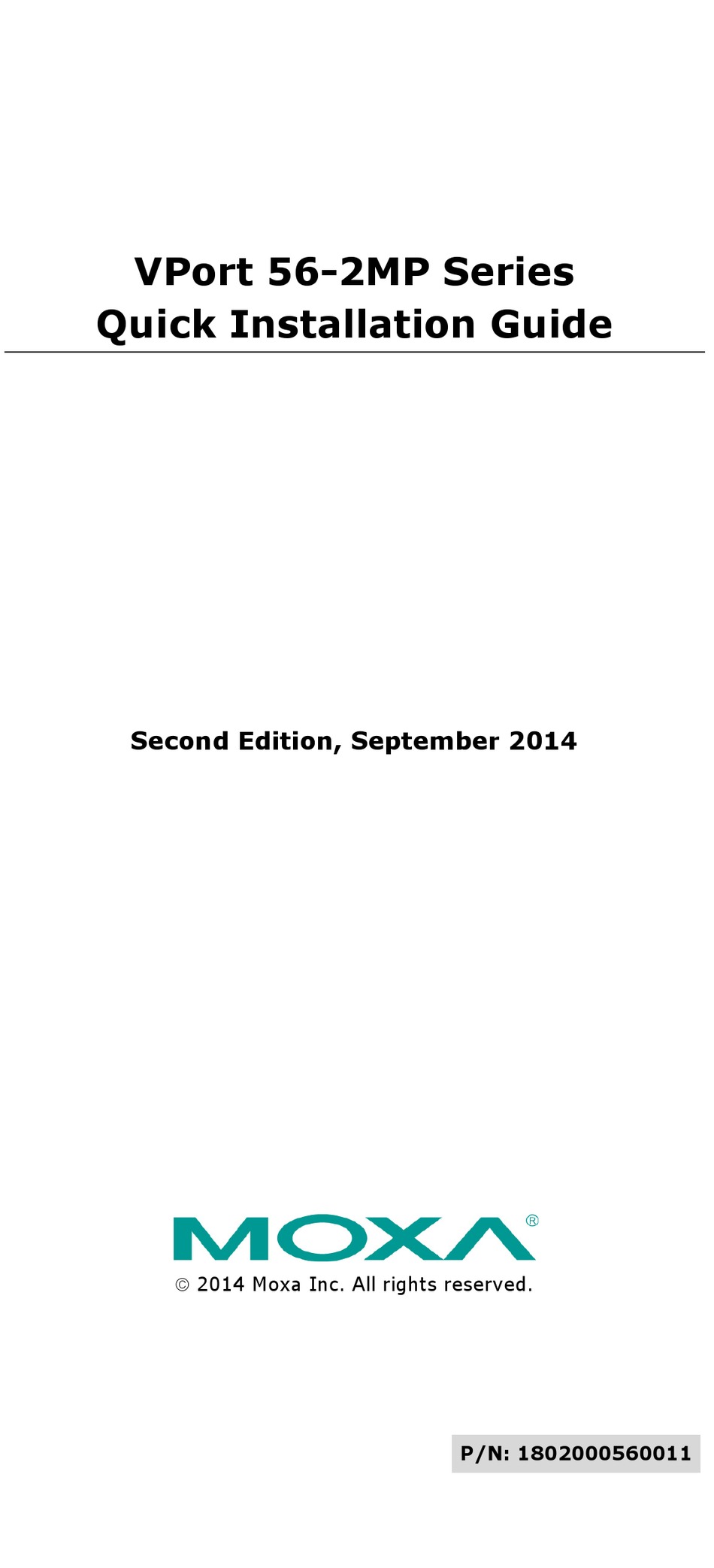

VPort 56-2MP Series Quick Installation Guide Second Edition, September 2014 2014 Moxa Inc. All rights reserved. P/N: 1802000560011... -
Page 2: Package Checklist
Overview The VPort 56-2MP series is the world’s first rugged IP camera that can tolerate environmental temperatures ranging from -40 to 75°C without cooling fan. It is an industrial-grade, H.264 box-type IP camera that combines Full HD resolution (1920 x 1080), 10x optical zoom, and 16x digital zoom to enhance surveillance system efficiency while delivering state-of-the-art video quality. -
Page 3: Specifications
Specifications Camera Sensor: 1/2.5” HD progressive scan CMOS Lens: 6.3 to 63 mm auto focus zoom lens Illumination: • Color: 0.2 lux at F1.8 • B/W: 0.05 lux at F1.8 Synchronization: Internal White Balance: ATW, AWB Electronic Shutter: AES: On/Off Fix: 1/50, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000 sec S/N Ratio: More than 50 dB (AGC off) ICR Control: Auto (light sensor control) or DI control... - Page 4 Serial Interface RS-485: 1 full-duplex RS-485 port GPIO Digital Inputs: 1, max. 8 mA • High: +13 to +30 V • Low: -30 to +3 V Relay Output: 1, max. 24 VDC @ 1 A LED Indicators STAT: Indicates if the system is booted properly or not Network: 10 Mbps or 100 Mbps Power: Power on/off Local Storage...
-
Page 5: Product Description
Warranty Warranty Period: 3 years Details: See www.moxa.com/warranty Product Description Front and Top Panels • SD Card Slot: You can remove the SD card slot cover and insert an SD card for disconnection/event local storage. • Mounting Bracket Screw Hole: Screw holes for fastening the camera to a protective housing. -
Page 6: Software Installation
NOTE The VPort 56-2MP can be powered by a 12 VDC, 24 VDC, or 24 VAC input or Power-over-Ethernet (PoE+, 802.3at). Use an external power supply together with PoE+ for power redundancy. Software Installation Step 1: Configure the VPort 56-2MP’s IP address When the VPort 56-2MP is first powered on, the POST (Power On Self Test) will run for a few moments (about 30 seconds). - Page 7 Step 3: Install the ActiveX Control Plug-in A security warning message will appear the first time you access the VPort’s web-based manager. The message is related to installing the VPort AcitveX Control component on your PC or notebook. Click Yes to install this plug-in to enable the IE web browser for viewing video images.
-
Page 8: Wiring Requirements
For details of each configuration, check the user’s manual on the software Wiring Requirements SAFETY FIRST! • Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 56-2MP. • Calculate the maximum possible current in each power wire and common wire.
