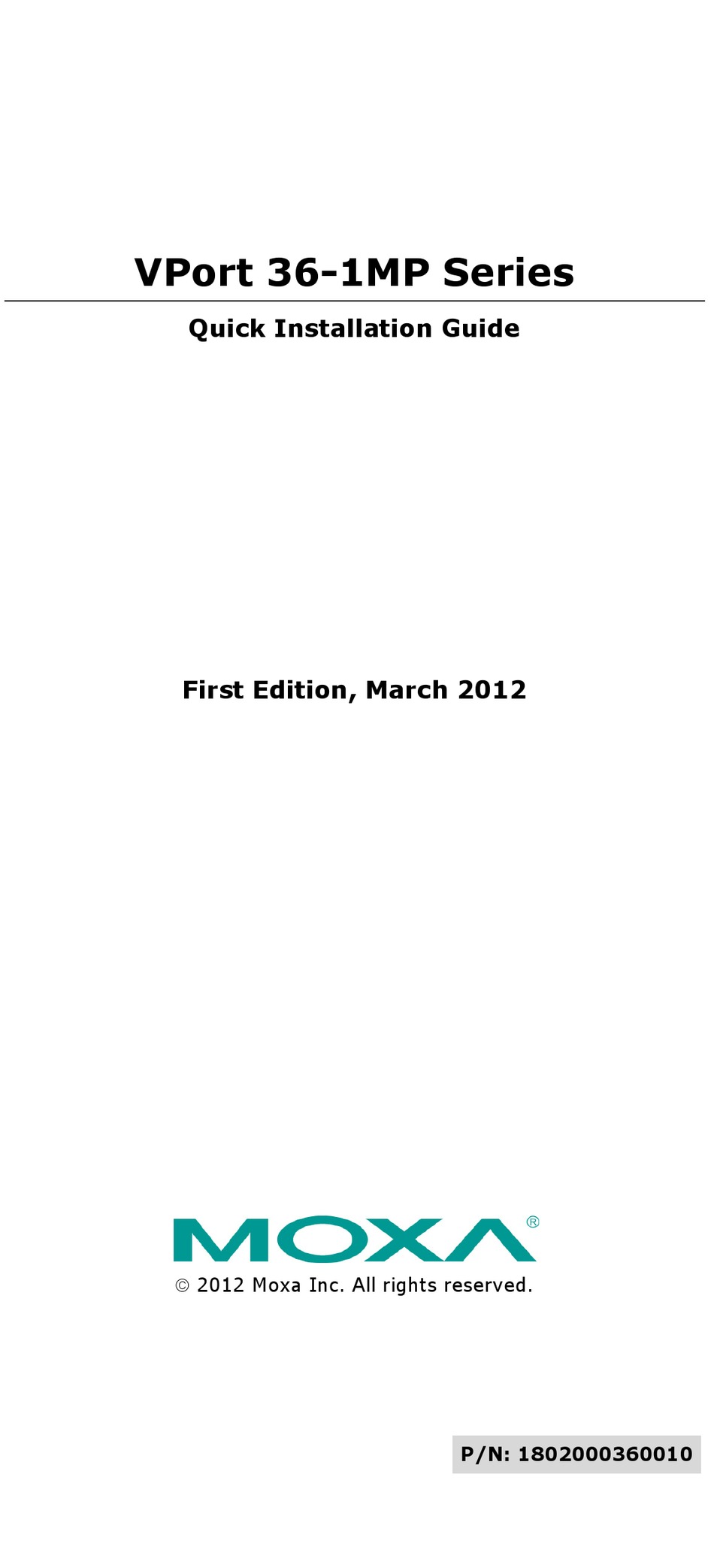

  • Page 1 VPort 36-1MP Series Quick Installation Guide First Edition, March 2012  2012 Moxa Inc. All rights reserved. P/N: 1802000360010...

  • Page 2: Package Checklist

    Advanced video encoding technology enables the camera to support up to 30 fps for each of the H.264 and MJPEG streams. Package Checklist Moxa’s VPort 36-1MP Series is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance.
  • Page 3 • Screw handle accessory package Inner hexagon C/CS mount adapter ring 5-pin terminal block screwdriver for for DI and relay tightening/ loosening lens holder 3-pin terminal block 2-pin terminal block for for power input RS-485 DX+ and DX- • Quick Installation Guide •...
  • Page 4 61000-4-4 (EFT), Level 3 EN 61000-4-5 (Surge), Level 3 EN 61000-4-6 (CS), Level 3 EN 61000-4-8, EN 61000-4-11 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Warranty: 5-year warranty Product Description of the VPort 36-1MP Top View - 4 -...

  • Page 5: Bottom View

    Bottom View NOTE You will find the mounting bracket fastened at the bottom of the camera. You can remove and reposition the bracket to the top of the camera to meet your deployment requirements.. • Auto Iris Socket: Plug auto-iris cable from camera lens to this socket for auto-iris function •...
  • Page 6 7. LED indicator to show power status. Green when normal. NOTE VPort 36-1MP can be powered by 12 VDC / 24 VDC / 24 VAC input or Power over Ethernet (PoE, 802.3af). You can install both to make a redundant power input.

  • Page 7: Hardware Installation

    Hardware Installation Step 1: Remove lens cover Step 2: Loosen the lens holder pressing screw with the L-type inner hexagon screw driver - 7 -...
  • Page 8 Step 6: Power on your VPort 36-1MP NOTE The VPort 36-1MP can be powered by 12 VDC / 24 VDC / 24 VAC input or Power over Ethernet (PoE, 802.3af). You can install both for a redundant power input.

  • Page 9: Software Installation

    Software Installation Step 1: Configure the VPort 36-1MP’s IP address When the VPort 36-1MP is first powered on, the POST (Power On Self Test) will run for a few moments (about 30 seconds). The network environment determines how the IP address is assigned.
  • Page 10 Users should unlock the ActiveX control blocked function or disable the security configuration to enable the installation of the VPort’s ActiveX Control component. Step 4: Access the homepage of the VPort 36-1MP’s web-based manager. After installing the ActiveX Control component, the homepage of the VPort 36-1MP’s web-based manager will appear.

  • Page 11: Wiring Requirements

    ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 36-1MP. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size.
  • Page 12 Range B/W: 110 dB Electronic AES: 1/30 ~ 1/25,000 sec Shutter Fix: 1/50,1/100,1/250,1/500,1/1000,1/2000,1/4000,1/100 00 sec Gamma 0.45 or 1.0, default 0.45 Correction S/N Ratio 50dB (Gamma, Aperture, AGC OFF, DNR ON) ICR control Auto(light sensor control) or DI control Built-in DNR On / Off AGC Control On / Off...

  • Page 13: Serial Interface

    SNMPv1/v2c/v3, DDNS, Modbus/TCP, 802.1X, SSH/SSL Ethernet 1 10/100BaseT(X) Ethernet port, RJ45 connector Standard OnVIF Local Storage SD socket Standard SD socket (SDHC) GPIO Digital input 1, max. 8mA High: +13V to +30V Low: -30 to +3V Relay output 1, max. 24VDC @ 1A Serial Interface RS-485 1 full-duplex RS-485...

  • Page 14: Warranty

    Safety UL60950-1 EN50121-4 NEMA TS2 Class 1 Division 2 (Pending) Atex Zone 2 (Pending) FCC Part 15, CISPR (EN55022) class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8, EN61000-4-11 Shock...
