Summary of Contents for Moxa Technologies VPort 36-1MP

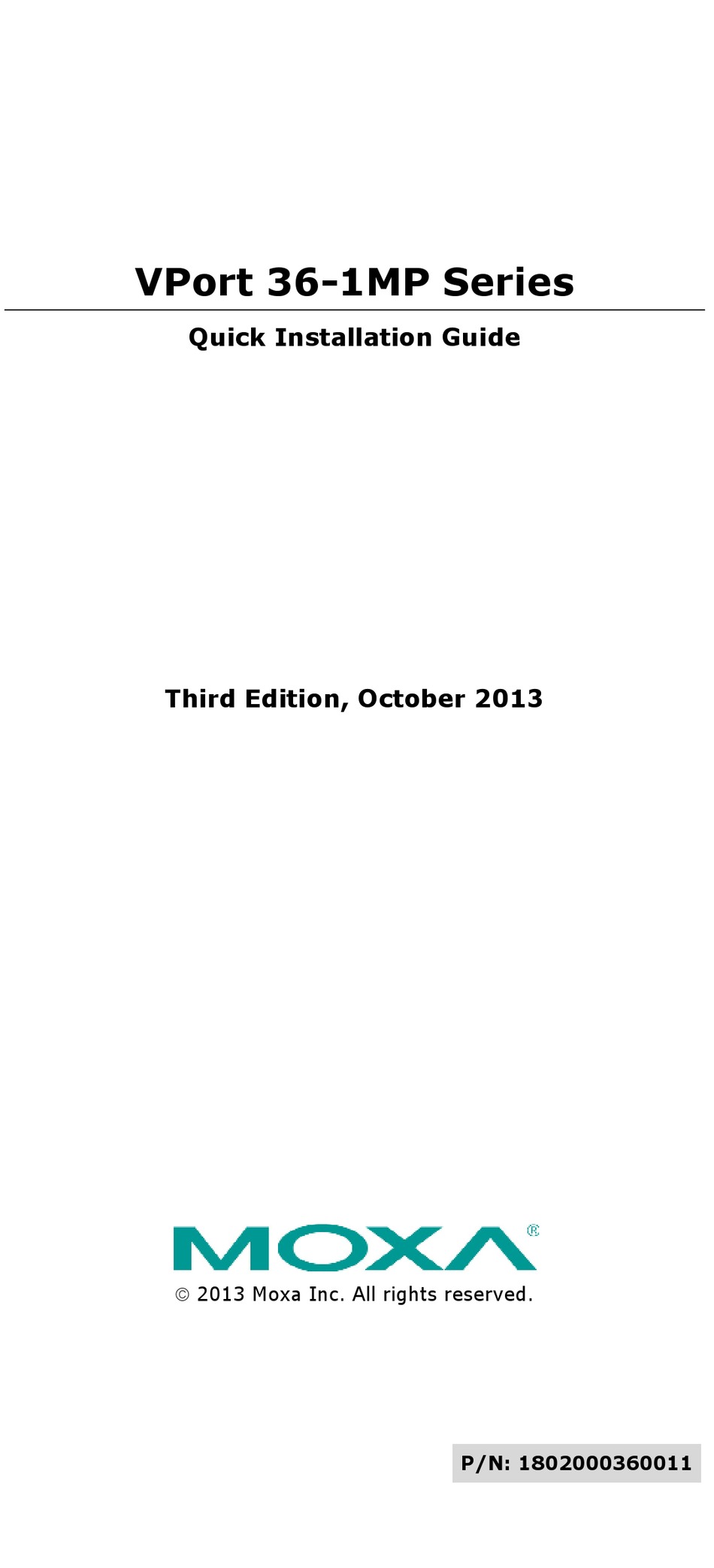

- Page 1 VPort 36-1MP Series Quick Installation Guide Third Edition, October 2013 2013 Moxa Inc. All rights reserved. P/N: 1802000360011...
-
Page 2: Package Checklist
Overview The VPort 36-1MP Series is the world’s first rugged IP camera that can withstand environmental temperatures ranging from -40 to 75°C without a heater or fan. It is an industrial-grade, H.264 box-type IP camera that combines HD resolution (1280 x 720), advanced IVA (Intelligent Video Analysis) technology, and de-mist technology to enhance surveillance system efficiency while delivering state-of-the art video quality. - Page 3 3-pin terminal block 2-pin terminal block for for power input RS-485 DX+ and DX- • Quick installation guide • Documentation & software CD (includes User’s Manual, Quick Installation Guide, and VPort Utility) • Warranty card NOTE Check the model name on the VPort’s side label to determine if the model name is correct for your order.
-
Page 4: Product Description
Video Recording: Event recording stored on the SD card Email/FTP Messaging: Automatic transfer of stored images via email or FTP when alerted Custom Alarms: HTTP event servers for setting customized alarm actions Pre-alarm Buffer: 24 MB video buffer for JPEG snapshot images Advance Software Features: •... - Page 5 7. LED indicator to show power status. Green indicates normal operation. NOTE The VPort 36-1MP can be powered by a 12-32 VDC or 18-30 VAC power input, or Power over Ethernet (PoE, 802.3af). For power redundancy, use DC or AC power together with PoE.
-
Page 6: Hardware Installation
Hardware Installation Step 1: Remove the lens cover. Step 2: Loosen the lens holder screw with the torx screwdriver. Step 3: Remove the lens holder. NOTE Be sure to loosen the screw affixing the lens holder in step 2 before trying to remove the lens holder. The lens holder may be too tight to loosen if the screw is not loosened first. -
Page 7: Software Installation
C mount type lens. Step 6: Power on your VPort 36-1MP. NOTE The VPort 36-1MP can be powered by a 12-32 VDC or 18-30 VAC power input, or Power over Ethernet (PoE, 802.3af). For power redundancy, use DC or AC power together with PoE. - Page 8 VPort’s web-based manager (web server). Non DHCP Server Network Environments If your VPort 36-1MP is connected to a network that does not have a DHCP server, then you will need to configure the IP address manually. The default IP address of the VPort 36-1MP is 192.168.127.100 and the default subnet mask is 255.255.255.0.
- Page 9 Users should unlock the ActiveX control blocked function or disable the security configuration to enable the installation of the VPort’s ActiveX Control component. Step 4: Access the homepage of the VPort 36-1MP’s web-based manager. After installing the ActiveX Control component, the homepage of the VPort 36-1MP’s web-based manager will appear.
-
Page 10: Wiring Requirements
Wiring Requirements Safety First! • Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 36-1MP. • Calculate the maximum possible current in each power wire and common wire, and observe all electrical codes dictating the maximum current allowable for each wire size. - Page 11 Video Video Compression H.264 (ISO/IEC 14496-10) or MJPEG Video Output Via Ethernet Video Streams Maximum of 3 video streams (2x H.264 and 1x MJPEG) Stream 1: H.264, max. resolution 1280x720 Stream 2: H.264, max. resolution 720x480 Stream 3: MJPEG, max. resolution 720x480 Note: Streams 2 and 3 must be the same resolution.
- Page 12 Physical Characteristics Housing Metal housing, IP30 rated Dimensions 78 x 65 x 150 mm Installation Wall mounting, ceiling mounting, pole mounting, corner mounting (You may need to purchase external housing and/or mounting accessories separately.) Security Password User level password protection Filtering By IP address Authentication...
- Page 13 Minimum Viewing System Requirements CPU: Pentium 4, 2.4 GHz Memory: 512 MB of memory OS: Windows XP/2000 with SP4 or above, Windows Vista, Windows 7 Browser: Internet Explorer 6.x or above Multimedia: DirectX 9.0c or above Software Utility VPort SDK PLUS Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third third-party developers (the...
