Summary of Contents for Moxa Technologies VPort 16-M12 Series
-

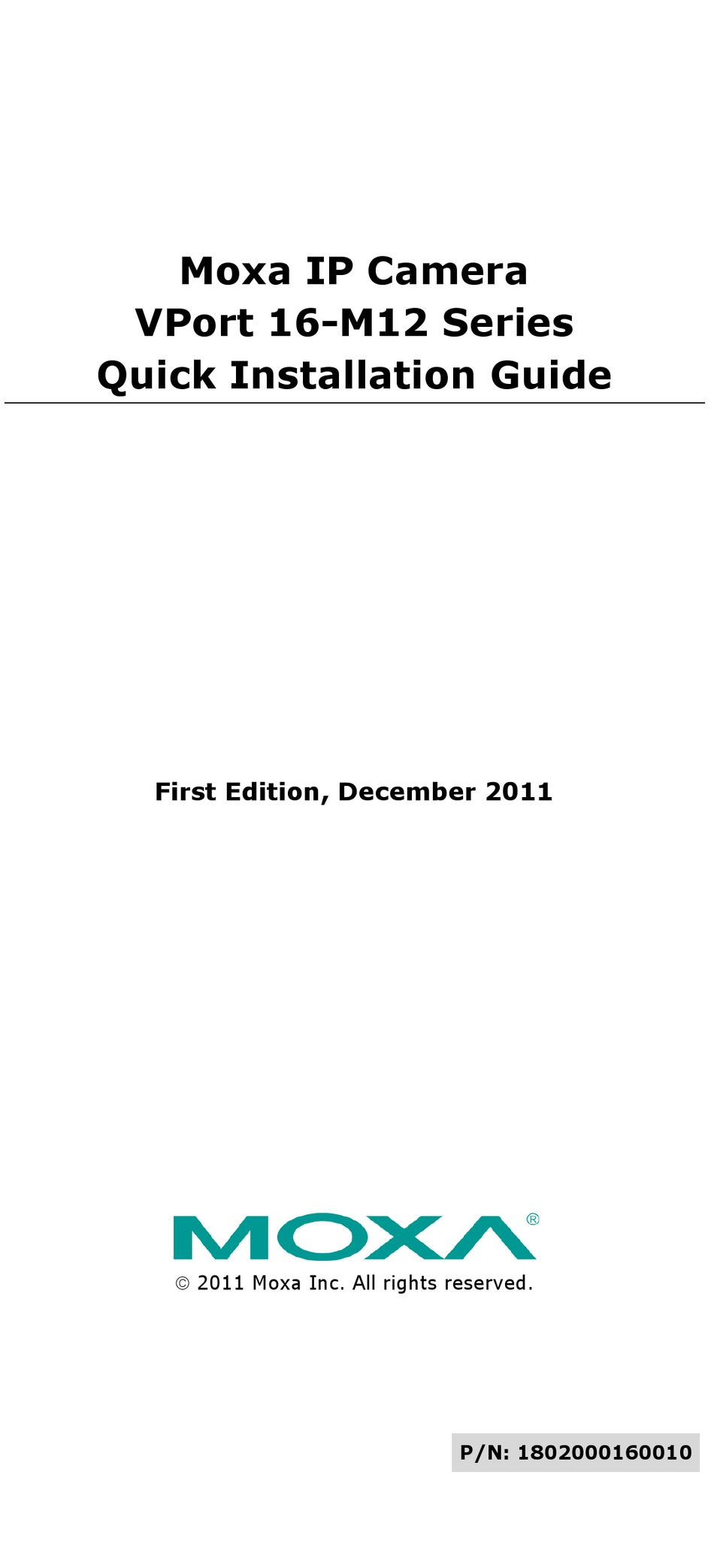

Page 1: Quick Installation Guide
Moxa IP Camera VPort 16-M12 Series Quick Installation Guide First Edition, December 2011 2011 Moxa Inc. All rights reserved. P/N: 1802000160010... -
Page 2: Package Checklist
Overview The VPort 16-M12 is a compact, fixed-IP camera with EN 50155:2007 compliance that is specially designed for rolling stock CCTV applications. In addition to the -25 to 55°C operating temperature, IP66 rain and dust protection, anti-vibration M12 Ethernet connector, Power-over-Ethernet (PoE), and metal housing with glass lens cover, the VPort 16-M12 also has a built-in dehumidifying membrane for dissipating moisture trapped inside the camera and keeping other moisture out. - Page 3 VPort 16-M12- VPort 16-DO-M12- 16mm CAM3L54160N CAM3L54160N VPort 16-M12- VPort 16-DO-M12- 16mm CAM3L54160P CAM3L54160P • Screw handle accessory package Torx screw driver for 4 sets of nut, gasket and 4 Nylock flush mount attaching/detaching spring washer for top cover screws for the upper case mouting the camera mounting the top cover...
- Page 4 Features • 1/3” CCD image sensor • Built-in 3D-Dinterlace for progressive video image • Camera supports White Balance (ATW/AWC), 3DNR (3D Digital Noise Reduce), AGC, Slow shutter, AES (Automatic Electrical Shutter) and BLC (Back Light compensation) • Minimum illumination is up to 0.02 lux (color) •...
- Page 5 Product Description of the VPort 16-M12 Appearance Mounting screw: there are four nylock M4 screws for mounting the • VPort 16-M12 on the wall or ceiling; the external length is about 20mm. These 4 mounting screws can work with the 4 sets of nut, gasket and spring washer, or directly mount on the screw hole.
- Page 6 Top View Top cover torx screw: To remove the top cover, you can use an L • type torx screw driver. • Rotatable plate: this plate can be turned manually to fix the horizontal lens position. Side View Calibration for tuning lens’s vertical position (0 to 90°): After •...
-
Page 7: Bottom View
PoE power supply (Mode A) and Auto MDI/MDI-X Ethernet connection. NOTE To connect the VPort 16-M12 series to the network, you need to use an Ethernet cable with a D-code M12 connector and a M12 PoE switch or RJ45 PoE switch. - Page 8 NOTE The equipment is designed for in building installation only and is not intended to be connected to exposed (outside plant) networks. • Reset button: loosen the screw and use a pointed stick to push down the reset button to reboot or factor default. Reboot: press the button onece.
-
Page 9: Hardware Installation
Hardware Installation Step 1: Open and remove the upper case. Use the security Torx to loosen the upper case screws. Step 2: Use the installation sticker for drilling the holes (gray color for panel mounting, and green color for flush mounting). Step 3: Put VPort 16-M12 on the holes Panel Mount Flush Mount... -
Page 10: Software Installation
Step 4: Loosen the screws of horizontal and vertical lens position. Then tune the camera lens position by using the marked calibration or connecting to the VPort 16-M12’s web console for viewing the video image. After the lens position is correct, fix the screws. - Page 11 2. When the search has concluded, the Model Name, MAC address, IP address, serial port, and HTTP port of the VPort will be listed in the utility’s window. 3. Users can double click the selected VPort, or use the IE web browser to access the VPort’s web-based manager (web server).
- Page 12 NOTE For Windows XP SP2 or above operating systems, the ActiveX Control component will be blocked for system security reasons. In this case, the VPort’s security warning message window may not appear. Users should unlock the ActiveX control blocked function or disable the security configuration to enable the installation of the VPort’s ActiveX Control component.
-
Page 13: Wiring Requirements
Wiring Requirements ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 16-M12. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment. -
Page 14: Specifications
Side View Side View (Dome Model) Specifications Camera Sensor 1/3” CCD Lens 3, 3.6, 6, 8, and 16 mm fixed focal length Angle of view 3.0 mm / F2.0: 120° 3.6 mm / F2.0: 92° 6.0 mm / F1.8: 53° 8.0 mm / F2.0: 40°... -
Page 15: Physical Characteristics
Video Resolution and FPS (Frame per second): NTSC Size Max. FPS Size Max. FPS QCIF 176 x 112 176 x 144 352 x 240 352 x 288 640 x 480 640 x 480 4CIF 704 x 480 704 x 576 Full D1 720 x 480 720 x 576... - Page 16 Regulatory Approvals Safety UL60950-1 FCC Part 15 Subpart B Class A, EN 55022 Class A EN61000-4-2 (ESD), Level 3 EN61000-4-3 (RS), Level 3 EN61000-4-4 (EFT), Level 3 EN61000-4-5 (Surge), Level 3 EN61000-4-6 (CS), Level 3 EN61000-4-8 EN61000-4-11 Rolling Stock EN 50155:2007 compliance (shock, vibration, temperature, EMC) Shock IEC60068-2-27...
- Page 17 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 17 -...
