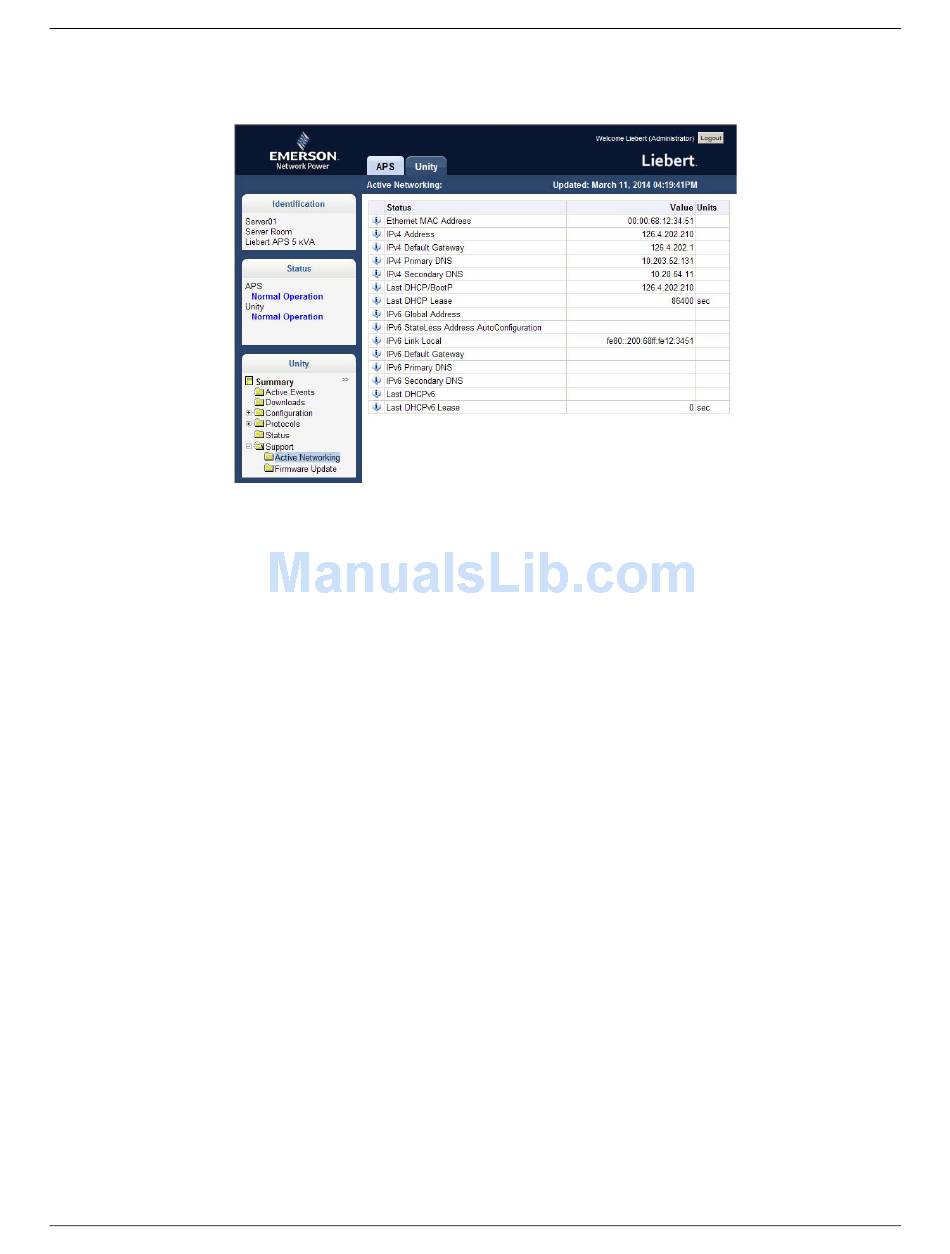

5.11.1 Unity Tab-Support Folder—Active Networking
Status of the currently active IP network settings for the Liebert IntelliSlot Unity card along with
some previous values for troubleshooting IP communication issues.
Active Networking
• Ethernet MAC Address—Ethernet MAC Address for the Liebert IntelliSlot card
• IPv4 Address—Presently used IPv4 network address
• IPv4 Default Gateway—Presently used IPv4 network address of the gateway for network traffic
destined for other networks or subnets
• IPv4 Primary DNS—Presently used IPv4 Primary DNS
• IPv4 Secondary DNS—Presently used IPv4 Secondary DNS
• Last DHCP/BootP—Last known IPv4 address assigned by DHCP
• Last DHCP Lease—Lease time of last known DHCP address
• IPv6 Global Address—Shows if DHCPv6 or Static address is presently being used
• IPv6 StateLess Address AutoConfiguration—IPv6 SLAAC is assigned automatically from Router
Advertisement, if "A" flag is
• set, combining Prefix with EUI-64 MAC
• IPv6 Link Local—Presently used IPv6 Link Local Address
• IPv6 Default Gateway—Presently used IPv6 network address of the gateway for network traffic
destined for other networks or subnets
• IPv6 Primary DNS—IPv6 Primary DNS
• IPv6 Secondary DNS
• IPv6 Secondary DNS
• Last DHCPv6—Last known IPv6 address assigned by DHCPv6
• Last DHCPv6 Lease—Lease time of last known DHCPv6 address
® ®
Liebert IntelliSlot Unity
™
Card
Edit the Liebert IntelliSlot Unity Card Configuration
