Emerson SITETPI-E V3 Product Specification/Installation Sheet

S TPI-E
ITE V
Product Specification/Installation Sheet
Description
The Liebert SiteTPI-E is an Ethernet-
ready device intended to interface
specifically to a SiteScan Web system.
It is a 32-bit microprocessor-based
device designed to monitor third-party
equipment via an EIA-485/232
Modbus interface.
Logically the device sits on the
Ethernet network, providing the
interface to SiteScan Web. This
effectively creates a router/gateway
and third-party interface in a single
device. Screw terminal blocks are
provided to terminate power,
communication and input signal
wiring.

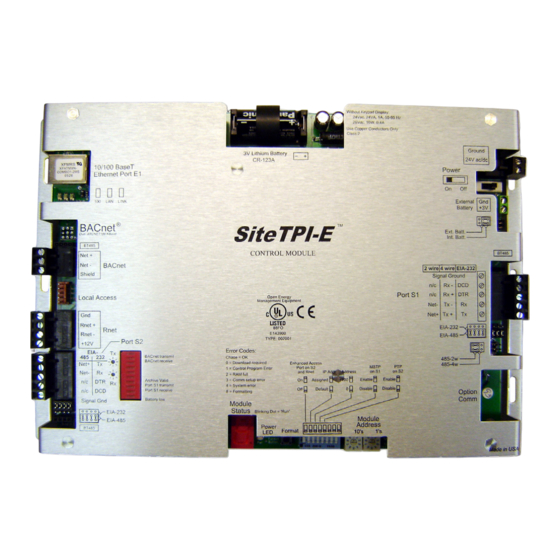

Module Dimensions and Layout
Ethernet
port
BACnet
port
Local access
port
Rnet port
Port S2
3
10/100 BaseT
Ethernet Port E1
100 LAN LINK
®
BACnet
Over ARCNET156 KBaud
BT485
Net +
Net - BACnet
Shield
Local Access
Gnd
Rnet +
Rnet
Rnet -
Port S2
+12V
Error Codes:
EIA-
Tx
485 232
BACnet transmit
Chase = OK
BACnet receive
0 = Download required
Net+ Tx
1 = Control Program Error
Net- Rx
2 = RAM full
Archive Valid 3 = Comm setup error
n/c DTR
Rx
Port S1 transmit
4 = System error
Port S1 receive
n/c DCD 8 = Formatting
Battery low
Signal Gnd
Module
Status
EIA-232
EIA-485
BT485
Diagnostic
LED indicators
11.295"
(286.9mm)
Power
connector
Without Keypad Display:
24Vac, 24VA, 1A, 50-60 Hz
26Vdc, 10W, 0.4A
Use Copper Conductors Only
Class 2
3V Lithium Battery
CR-123A
™
SiteTPI-E
CONTROL MODULE
Port S1
Open Energy
Management Equipment
R
88FO
E143900
TYPE: 002001
Enhanced Access
Port on S2 MSTP PTP
and Rnet IP Addr Address on S1 on S2
On Assigned +100 Enable Enable
Off Default 0 Disable Disable
Blinking Dot = 'Run'
Module
Address
Power
Format
LED 10's 1's
1
0.23"
(5.8mm)
1.25"
(32mm)
Ground
24V ac/dc
Power
On Off
External Gnd
2.5"
Battery +3V
(64mm)
Ext. Batt.
Int. Batt.
BT485
2 wire 4 wire EIA-232
Signal Ground
n/c Rx - DCD
n/c Rx + DTR
Net- Tx - Rx
Net+ Tx + Tx
2.5"
EIA-232
EIA-485
(64mm)
485-2w
485-4w
Option
Comm
1.25"
(32mm)
Made in USA
Options
Port S1
comm
7.5"
(190.5mm)
