Summary of Contents for Emerson Liebert IntelliSlot Unity-DP

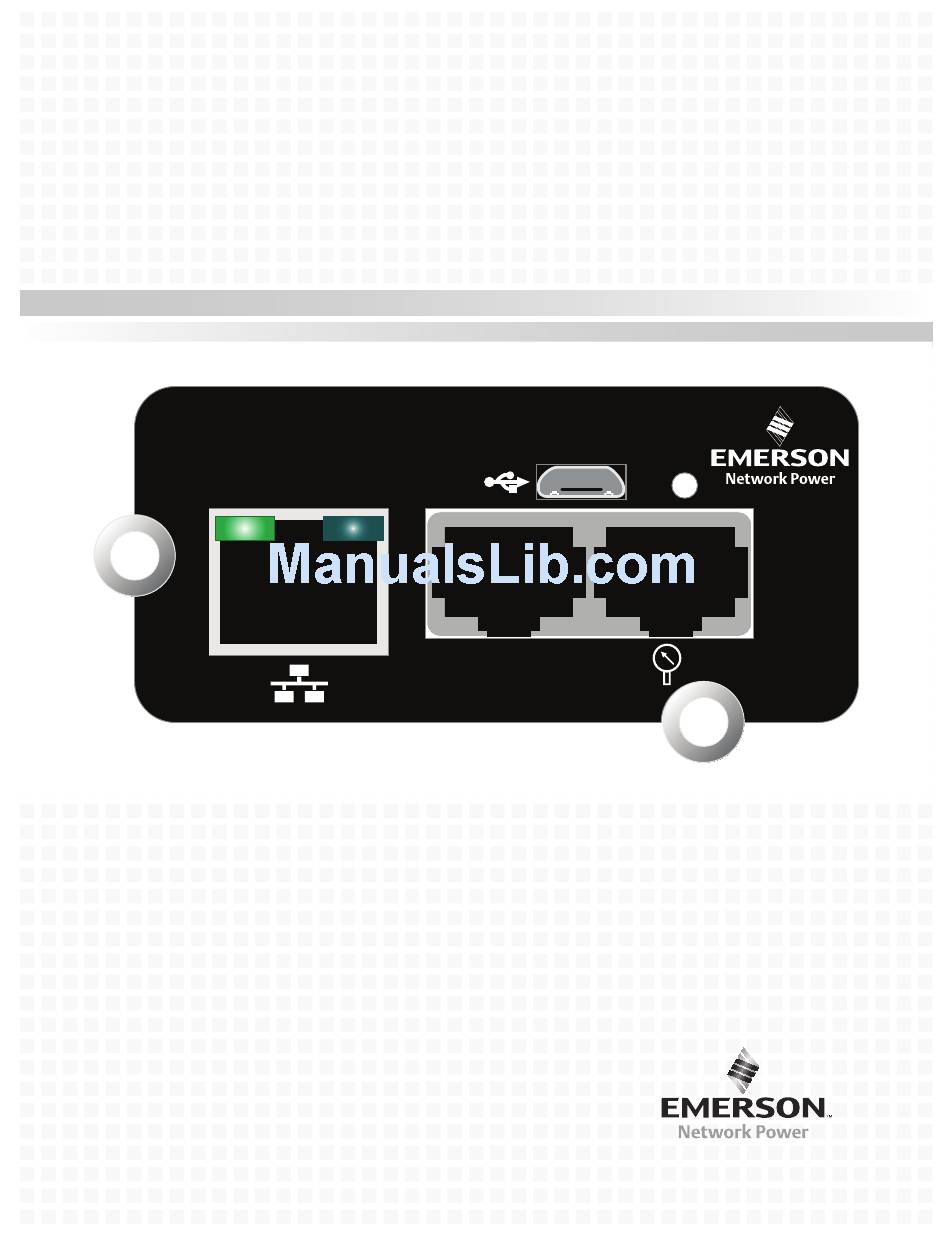

- Page 1 Liebert IntelliSlot Unity Card ® ® User Manual–Web, SNMP, Modbus, BACnet, YDN23 IS-UNITY-DP Link Activity...
-
Page 3: Table Of Contents
Configuration Folder—Emerson Protocol ........ - Page 4 Liebert IntelliSlot Unity-DP card features ........
-
Page 5: Important Safety Instructions
NSTRUCTIONS SAVE THESE INSTRUCTIONS WARNING Risk of improper installation. Can cause equipment damage, injury or death. Only a qualified service professional should install these products. Emerson recommends having an Emerson Network Power ® Liebert Services representative perform the installation in large UPS’s. Contact Liebert Services at 1-800-LIEBERT (1-800-543-2378). -
Page 6: Introduction
™ ™ Each card employs the Emerson Protocol to monitor and manage a wide range of operating parameters, alarms and notifications about the power, distribution and Thermal Management equipment. The cards also communicate with Building Management Systems and Network Management Systems. -
Page 7: Compatibility With Other Emerson Products And Communication Protocols
, Liebert PCW /PDX , Liebert PeX *, Liebert XDC , Liebert XDP , Liebert ™ XDP-Cray The Liebert IntelliSlot Unity-DP platform supports the following protocols: Table 2 Liebert IntelliSlot card communication protocols Communication Protocols Available Remote Service Liebert IntelliSlot HTTP... - Page 8 ™ Trellis Support The Liebert IntelliSlot Unity-DP card communicates a rich set of Emerson Protocol information to the Trellis DCIM platform. Trellis can manage and control Liebert equipment using SNMP, Modbus or the Emerson Protocol. This allows monitoring all Liebert equipment using Liebert IntelliSlot Web, Liebert IntelliSlot 485, Liebert IntelliSlot IPBML, Liebert IntelliSlot Web ADPT or Liebert IntelliSlot Unity platform communication interfaces.
-
Page 9: Installation
WARNING Risk of improper installation. Can cause equipment damage, injury and death. Only a properly trained and qualified service professional should install these products. Emerson recommends having an Emerson Network Power Liebert Services representative ® perform the installation in large UPS’s. Contact Liebert Services at 1-800-LIEBERT (1-800-543-2378). -
Page 10: Connect An Ethernet Cable
Installation Unity Tab Last DHCP Address Support>Active Networking Static IP To assign a static IP address, use the Ethernet connection to configure the card. Proceed to 2.1.2 - Connect an Ethernet Cable and 2.2 - Change User Names and Passwords Immediately. 2.1.2 Connect an Ethernet Cable 1. -
Page 11: Connect An Rs-485 Serial Cable
6. Plug the cable into the 485 RJ-45 port on the Liebert IntelliSlot Unity card. Change User Names and Passwords Immediately Emerson recommends changing the administrative user name and password immediately to safeguard protected configuration and control areas of the Liebert IntelliSlot Unity card. -
Page 12: Configure The Card
Installation Figure 3 Change administrator and general user names and passwords Administrator User Name and Password General User Name and Password Configure the Card The Liebert IntelliSlot Unity card requires minor configuration, such as choosing the IP/Web communication interface, serial RS-485 communication interface, or both. The default for IP/Web communication is IPv4, but this can be changed to IPv6 for greater security;... -
Page 13: Installing Multiple Liebert Intellislot Unity Cards In A System
If the first and second cards are both Liebert IntelliSlot Unity cards, steps must be taken to avoid duplicate Emerson Protocol MSTP node ID’s. By default, the two cards would use the same node ID, and one or both cards would report a duplicate node error and fail to communicate with the system. -
Page 14: Enable Communication Protocols
Enable Communication Protocols NABLE OMMUNICATION ROTOCOLS The Liebert IntelliSlot Unity card will communicate with equipment and third-party systems over these protocols: • BACnet IP • BACnet MSTP • Modbus TCP • Modbus RTU • SNMP • YDN23 NOTE Only two of the protocols may be enabled on one card. •... -
Page 15: Enable Modbus Protocol
Enable Communication Protocols Figure 5 Enable protocols; enable commands Enable Protocols Enable Commands (Support folder) 3.1.1 Enable Modbus Protocol Protocols may be enabled after a card has been installed and configured. To enable Modbus protocol: 1. Select Unity Tab > Protocols > Modbus. 2. -
Page 16: Figure 6 Modbus Tcp-Trusted Ip List
Enable Communication Protocols Figure 6 Modbus TCP-Trusted IP List ... brings up a screen where this information may be entered. Clicking on one of the five Trusted IP List folders ... Configure Modbus RTU 1. Select the Unity Tab > Protocols > Modbus RTU. 2. -
Page 17: Enable Bacnet Protocol
Enable Communication Protocols Figure 7 Modbus-RS-485 Node ID must be unique on the RS-485 bus this card is connected to. 3.1.2 Enable BACnet Protocol Contact your system administrator or building management system administrator if you are uncertain about the settings. 1. -
Page 18: Figure 8 Bacnet Protocol Settings
Enable Communication Protocols Figure 8 BACnet protocol settings Configure BACnet IP Protocol Contact your system administrator if you are uncertain about the settings. 1. Select Unity Tab > Protocols > BACnet IP. 2. Click on Edit and enter a User name and password if required. 3. -
Page 19: Figure 9 Bacnet Ip Settings
Enable Communication Protocols Figure 9 BACnet IP settings Configure BACnet MSTP Protocol Contact your system administrator if you are uncertain about the settings. 1. Select Unity Tab > Protocols > BACnet MSTP. 2. Click on Edit and enter a user name and password if required. 3. -
Page 20: Enable Snmp
Enable Communication Protocols Figure 10 BACnet MSTP settings 3.1.3 Enable SNMP SNMPv1/v2c and SNMPv3 are enabled by default. The protocols may be configured or their default values may be accepted. Authentication Traps are not enabled by default. The default Heartbeat Trap interval is 24 hours;... -
Page 21: Figure 11 Snmp Settings
Enable Communication Protocols Figure 11 SNMP settings Configure SNMP Settings SNMPv3 Users or SNMPv1/v2c Trap and Access settings must be made before SNMP access or notifications can occur. The Liebert IntelliSlot Unity card permits up to 20 SNMPv3 Users, up to 20 SNMPv1 Trap targets, and up to 20 SNMPv1/v2c Access addresses. -
Page 22: Figure 12 Snmpv3 User Settings
Enable Communication Protocols Figure 12 SNMPv3 user settings Settings are required for each user Configure SNMPv1 Trap Settings 1. Select Unity Tab > Protocols > SNMP > SNMPv1 Trap Settings (20). 2. Click on Edit and enter a User name and password if required. 3. -
Page 23: Figure 13 Snmpv1 Trap Settings
Enable Communication Protocols Figure 13 SNMPv1 trap settings Settings required for each address that will receive SNMP notifications. ® ® ™ Liebert IntelliSlot Unity Card... -
Page 24: Figure 14 Snmpv1/V2C Access Settings
Enable Communication Protocols Configure SNMPv1/v2c Access Settings 1. Select Unity Tab > Protocols > SNMP > SNMPv1/v2c Access Settings (20) > SNMPv1/v2c Access Settings (1). 2. Click on Edit and enter a User name and password if required. 3. Enter the information and set the permissions appropriate to the user. Refer to Figure 13 for the information required. -
Page 25: Liebert Intelli Slot Unity Card Web
Liebert IntelliSlot Unity Card Web Page Layout IEBERT NTELLI NITY AYOUT Default settings in the Liebert IntelliSlot Unity card permit using it immediately after installation to monitor the equipment the card is installed in. The Web interface permits customizing the information to ease monitoring the equipment and troubleshooting problems. -
Page 26: Figure 15 Web Page Sections, Ups Example
Liebert IntelliSlot Unity Card Web Page Layout Figure 15 Web page sections, UPS example Managed Equipment Tab Unity Tab Card in a Liebert APM Information on Opening Screen Identification depends on type of unit being monitored Status Tab Menu (changes according to monitored equipment) -
Page 27: Help Text
Liebert IntelliSlot Unity Card Web Page Layout Help Text Each Web page shown by the Liebert IntelliSlot Unity-DP card has informational text that is revealed by hovering a mouse pointer over the icon to the left of the Status, Events or Settings row, as shown below. -
Page 28: Managed Equipment Tab Menus
Liebert IntelliSlot Unity Card Web Page Layout Managed Equipment Tab Menus Menus on the Managed Equipment tab list only data that is relevant to the equipment being monitored. For example, menus shown by a Liebert IntelliSlot Unity card installed in a UPS differ from menus shown by a card installed in Thermal Management equipment. -
Page 29: Unity Tab Menus
42 be reconfigured configuration changes; restart is performed RS-485 Port Conflict only from the Support Folder Duplicate Emerson Protocol MSTP Node ID Duplicate BACnet MSTP Node ID Support Agent time and Date Agent Model Agent App Firmware Version... -
Page 30: Edit The Liebert Intelli Slot Unity Card Configuration
Edit the Liebert IntelliSlot Unity Card Configuration DIT THE IEBERT NTELLI NITY ONFIGURATION The Web-based interface can be used to change settings for the Liebert IntelliSlot Unity card and for the monitored equipment. The following steps apply to making changes in all sections of the Liebert IntelliSlot Unity card. -
Page 31: Web Page Unity Tab Folders
(the Edit button is grayed out). The Configuration folder contains seven subfolders: • System • User Settings • Network Settings • Web Server Settings • LIFE ™ • Emerson Protocol • Messaging Settings ® ® ™ Liebert IntelliSlot Unity Card... -
Page 32: Configuration Folder-System
Edit the Liebert IntelliSlot Unity Card Configuration 5.3.1 Configuration Folder—System The System subfolder displays general information about the monitored and managed equipment and the display of some data. Refer to Figure 20. The data displayed is set by the user and can assist in troubleshooting. -
Page 33: Configuration Folder-Network Settings
Edit the Liebert IntelliSlot Unity Card Configuration 5.3.3 Configuration Folder—Network Settings The top level of the Network Settings subfolder displays: • Speed Duplex • Domain Name Suffix List The Speed Duplex item selects the speed and duplex configuration of the card’s Ethernet port. It is set to Auto by default. -
Page 34: Configuration Folder-Web Server Settings
Edit the Liebert IntelliSlot Unity Card Configuration IPv6 Settings • IPv6 Protocol—Enables IPv6 in the card. • Boot Mode—Mode the card boots into to be a network ready device (Static, Auto) • Card IP Address—Network address for the interface. • Prefix Length—Prefix length for the address that divides a network into manageable segments. •... -
Page 35: Configuration Folder-Life
5.3.5 Configuration Folder—LIFE The LIFE subfolder contains settings that affect use of the Emerson® LIFE Technology, a remote monitoring and diagnostic service for Emerson Network Power units. The LIFE settings are for use by trained Emerson Network Power personnel only and require no user changes. For information ™... -
Page 36: Sms Settings
Edit the Liebert IntelliSlot Unity Card Configuration Email Settings • Email From Address—Sender’s email address. In most cases this will be the email address of the person to whom replies should be sent. Example Support@company.com • Email To Address—Email address of the recipient. Multiple email addresses should be separated by a semicolon. -
Page 37: Messaging Test
Edit the Liebert IntelliSlot Unity Card Configuration SMS Settings • SMS From Address—Sender’s SMS address. In most cases this will be the SMS address of the person to whom replies should be sent. For example: Support@company.com • SMS To Address—SMS address of the recipient. Multiple SMS addresses should be separated by a semicolon Note: The maximum length for an SMS address entry is 64 characters. -
Page 38: Unity Tab-Protocols
Not all protocols are available at the same time. Some protocols may not be available for some types of managed devices (see 1.2 - Compatibility With Other Emerson Products and Communication Protocols). The Liebert IntelliSlot Unity card allows selecting two third-party protocols. -
Page 39: Protocols Folder-Bacnet Ip Folder
Edit the Liebert IntelliSlot Unity Card Configuration 5.6.1 Protocols Folder—BACnet IP Folder BACnet IP Settings • BACnet IP Port Number—The port for the BACnet server's UDP/IP connection. • Register as Foreign Device—Enable or Disable registration as a foreign device. • IP Address of BBMD—IP Address of the BACnet Broadcast Management Device (BBMD) to be accessed for Foreign Device Registration •... -
Page 40: Modbus Tcp
Edit the Liebert IntelliSlot Unity Card Configuration 5.7.1 Modbus TCP The Modbus TCP permits connection to the card by: • any client (Open) permits communication by any IP address • clients on the same subnet as the Liebert IntelliSlot Unity card •... -
Page 41: Protocols Folder-Snmp Subfolder
Edit the Liebert IntelliSlot Unity Card Configuration Protocols Folder—SNMP Subfolder Folders and settings in this folder permit configuring the card for various types of SNMP communication, including access, traps and other user settings. SNMP Settings • SNMPv3 Engine ID—The SNMPv3 engine ID; assigned automatically •... -
Page 42: Snmpv3 User Settings
Edit the Liebert IntelliSlot Unity Card Configuration 5.8.1 SNMPv3 User Settings The Liebert IntelliSlot-Unity card supports up to 20 SNMPv3 users. The top level page has a table with settings for all 20. The page displays a link to edit the table columns displayed for each SNMPv3 user. -
Page 43: Edit The Snmpv3 Table
Edit the Liebert IntelliSlot Unity Card Configuration 5.8.2 Edit the SNMPv3 Table The table on the SNMPv3 User Settings [20] page may be altered to provide more or less information. To do so, click on the command above the table (Click here to edit columns displayed in this table). Put a check mark (✔) in the boxes beside the desired information (see Figure 23). -
Page 44: Snmpv1 Trap Settings
Edit the Liebert IntelliSlot Unity Card Configuration 5.8.3 SNMPv1 Trap Settings This page contains settings for network hosts that will receive SNMPv1 traps. Up to 20 trap recipients can be enabled and configured. Like the SNMPv3 pages, the setting for each target may be reached by clicking on the links in the Detail portion of the page or by clicking on the folders for the trap targets. -
Page 45: Snmpv1/V2C Access Settings
Edit the Liebert IntelliSlot Unity Card Configuration 5.8.4 SNMPv1/v2c Access Settings This page contains settings for network hosts that can access data using SNMPv1/v2c. Up to 20 access hosts can be enabled and configured. Like the SNMPv3 pages, the setting for each host may be reached by clicking on the links in the data portion of the page or by clicking on the folders for the access hosts. -
Page 46: Protocols Folder-Ydn23 Protocol
Edit the Liebert IntelliSlot Unity Card Configuration Protocols Folder—YDN23 Protocol The YDN23 protocol supported is based on the YD-T-1363 specification using an RS-485 network connection. YDN23 Protocol • Managed Device Write Access—Enable or Disable the YDN23 server to write to the managed device. -
Page 47: Configuration-Unity Tab-Support Folder
• FDM Version—The card’s FDM version; the FDM is a data model document that defines data supported by devices that use the Emerson Protocol. • Product Sequence ID—The card’s product sequence identifier Commands - Enable/Cancel •... -
Page 48: 5.11.1 Unity Tab-Support Folder-Active Networking
Edit the Liebert IntelliSlot Unity Card Configuration 5.11.1 Unity Tab-Support Folder—Active Networking Status of the currently active IP network settings for the Liebert IntelliSlot Unity card along with some previous values for troubleshooting IP communication issues. Active Networking • Ethernet MAC Address—Ethernet MAC Address for the Liebert IntelliSlot card •... -
Page 49: 5.11.2 Unity Tab-Support Folder-Firmware Update
Edit the Liebert IntelliSlot Unity Card Configuration 5.11.2 Unity Tab-Support Folder—Firmware Update The Firmware Update folder supports updating the firmware of the Liebert IntelliSlot Unity card or reverting to an alternate firmware version and configuration (if the current firmware is not the initial load). -
Page 50: Firmware
Firmware Updates IRMWARE PDATES The Liebert IntelliSlot Unity card has two areas in flash memory for the firmware and the configuration. One area is currently operating on the card. The other area is the previous firmware on the card and is considered an alternate. For information on the alternate firmware, see 6.2 - Revert to Alternate Firmware. -
Page 51: Figure 25 Firmware Update Screen
Firmware Updates Figure 25 Firmware update screen Enable Button Web button becomes active when enabled and administrator’s user name and password are entered Support Folder Firmware Update User name and password must be entered to update firmware ® ® ™ Liebert IntelliSlot Unity... -
Page 52: Revert To Alternate Firmware
Firmware Updates Revert to Alternate Firmware The Liebert IntelliSlot Unity card has two areas in flash memory for the firmware and the configuration. One area is currently operating on the card. The other area is considered an alternate. When a card’s firmware is updated, the previous firmware and configuration are moved to the alternate area. -
Page 53: Appendix
The LIFE subfolder contains settings that affect use of the Emerson LIFE Technology, a remote ® monitoring and diagnostic service for Emerson units. The LIFE settings are for use by trained Emerson Network Power personnel only and require no user changes. Status... - Page 54 Firmware Updates Advanced Status Description Device State Whether the device is connected or unconnected The connection status of the Remote Service Delivery application system Connection Status interface. This is the interface by which Remote Service Delivery services communicates with the Unity system software. ™...
- Page 56 ® Liebert is a registered trademark of Liebert Corporation. +63 2 687 6615 All names referred to are trademarks Fax: +63 2 730 9572 or registered trademarks of their respective owners. SL-52645_REV2_06-14 Emerson Network Power Division: Liebert Web: www.emerson.com www.EmersonNetworkPower.com...
