Summary of Contents for Emerson dixell

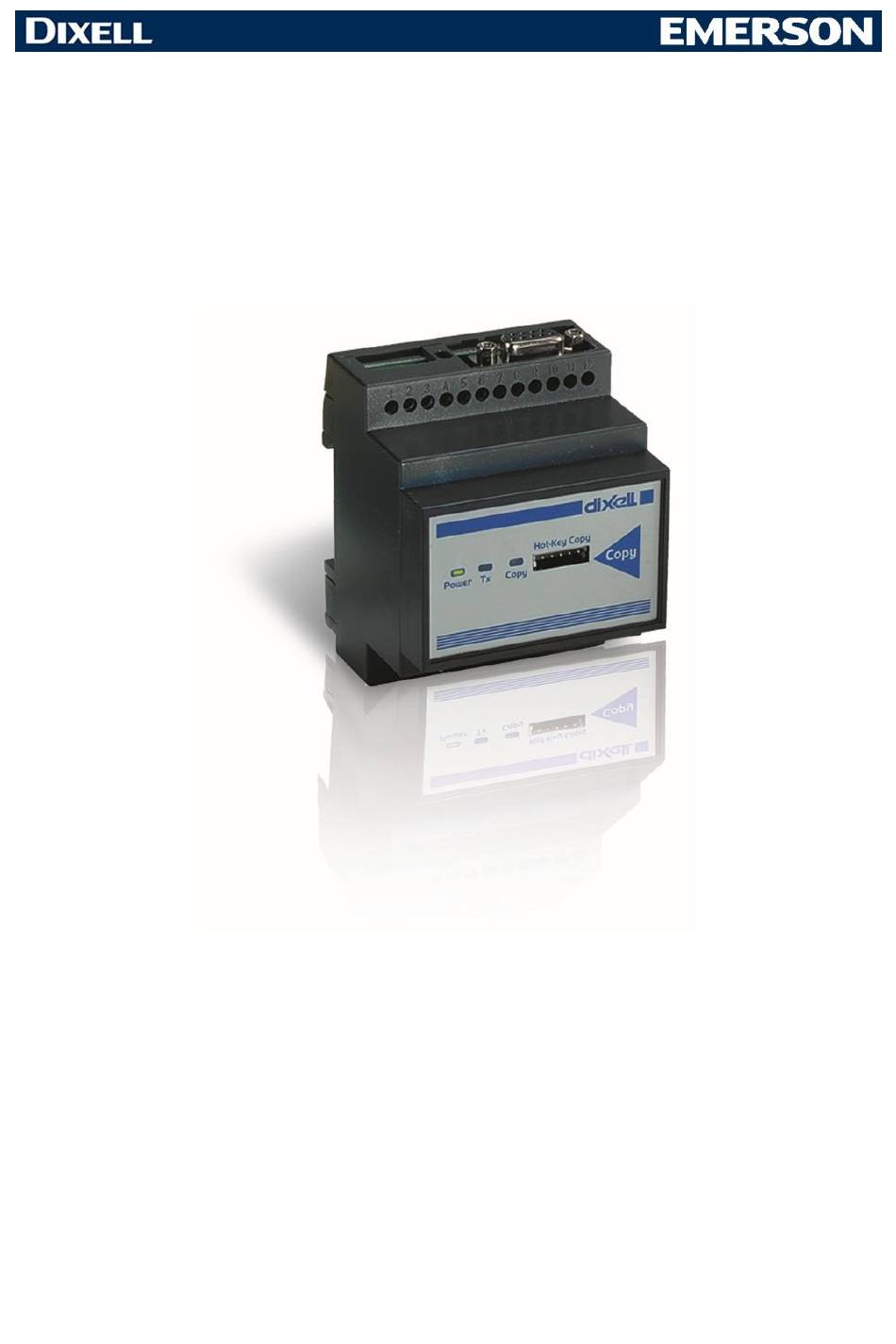

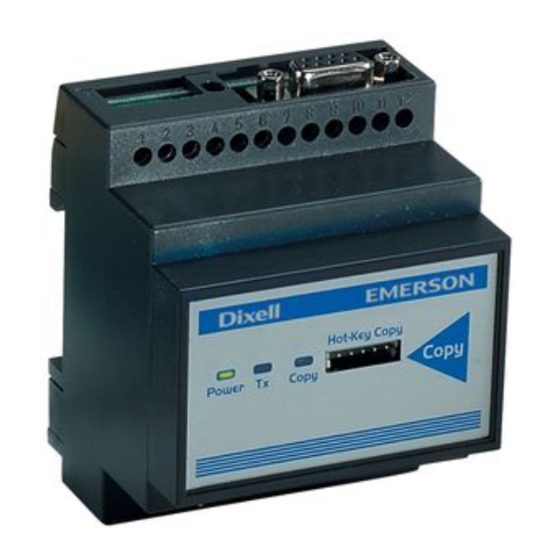

- Page 1 PROG TOOL...
- Page 2 Operations described in this manual are intended to be for exclusive use of the service staff. The user is is not enabled to open the device. Dixell Srl reserves the right to modify this user’s manual at any time without CAUTION prior notice.
- Page 3 2. PRODUCT DISPOSAL (WEEE) In compliance with the DIRECTIVE 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of July 4th 2012 regarding Waste Electrical and Electronic Equipment (WEEE) and to the relative national legislation, we inform all EEE housholds users that: ➢...
- Page 4 4. PROG-TOOL USE The PROG TOOL unit can be used to create HOT KEY programming keys and/or to interface DIXELL controllers to a PC in order to modify the parameters map using the Wizmate software. 4.1 WIRING DIAGRAM Programmed HOT KEY to be copied...
- Page 5 4.3 PROGRAMMING FROM HOT-KEY TO HOT-KEY This function allows to copy any HOT KEY that is already programmed. Programmed Hot Key to be copied Interface Led Press to start copying Insert programmed Power Supply Connect the power supply to the terminal blocks 13 and 14 and make sure the “Power” Led is turned on.
- Page 6 4.4 PROGRAMMING FROM PC TO HOT-KEY Using the PROG TOOL unit connected to a PC and the Wizmate software (included in the CD-Rom) it is possible to create Hot Keys, according to your needs. Interface Led Press to copy the parameters into the Hot Key Insert...
- Page 7 4.5 PROGRAMMING FROM PC TO INSTRUMENT The use of PROG TOOL along with Wizmate software allows to verify and/or modify the parameters map of an instrument. The instrument to be programmed must be connected to the PROG TOOL following one of the schemes indicated in the following pages (connection mode depends on the fact that the instrument has the RS485 serial port or not) and its compatibility (instrument model and software version) with Wizmate software must be verified using the table of Chapter 5 of this manual.
- Page 8 Relative humidity: 2085 % (non-condensing) Storage temperature: -4085 °C 6. OPERATION For operational procedures refer to WIZMATE MANUAL in the “Manuals Download” section of the website http://www.dixell.com, where you can find the latest updated version. 1592010400 PROG TOOL EN 19.03.2020 PROG TOOL...
