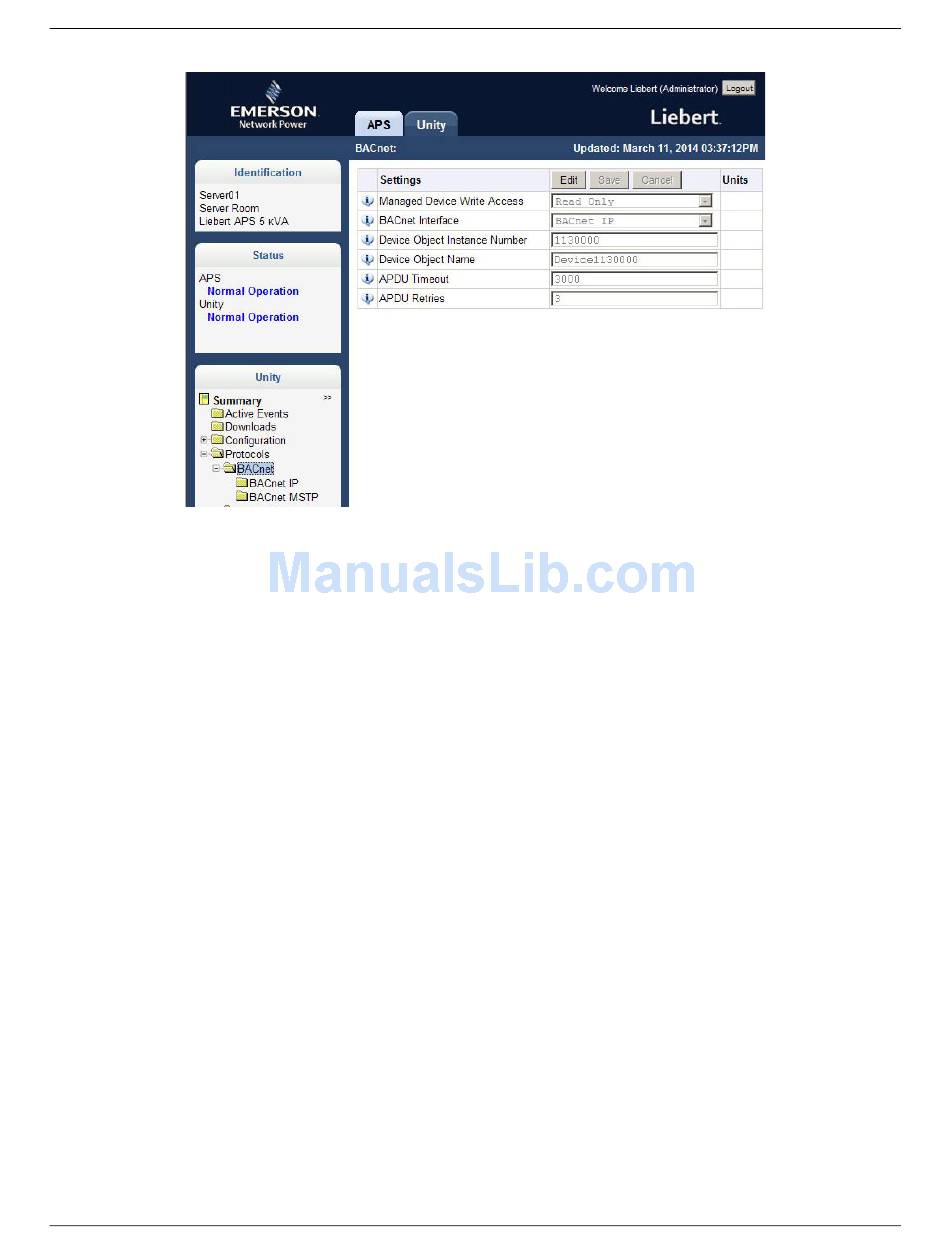

Figure 8 BACnet protocol settings
Configure BACnet IP Protocol
Contact your system administrator if you are uncertain about the settings.
1. Select Unity Tab > Protocols > BACnet IP.
2. Click on Edit and enter a User name and password if required.
3. Set the BACnetIP/Port Number
4. If the Liebert IntelliSlot Unity card is on a different subnet, a possibility when the monitored
units are part of a Liebert SiteScan network or other third-party monitoring service:
a. Choose whether to enable Register as Foreign Device.
b. Enter the IP address of the BBMD (BACnet Broadcast Management Device).
c. Enter a time in seconds for Foreign Device Time-to-Live.
5. Click Save to confirm the changes or click on Cancel to discard them.
6. Restart the card to activate the changes.
a. Select the Unity Tab > Support.
b. Enable the commands.
c. Click on Restart.
® ®
Liebert IntelliSlot Unity
™
Card 14
Enable Communication Protocols
