IMPORTANT: Before installing, connecting to supply, or operating your Emerson SolaHD S4K-D UPS,
please review the Safety and Regulatory Statements sheet. For detailed installation, operating, maintenance
and troubleshooting information refer to the S4K-D User Guide for your model by scanning the QR code, or
visiting www.Emerson.com.
1.0 Introduction
The external battery cabinet (EBC) is used to
house external batteries for the UPS. Before
shipment, each battery cabinet model was fitted
with a different number of 12Vdc batteries:
• SolaHD S4K2U36BATD
• SolaHD S4K2U48BATD
• SolaHD S4K2U72BATD
1.1 Rear Panel
The rear panel of the external battery cabinet
includes EBC connectors, EBC detection ports
and a circuit breaker as shown in Figure 1-1.
EBC and UPS Compatibility
EBC
UPS
S4K2U36BATD
S4K2U1000D
S4K2U48BATD
S4K2U1500D, S4K2U2000D
S4K2U72BATD
S4K2U3000D, S4K2U30005D
Specifications
Model S4K2U-
Dimensions, mm (D x W x H)
Unit
Weight, kg (with battery)
Unit
Environmental
Ambient Temperature
Relative Humidity
Operating Elevation
IMPORTANT! Non-certified technicians are prohibited from opening the chassis cover of the battery cabinet.
Emerson
SolaHD
S4K-D 36V/48V/72V External Battery Cabinet • A272-392_07/2024
™
®
QUICK INSTALLATION GUIDE
SolaHD
S4K-D 36V/48V/72V External Battery Cabinet
™
®
Six
Eight
Twelve

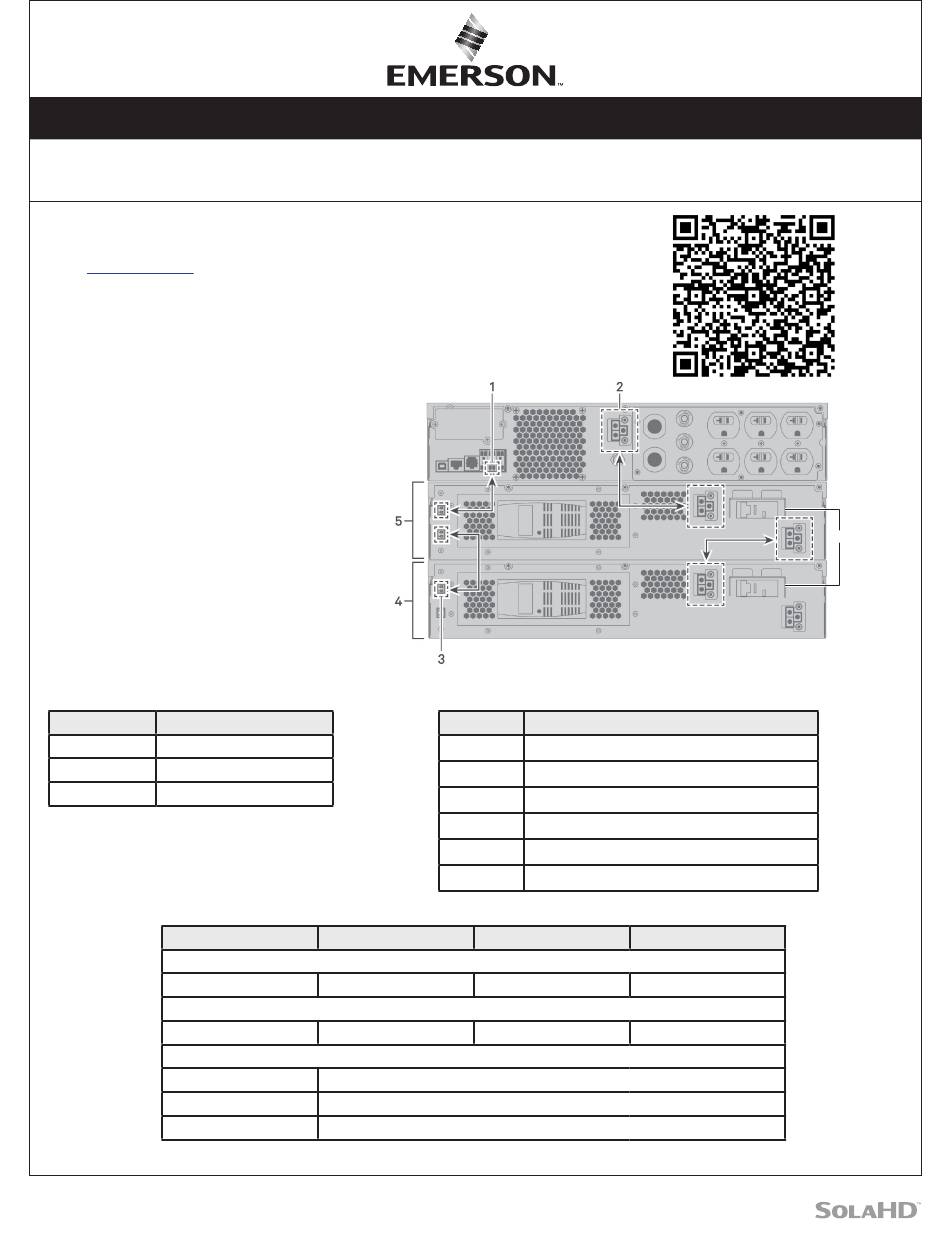

Figure 1-1 S4K2UXXBATD External Battery Cabinets with UPS on top (Rear View)
36BATD
370× 430 × 85
20
Item
Description
1
EBC-detection port
2
EBC connector
3
EBC-detection port
4
External battery cabinet
5
External battery cabinet
6
Circuit Breaker
48BATD
440 × 430 × 85
30
0 °C to 50 °C
0%RH ~ 90%RH (non-condensing)
≤ 3,000 m
6
72BATD
510 × 430 × 85
45
