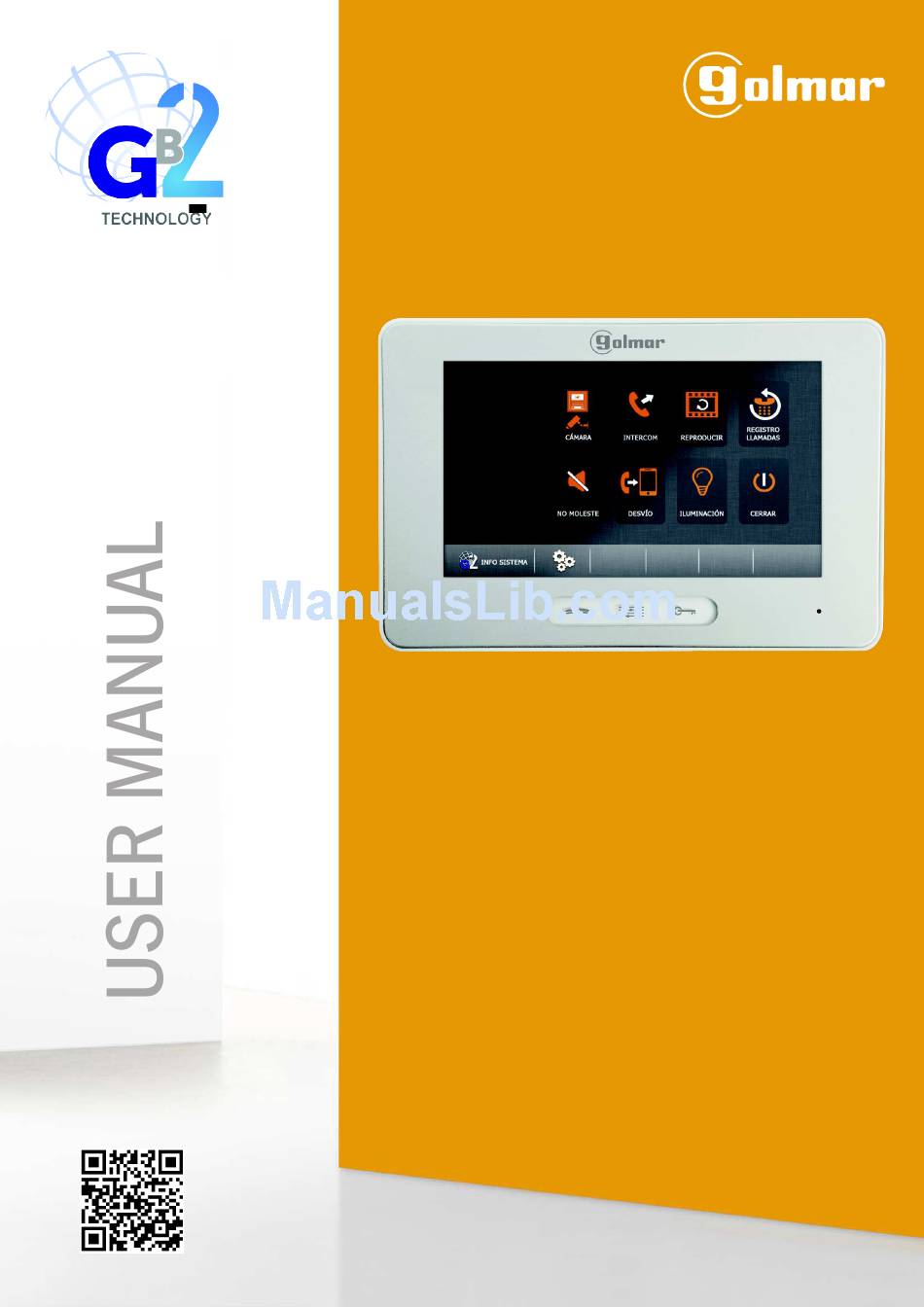

THERA
GB2 M
ONITOR
Code 50121889
REV.0 1
1 6
T
THERA B
G 2 EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the thera gb2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar thera gb2

Summary of Contents for golmar thera gb2

  • Page 1 THERA GB2 M ONITOR Code 50121889 REV.0 1 THERA B G 2 EN...

  • Page 2: Table Of Contents

    THERA G 2 B MONITOR INTRODUCTION First and foremost we would like to thank you for purchasing this product. Our commitment to satisfying our customers can be seen from our ISO-9001 certification and from the manufacturing of products like this one. Its advanced technology and exacting quality control will ensure that customers and users enjoy the many features this system offers.

  • Page 3: Characteristics

    THERA G 2 B MONITOR CHARACTERISTICS - Hands-free monitor. - 7" TFT colour screen. - Monitor with simple installation (unpolarised 2 wire BUS). - Touch screen for access and selection of menu functions: User menu: - Display image from door panel(s). - Display camera images (D-CAM-GB2 module required).

  • Page 4: Monitor Description

    THERA G 2 B MONITOR MONITOR DESCRIPTION 7” TFT colour screen. Start/stop communication push button. Micro SD Card During standby Display the door panel image Menu access button. Door release push button. Microphone. Monitor status light. Attachment holes. BUS connection terminals. Con guration DIP switch.

  • Page 5: Setting The Monitor's Address Codes

    THERA G 2 B MONITOR MONITOR DESCRIPTION Setting the monitor's address codes (addresses 0 to 31): Dip6: Sets the end of line. Set to ON in monitors where the bus cable terminates. Set to OFF only in intermediate monitors. Dip6 Dip6 Set the monitor address (addresses 0 to 31 Dip1...

  • Page 6: Installation Of The Monitor In A Surface Box

    THERA G 2 B MONITOR INSTALLING THE MONITOR IN A SUP-GB2 SURFACE BOX Avoid placing the monitor near sources of heat, in dusty locations or smoky environments. Positioning the SUP-GB2 surface box: The upper part of the SUP-GB2 surface box must be positioned at a height of 1.60 m. The minimum distance between the sides of the surface box and the closest object must be 5 cm.

  • Page 7: Installation Of The Monitor In An Embedding Box

    THERA G 2 B MONITOR INSTALLING THE MONITOR IN A UNIVERSAL EMBEDDING BOX Avoid placing the monitor near sources of heat, in dusty locations or smoky environments. Positioning the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the embedding box and the closest object must be 5 cm.

  • Page 8: Operation

    THERA G 2 B MONITOR OPERATION Monitor description upon receiving a call and during communication: Elapsed call/communication time. Door panel that made the call. Communication enabled. Door 1 activated. Door activated Photo or video capture activated, (Micro-SD card required for video recording Screen settings Scene, brightness, colour 00:30 monitor volume (see settings on pages 10-11)

  • Page 9: The Call Is Unanswered (Resident Unavailable)

    THERA G 2 B MONITOR OPERATION Continued from the previous page. The call is unanswered (resident unavailable) When a call is received, the monitor(s) will play a melody (the status light of the monitor(s) will blink) and show the image of the door panel on the main monitor without alerting the visitor. If the call is not answered in 40 seconds the monitor returns to standby.

  • Page 10: Answering A Call From The Door Panel

    THERA G 2 B MONITOR OPERATION Continued from the previous page. Answering a call from the door panel When a call is received, the monitor(s) will play a melody (the status light of the monitor(s) will blink) and show the image of the door panel on the main monitor without alerting the visitor.

  • Page 11: User Menu

    THERA G 2 B MONITOR OPERATION Continued from the previous page. To access the brightness, contrast and colour settings, press option The following selection screen is displayed. Press option in each selection eld to increase or decrease brightness , contrast colour Press “door panel image”...

  • Page 12: Displaying The Main Door Panel Image

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Displaying the main door panel image To display the main door panel image, press “Camera/Door”. The following selection screen will be displayed. Press option “Door1”. 08 : 45 08 : 45 08 : 45 08 : 45...

  • Page 13: Displaying Images From The Door Panels

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Displaying images from the door panels To display the image from one of the installed door panels, press “Camera/Door”. The following selection screen will be displayed. Press the option corresponding to the desired door panel “Door” from which to visualise an image. 08 : 45 08 : 45 08 : 45...

  • Page 14: Displaying Camera Images (D-Cam-Gb2 Module Required)

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Displaying camera images (D-CAM-GB2 module required) To display the image from one of the installed cameras, press “Camera/Door”. The following selection screen will be displayed. Press the option corresponding to the desired camera from which to visualise an image 08 : 45 08 : 45 08 : 45...

  • Page 15: Intercom Calls (Inner Broadcast)

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Intercom (inner Broadcast To access the Inner Broadcast function, press option “Intercom” . The following selection screen will be displayed. Press “Inner Broadcast”. 08 : 45 08 : 45 08 : 45 DIFUSIÓN INNER...

  • Page 16: Intercom Calls Within An Apartment

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Intercom calls within an apartment To access the intercom calls within an apartment function, press option “Intercom”. The following selection screen will be displayed. Press “Inner call”. 08 : 45 08 : 45 08 : 45 DIFUSIÓN...

  • Page 17: Intercom Calls Between Apartments

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Intercom calls between apartments To access the intercom calls between apartments function, press option “Intercom”. The following selection screen will be displayed. Press “Name List Call”. Selection screen 08 : 45 08 : 45 08 : 45...
  • Page 18 THERA G 2 B MONITOR USER MENU Continued from the previous page. If the call is accepted, communication will last for 1 and a half minutes or until option is pressed. During communication Increase communication volume. Recibe llamada intercomunicación Reduce communication volume. End communication.

  • Page 19: Calling The Surveillance Monitor

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Calling the surveillance monitor To access the building's surveillance monitor call function (if there is one), press option “Intercom”. The following selection screen will be displayed. Press “Call Guard Unit”. Selection screen 08 : 45 08 : 45...

  • Page 20: Viewing Photos And Videos Of Door Panel Calls/Cameras And Deleting Photos And Videos (Micro-Sd Card Required For Video)

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Viewing photos and videos of door panel calls/cameras and deleting photos and videos Note: By default, the monitor enables photos to be taken. For the video option, a Micro-SD card is required. Use of this card cancels the photo option.

  • Page 21: Viewing The Call Log

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Viewing the call log To view the call log, press “Call log”. The following screen will be displayed. Call Log 01/02 08 : 45 08 : 45 09-11 12:24 PL-1 Mon.

  • Page 22: Do Not Disturb Mode

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Do not disturb mode To access the “Do not disturb” mode functions, press option . The following selection screen will be displayed. Do Not Disturb 08 : 45 08 : 45 Normal Mon.

  • Page 23: Divert Call Mode (Gsm-Gb2 Module Required)

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Divert call mode (GSM-GB2 module required) To access the divert call functions, press option “Divert”. The following selection screen will be displayed. Press option “1), 2) or 3)” to edit up to 3 xed or mobile telephone numbers to which the call from the door panel will be diverted.

  • Page 24: Exiting The User Menu Function

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Exiting the user menu function To exit the monitor's user menu function, press Monitor in standby 08 : 45 08 : 45 Mon. Mon. CAMERA INTERCOM PLAYBACK CALL LOG / PLACA 09/11/2015 09/11/2015...
  • Page 25 THERA G 2 B MONITOR USER MENU Continued from the previous page. 8.1.1 To access the ringtone and volume settings, press “Sounds”. The following settings screen will be displayed (default settings: Door ringtone “19”, Intercom “01”, Door bell “03” and Alert “04”. Volume day “06” and night “03”). 19 TelRing Ring Tune Settings...
  • Page 26 THERA G 2 B MONITOR USER MENU Continued from the previous page. To access the time and date settings, press option “Date & Time”. The following settings screen will be displayed 8.1.2 Date & Time Fecha y hora Settings Sounds CAMERA INTERCOM PLAYBACK...
  • Page 27 THERA G 2 B MONITOR USER MENU Continued from the previous page. 8.1.3 To access the language settings, press option “Language”. The following settings screen will be displayed. Language Settings English Sounds CAMERA INTERCOM PLAYBACK CALL LOG Español / PLACA Date &...

  • Page 28: Menu Page

    THERA G 2 B MONITOR USER MENU Continued from the previous page. 8.1.4 To access the rename door/camera and auto switch-on time settings, press option “More”. The following settings screen will be displayed. Door Rename Camera Rename Settings PL - 1 CM - 1 Sounds CAMERA...
  • Page 29 THERA G 2 B MONITOR USER MENU Continued from the previous page. 8.1.5 To access the default setup, Micro-SD card and installer menu settings, press option “About” or (see page 31). The following selection and monitor information screen will be displayed. Selection screen About Settings...
  • Page 30 THERA G 2 B MONITOR USER MENU Continued from the previous page. To copy photos from the flash memory to the Micro-SD card, press option . The following screen will be displayed. Press option to copy photos to the Micro-SD card or option to return to the selection screen.

  • Page 31: Monitor Cleaning

    THERA G 2 B MONITOR USER MENU Continued from the previous page. Function codes (installer): [8000]: Master m onitor ( factory [8001] [8003]: Slave monitor [8004]: Surveillance onitor. [8005]: Without surveillance monitor factory [9015]: Intercom enabled actory [9016]: Intercom disabled Each apartment must have only one master unit: Any further units in the apartment must be con gured as slaves.
  • Page 32 Sistemas de comunicación S.A. golmar@golmar.es www.golmar.es Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis . Golmar reserves the right to make any modifications without prior notice.

  • Page 33: An Ex: N Changing The Monitor's Day Mode Time Range

    THERA G 2 B MONITOR USER MENU (A NEX) To change the “Day” mode start and finish time: The monitor's ringtone is louder during the time set as day mode (default setting of 06:00 to 18:00). Set Dip1 of the monitor's con guration dip switch to ON Step 1: Step 2: To access the menu, the monitor must be in standby.
  • Page 34 THERA G 2 B MONITOR Continued from the previous page. Step 3: Then enter the function code with the alphanumeric buttons. Con rm the function code entered by pressing option “OK”. Press option to exit and return to the monitor's selection and information screen. Installer screen Selection and information screen INSTALLER SETUP...
