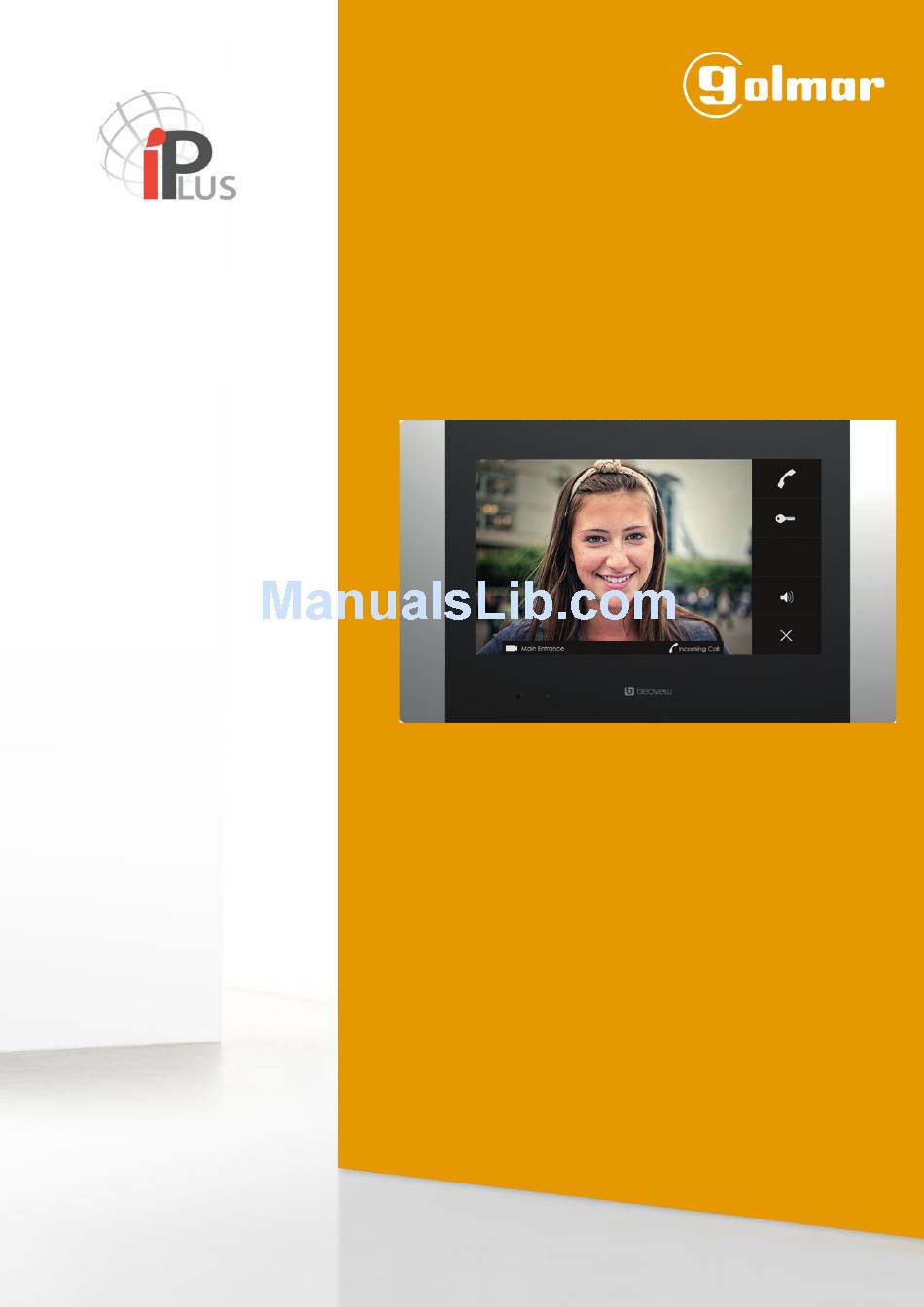

BEOVIEW 7 MONITOR
USER MANUAL
TBEOVIEW7 EN REV1704 X7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEOVIEW 7 and is the answer not in the manual?

Questions and answers

Related Manuals for golmar BEOVIEW 7

Summary of Contents for golmar BEOVIEW 7

  • Page 1 BEOVIEW 7 MONITOR USER MANUAL TBEOVIEW7 EN REV1704 X7...

  • Page 2: Table Of Contents

    BEOVIEW 7 MONITOR INTRODUCTION First and foremost we would like to thank you for purchasing this product. Our commitment to satisfying our customers can be seen from our ISO-9001 certification and from the manufacturing of products like this one. Its advanced technology and exacting quality control will ensure that customers and users enjoy the many features this system offers.

  • Page 3: Characteritics

    BEOVIEW 7 MONITOR CHARACTERISTICS - Hands-free monitor. - 7” TFT capacitive colour screen. - Monitor with simple installation (UTP CA5, ethernet cable with RJ-45 plug). User menu: - View entries. - Call porter. - Messages. - Missed calls. - Ring volume.

  • Page 4: Installation Of The Monitor

    BEOVIEW 7 MONITOR INSTALLATION OF THE MONITOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the embedding box The upper part of the box must be placed at a height of 1.60m. The minimum distance between the sides of the surface box and the closest object must be 20cm.

  • Page 5: Monitor Functions

    BEOVIEW 7 MONITOR MONITOR FUNCTIONS View Entries When view entries button is pressed, the video streamming from latest camera or entry station will be displayed. The screen displays at the bottom the panel label, which identifies the camera that is being tracked at the moment.

  • Page 6: Messages

    BEOVIEW 7 MONITOR MONITOR FUNCTIONS Messages By accessing the messages button, a list of messages will appear. Text messages are sent by the concierge or building administrator. It is possible to move through the stored messages up and down. There are two methods to know that there are text messages unchecked: - The monitor LED blinks.

  • Page 7: Ring Volume

    BEOVIEW 7 MONITOR MONITOR FUNCTIONS Ring Volume The volume of the ring tone can be adjusted in four different levels, where the minimum is set as do not disturb, muting the ring calls. This state is shown turning the icon into red colour.

  • Page 8: Communication Status

    BEOVIEW 7 MONITOR COMMUNICATION Incoming call from an entry panel When a call is incoming to the apartment, the monitor starts to ring. It rings 4 times while the video image will appear on screen. It is displayed as well the panel label from which the call has been started, in order to identify the procedence of the call.

  • Page 9: Communication With An Entry Panel

    It is posisble to integrate the apartment door bell switch. Connect it to termnials 1-3 of the monitor. For a call signal repeater use Golmar S-8 loudspeaker connected to outputs 5-6. It is possible to use the external ringer as a trigger signal to use a relay to activate external devices like lights or sirens.

  • Page 10: Specification, Cautions And Maintenance

    BEOVIEW 7 MONITOR SPECIFICATION, CAUTIONS AND MAINTENANCE Specifications Dimensions: 220 (W) 134 (H) 13 (D). Weight: 770 gr. Screen size. 7 inch. Working temperature range. -20/+60ºC. Humidity: 10%-90% - non condensing. Consumption: 2W idle - 6W in communication. Power supply: PoE 48Vdc (IEEE 802.3AF).
  • Page 11 BEOVIEW 7 MONITOR NOTES:...
  • Page 12 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
