  • Page 1 Camera Playback Light Intercom Divert Setup /Door VESTA SE GB2 M ONITOR VESTA SE G 2/H M ONITOR Code 50121960 TVESTA SE G 2 EN REV.0419...

  • Page 2: Table Of Contents

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR INTRODUCTION First of all, we thank and congratulate you for purchasing this product. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased. Its advanced technology and strict quality control will ensure that customers and users enjoy the numerous features that this device offers.

  • Page 3: Characteristics

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR CHARACTERISTICS - Hands-free monitor. - 7” TFT colour screen. - Monitor with simple installation (non-polarised 2 wire BUS). - The Vesta7 SE GB2/H monitor interacts with hearing aids equipped with T-mode, making conversation between apartment and door panel easier.

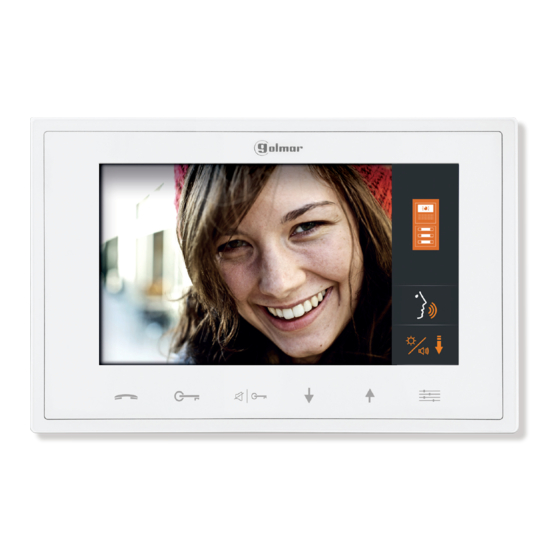

  • Page 4: Description Of The Monitor

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR DESCRIPTION OF THE MONITOR a. 7” TFT colour screen. In auto spy/auto switch-on: Select other door panel(s), b. Microphone. camera(s) in ascending mode and in carousel (if any). c. Start/stop communication button. In call/communication: Select camera(s) in ascending In standby: Display door panel image.

  • Page 5: Setting The Monitor's Address Codes

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR DESCRIPTION OF THE MONITOR Setting the monitor's address codes (addresses 0 to 31): DIP 6: Configures the end of line. Leave in the ON position in monitors where the video cable terminates. Set to OFF in intermediate monitors only.

  • Page 6: Installing The Monitor In A Wall Mounting Connector

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR INSTALLING THE MONITOR IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the connector must be positioned at a height of 1.60m. The minimum distance between the sides of the connector and the closest object must be 5cm.

  • Page 7: Installing The Monitor In An Embedding Box

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR INSTALLING THE MONITOR IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Location of the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5cm.

  • Page 8: Operation

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR OPERATION Monitor description when receiving a call and during communication: Communication with hearing aids. Set the hearing aid switch to Note: T-mode. (Vesta7 SE GB2/H only). 00:30 Call/communication time elapsed. Door panel that made the call/CCTV camera selected.

  • Page 9: Call Not Answered (Missed Call)

    (the LED of button will blink slowly). If the monitor is a Vesta SE GB2/H with icon on the front, make sure that the hearing aid is 20cm away from the monitor to ensure maximum audio quality during communication with the door panel.

  • Page 10: Answering A Call From The Door Panel And Showing Cameras (Dq-Cam-Gb2 Module Required)

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR OPERATION Continued from previous page. 1.5 Answering a call from the door panel and showing cameras (DQ-CAM-GB2 module required): When a call is received, the monitor(s) will play a melody and show the door panel image on the master monitor without alerting the visitor.

  • Page 11: Monitor Screen And Volume Settings Menu (Brightness, Colour, Contrast And Communication Volume)

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR SCREEN AND VOLUME SETTINGS MENU To adjust brightness, the monitor must be in communication or auto switch-on mode. Then press button to show on screen option . Using menu buttons , select the required brightness level. Press button to change the following option or press...

  • Page 12: User Direct Access Functions

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER DIRECT ACCESS FUNCTIONS Description of buttons with user direct access functions: Display door panel image. Activate intercom function within apartment. If there is a missed call: The LED of button Activate outdoor light. blinks and when you press you access the 'playback' menu, (see pp.

  • Page 13: Activating The Outdoor Light

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER DIRECT ACCESS FUNCTIONS Continued from previous page. Then, using menu buttons and , select the desired door panel/camera (DQ-CAM-GB2 module required, for function codes, see p. 24) in descending and ascending mode respectively (carousel mode). The connection will last for 30 seconds or until option is pressed twice if a door panel is selected or once if a camera is selected.

  • Page 14: Activating 'Do Not Disturb' Mode

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER DIRECT ACCESS FUNCTIONS Continued from previous page. 3 Activating 'do not disturb' mode: 3.1 To activate 'do not disturb' mode, press button on the master monitor for 3 seconds while in standby. The status LED of button of the master and secondary monitors in the apartment will illuminate indicating that the function is activated.
  • Page 15 VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER DIRECT ACCESS FUNCTIONS Continued from previous page. On the other monitors in the apartment, the status LED of button will blink rapidly and a melody will indicate that an intercom call is being made. Press button to accept the call and establish communication, the status LED of button will blink slowly, or press button...

  • Page 16: User Menu

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Description of the menu buttons: 10:26 26/11/2019 Tue. Camera/ Light Intercom Divert Setup Playback Door Note: The date and time is only displayed if an M-IP-GB2 memory module is installed. Menu entry and user settings button.

  • Page 17: Displaying Door Panel/Camera Images

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. 1. Displaying door panel/camera images: To display the image from one of the installed door panels/cameras, press button Main menu screen 10:26 26/11/2019 Tue. Camera/ Light Intercom Divert Playback...

  • Page 18: Activating The Outdoor Light

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. 2. Activating the outdoor light: (SAR-GB2 module required) To activate the outdoor light, press button . The outdoor light (SAR-GB2 module required) will activate for 1 minute. See the TSAR-GB2 ML user manual for how to set other light activation times. Main menu screen 10:26 26/11/2019...

  • Page 19: Divert (No Function)

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. On the monitor(s) of the apartment called, the status LED of button will blink rapidly, a melody will indicate that an intercom call is being made and the address of the apartment making the call will be shown. Press button accept the call and establish communication, the status LED of button will blink slowly, or press button cancel it.

  • Page 20: Playback (M-Ip-Gb2 Module Required)

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. 5. Playback: (M-IP-GB2 module required) To display the call photos/videos on the door panel, press button . The following 'Playback' selection screen will be displayed. Use buttons to select the photo/video to view (for video, a 16GB Class 10 MicroSD card is required, not supplied...
  • Page 21 VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. To hide/show the photo/video information, press button . Every time button is pressed, it will hide or show the information of the selected photo/video. Selection screen Selection screen 0032 [1/30]...

  • Page 22: Settings (Ringtone, Ringtone Volume, Default Settings, About And Language Selection)

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. To change the date and time, go to option '6. Settings' and select 'Default settings' (as indicated on p. 22 and p. 24) 0032 [1/20] 181107_105210.avi and then press button for 3 seconds.
  • Page 23 VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. 6.2 To change the intercom ringtone, use buttons . Then press option to change the apartment door ringtone. Intercom ringtone settings Apartment door ringtone settings 6.3 To change the apartment door ringtone, use buttons to select the desired volume.
  • Page 24 VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. 6.5 Default settings. To reset the settings (ringtones, call volume, brightness, colour, contrast and communication volume) in '6. Settings' (see pp. 22-23) and 'screen and volume settings' (see p. 11) to factory default, press button and a long tone will confirm that the function has been performed.

  • Page 25: Cleaning The Monitor

    VESTA7 SE GB2 - VESTA7 SE GB2/H MONITOR USER MENU Continued from previous page. Then go to the 'language selection settings' option by pressing button , and the following language selection screen will be displayed. Ringtone settings Language selection settings spañol English Français...
  • Page 26 C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
