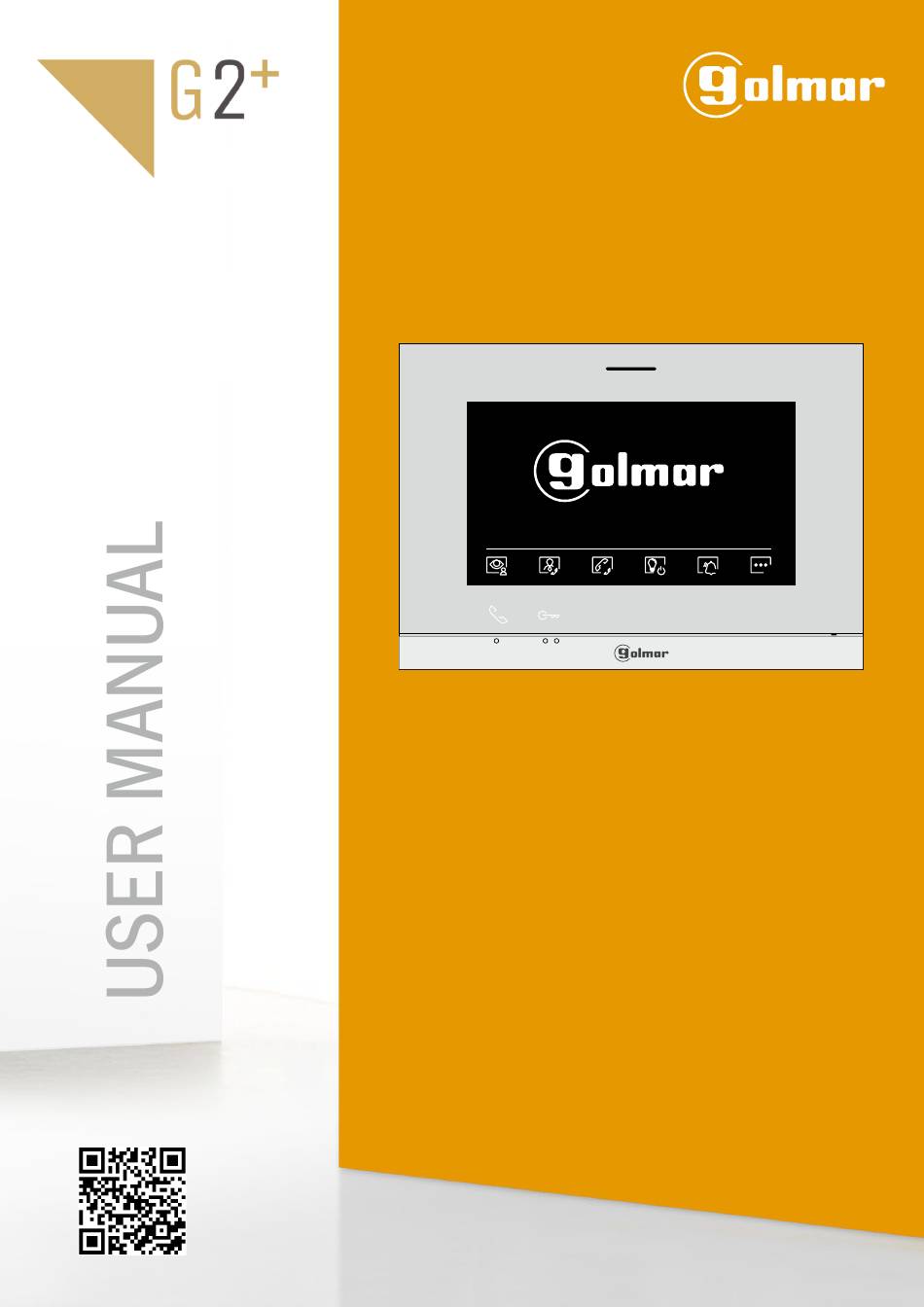

- Page 1 TECHNOLOGY Art 7 LITE/G2+ monitor Hands-free 2-wire installation Cód. 50122627 TART 7 LITE/G2+ EN REV.02 1...
-
Page 2: Table Of Contents
- Do not place in humid, dusty or smoky locations, or near sources of heat. - Before connecting the device to the mains, check the connections between the door panel, power supply unit, distributors and monitors, RAP-GTWIN/HF se the Golmar cable (2x1mm²). - Always follow the instructions contained in this manual. -
Page 3: Characteristics
If you have the “S5110 ART 7 LITE” villa kit with Soul door panel download “TS5110 ART 7 LITE (cód. 50122 )” user manual from the next QR o n r i the link Golmar web: h ps://doc.golmar.es/search/manual/50122676 TS5110 ART 7 LITE MANUAL... -
Page 4: Description

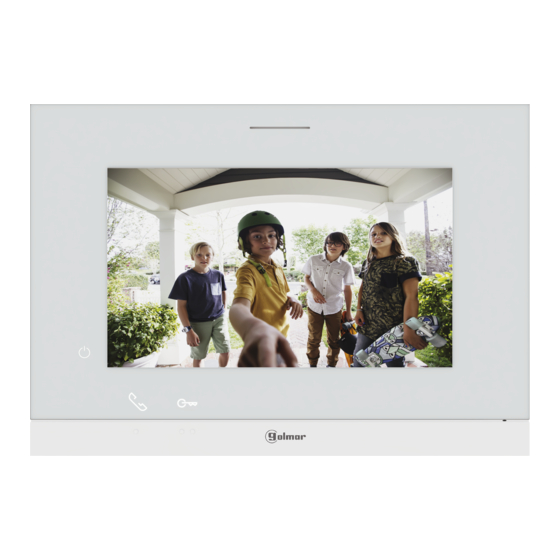

E. 7” TFT colour screen. either of the 2 buttons located above the raised dots for the visually impaired (see page 6 F. Golmar use. In call/ communication: press button to start or end G. Microphone. the communication. H. Wall mounting connector fixing (x4). -
Page 5: Installation
ART 7 LITE/G2+ MONITOR INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector. -
Page 6: Main Menu
ART 7 LITE/G2+ MONITOR MAIN MENU Main menu LED indicators Hidden button pressing area Raised dots for the visually impaired If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above raised dots / for the visually impaired) on the monitor. -
Page 7: Settings Menu
ART 7 LITE/G2+ MONITOR SETTINGS MENU Settings menu Returning to the main menu: Press the hidden button below icon to return to the main menu. The 'About' screen provides information about the monitor, such as the software version, address and whether it is master or slave (M, S1, S2 or S3). It enables updated versions of the manual to be downloaded to a mobile or tablet, for which it is necessary to have a QR code scanner app installed. - Page 8 ART 7 LITE/G2+ MONITOR Continued from previous page. SETTINGS MENU Selecting the melody and call volume: Press the hidden button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.
- Page 9 ART 7 LITE/G2+ MONITOR Continued from previous page. SETTINGS MENU To enable the automatic door opening (after 3 seconds of receiving a call from the door panel), go to the option with icon by pressing the button / hidden button below corresponding icon...
- Page 10 ART 7 LITE/G2+ MONITOR Continued from previous page. SETTINGS MENU Press the button below icon to return to the main menu. If the ' automatic door opening ' mode is enable (see pages 8 to 9) in the top left of the screen the icon will be displayed in the main menu...
-
Page 11: Door Panel Call Screen
ART 7 LITE/G2+ MONITOR DOOR PANEL CALL SCREEN This screen is displayed when you receive a call or when you press the button below icon of the main menu. During a call, icon displayed on the screen will blink green (during the call process). In the top right of the screen, the source of the image is displayed. -
Page 12: Communication Screen
ART 7 LITE/G2+ MONITOR COMMUNICATION SCREEN This screen is displayed during a communication process. In the top right of the screen, the source of the image is displayed. Press the hidden button below icon to access the image and monitor in communication volume settings menu. -
Page 13: Image And Communication Settings
ART 7 LITE/G2+ MONITOR IMAGE AND COMMUNICATION SETTINGS During a communication process, press the hidden button below icon to access the image and monitor in communication volume settings menu. The following settings menu will then appear (brightness, contrast, colour and monitor in communication volume). Go to the option to be modified by pressing the button/ hidden button below... -
Page 14: P Eriod Of Time For 'Do Not Disturb' Mod E Menu
ART 7 LITE/G2+ MONITOR PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ Do not disturb' mode settings: If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above raised dots / for the visually impaired) on the monitor . - Page 15 ART 7 LITE/G2+ MONITOR Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENÚ To set a period of time for "Do not disturb" mode in which the monitor will not sound when receiving calls (see note "HZ" page 5), go to the option with icon pressing the button/ hidden button below corresponding icon and select the option by pressing the button below icon...
-
Page 16: Intercom Menu
ART 7 LITE/G2+ MONITOR INTERCOM MENU Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monito of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p age 17... - Page 17 ART 7 LITE/G2+ MONITOR Continued from previous page. INTERCOM MENU For external intercom, the monito of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled: To enable/disable the intercom function between apartments, go to the option with icon by pressing the button/ hidden button below corresponding icons .
- Page 18 ART 7 LITE/G2+ MONITOR Continued from previous page. INTERCOM MENU Press the button/ hidden button below icons to select the apartment code field to be modified, then press the hidden buttons below icons to be modified with the apartment code to be called and press the hidden button below icon to make the call.
-
Page 19: Settings And Operation Of The Guard Monitor
ART 7 LITE/G2+ MONITOR SETTINGS AND OPERATION OF THE GUARD MONITOR Settings "guard monitor" mode: The monitor/s to be configured as a guard monitor/s (up to 4 monitors) in the building, must be configured with address 1 and as master slave 1 slave 2 slave 3 . - Page 20 ART 7 LITE/G2+ MONITOR SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
- Page 21 ART 7 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on the master monitor). Visible Not isible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3 0131 0130 0130...
- Page 22 ART 7 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES Activation times of the outputs (Door panel ). (Configure only on the master monitor). Factory setting Relay 1 From 1200 (0,5s) 1219 (10s) 1205 (3s) ay 2 From 1300 (0,5s) 1319 (10s) 1305 (3s) Configuration of the remote activation button...
-
Page 23: Cleaning The Monitor
ART 7 LITE/G2+ MONITOR Continued from previous page. SPECIAL CODES (GENERAL DOOR PANELS) General door panels video sources available on a monitor (configure only on the master monitor). Visible Not isible Factory setting General door panel 1 1111 1110 1111 General door panel 2 1121 1120... -
Page 24: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
