- Page 1 Kit Soul TECHNOLOGY G2+ 2-wire installation Art 4 Lite monitor Cód. 50122625 N REV.0122 TS5110 ART LITE E...
-
Page 2: Table Of Contents
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT CONTENTS Contents ..................................2 IMPORTANT IN THIS MANUAL ..........................2 Recommendations..............................3 System operation ...............................3 FA-G2+/ LITE power supply ............................4 Description ..............................4 Installation ...............................4 Soul panel 4.3 /LITE .............................5 to 7 Description ..............................5 Installation ...............................6 Installation terminals ............................6 Configuration switches.............................7 Setting the audio level ............................7... -
Page 3: Recommendations
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT RECOMMENDATIONS - Preferably use a Golmar RAP-GTWIN/HF cable (2x1mm²). - The wiring must run at least 40cm away from any other wiring. Always disconnect the power supply before making modifications to the device. -
Page 4: Fa-G2+/ Lite Power Supply
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT FA-G2+/ LITE POWER SUPPLY Description BUS(M) BUS(PL) A. Monitor Bus connection terminals. B. Door panel Bus connection terminals. C. Protective cover for the current input. D. Current input connection terminals. E. Detail of the current input terminals without protective cover. -
Page 5: Description

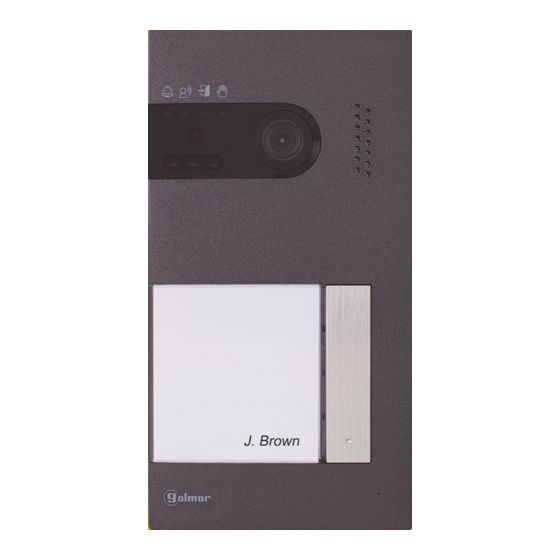

SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Description A. System status icons: Call in progress. Communication established. Lock release activated. System busy. B. System status indicator lights. C. Ambient lighting sensor. D. Night viewing lighting. E. -
Page 6: Installation
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Installation The door panel has been designed to withstand diverse environmental conditions. It is however advisable to take extra precautions to prolong its service life, such as locating it in a covered area. For optimum image quality, avoid direct contact from light sources (sunshine, street lights, etc.). -
Page 7: Soul Panel 4.3 - /Lite
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT SOUL PANEL 4.3 /LITE Configuration switches (R) Configuration changes should be made with the equipment turned off. If they are performed with the equipment turned on, disconnect it for 10 seconds after any modification. All switches are factory set to OFF. -
Page 8: Description
D. 4.3" TFT colour screen. The function of each button is shown on the monitor screen with an icon located just above each button E. Golmar use. (see pp. 10 to 23). F. Microphone. Press to access 'Doctor mode' function (standby monitor): G. -
Page 9: Installation
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Installation Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. -
Page 10: Main Menu
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Main menu Main menu If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor. Then press the button located just below the corresponding icon. -
Page 11: Settings Menu
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Settings menu Press the button below icon to access the settings menu screen. menu Access settings menu screen Then press the button below icon to access the settings menu. If you wish to return to the main menu, press the button below the icon Access settings menu screen Settings menu screen... - Page 12 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Settings menu Settings menu screen Returning to the main menu: Press the button below icon to return to the main menu. The 'About' screen provides information about the monitor, such as the software version, address and whether it is master or slave (M, S1, S2 or S3).
- Page 13 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Settings menu Selecting the melody and call volume: Press the button below icon to access the settings screen. In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.
-
Page 14: Door Panel Call Screen
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Door panel call screen This screen is displayed when receiving a call or pressing the button below icon of the main menu. During a call, icon displayed on the screen is in green... - Page 15 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Door panel call screen This screen is displayed during a communication process. During a communication , icon displayed on the screen is in green color. In the top left of the screen, the source of the image is displayed.
- Page 16 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Image and communication settings During a call process (Screen A) or during a communication process (Screen B) , press the button below icon for 3 seconds to access the image and monitor in call/ communication volume settings menu.
- Page 17 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Image and communication settings The following contrast control menu will then be displayed. Adjust to the desired level by pressing the buttons below icons .
-
Page 18: Communication Screen
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Image and communication settings The following call tone settings volume during a call process (Screen A) or communication settings volume during a communication process (Screen B) will then be displayed. Adjust to the desired level by pressing the buttons below icons . - Page 19 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Period of time for 'do not disturb' mode menú 'Do not disturb' mode settings: If the device is in standby (screen switched off), to access the main menu, press any of the buttons of the monitor.
- Page 20 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Period of time for 'do not disturb' mode menú Press the button below icon to return to the main menu. If the 'Do not disturb' mode is enable (see pages 19 to 20) will be shown the icon in the main menu and the m onitor status...
- Page 21 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Period of time for 'do not disturb' mode menú To set a period of time for automatic door openning mode (after 3 seconds of receiving a call from the door panel), go to the option with icon pressing the button below icon and select the option...
- Page 22 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT ART 4 LITE /G2+ MONITOR Intercom menu If the unit is in standby mode (screen off), press any of the buttons on the monitor to access the main menu. Then press the button located below the icon to access the intercommunication menu.
-
Page 23: Image And Communication Settings
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. ART 4 LITE /G2+ MONITOR Intercom menu The calling monitor will sound a confirmation melody and indicate the called monitor and available call time, if you wish to cancel the call press the push button below icon to return to the main menu. -
Page 24: Cross Sections And Distances
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS Cross sections and distances - Maximum 1 apartment. ART 4 LITE/G2+ ART 4 LITE/G2+ - The maximum number of monitors in the apartment is 4. - The maximum number of monitors in cascade is 4. - Maximum two access door panels. -
Page 25: One Apartment With Up To Two Access Panels And Up To Four Monitors In Cascade
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT WIRING DIAGRAMS One apartment with up to two access panels and up to four monitors in cascade SOUL/ LITE SOUL- /LITE ART 4 LITE/G2+ ART 4 LITE/G2+ ART 4 LITE/G2+ DOOR PANEL 2 DOOR PANEL 1 APARTMENT 1 APARTMENT 1... -
Page 26: Connection Of A Lock Release
12Vd.c / 270mA If the lock release to be used is alternating current, use a relay and transformer suitable for the consumption, as well as the varistor supplied. The example shows a Golmar SAR-12/24 relay and a TF-104 transformer (12Vac/1.5A). -
Page 27: Wiring Diagrams
26 . Connection of an external camera It is possible to connect a Golmar AHD4-3601x analogue CCTV camera to each of the door panels, which can be viewed (see pp. 28 29 ) from the monitor. The camera needs to have a local PSU-121 power supply. - Page 28 SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
-
Page 29: Special Codes
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT Continued from previous page. SPECIAL CODES Video sources available on a monitor (only setting on master monitor). Visible No Visible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120... -
Page 30: Cleaning The Monitor
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp cloth (not wet) that sheds no fibres. - Always wipe the monitor in the same direction, from top to bottom. -
Page 31: Notes
SOUL S5110/ART 4 LITE VIDEO DOOR ENTRY SYSTEM KIT NOT S... -
Page 32: Compliance
C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
