TECHNOLOGY
23-09-2023
09:27
Art 7 /G2+
T
monitor
Hands-free
2-wire installation
N REV.0123 V01
TART 7 G2+ E
T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Art 7/G2+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar Art 7/G2+

Summary of Contents for golmar Art 7/G2+

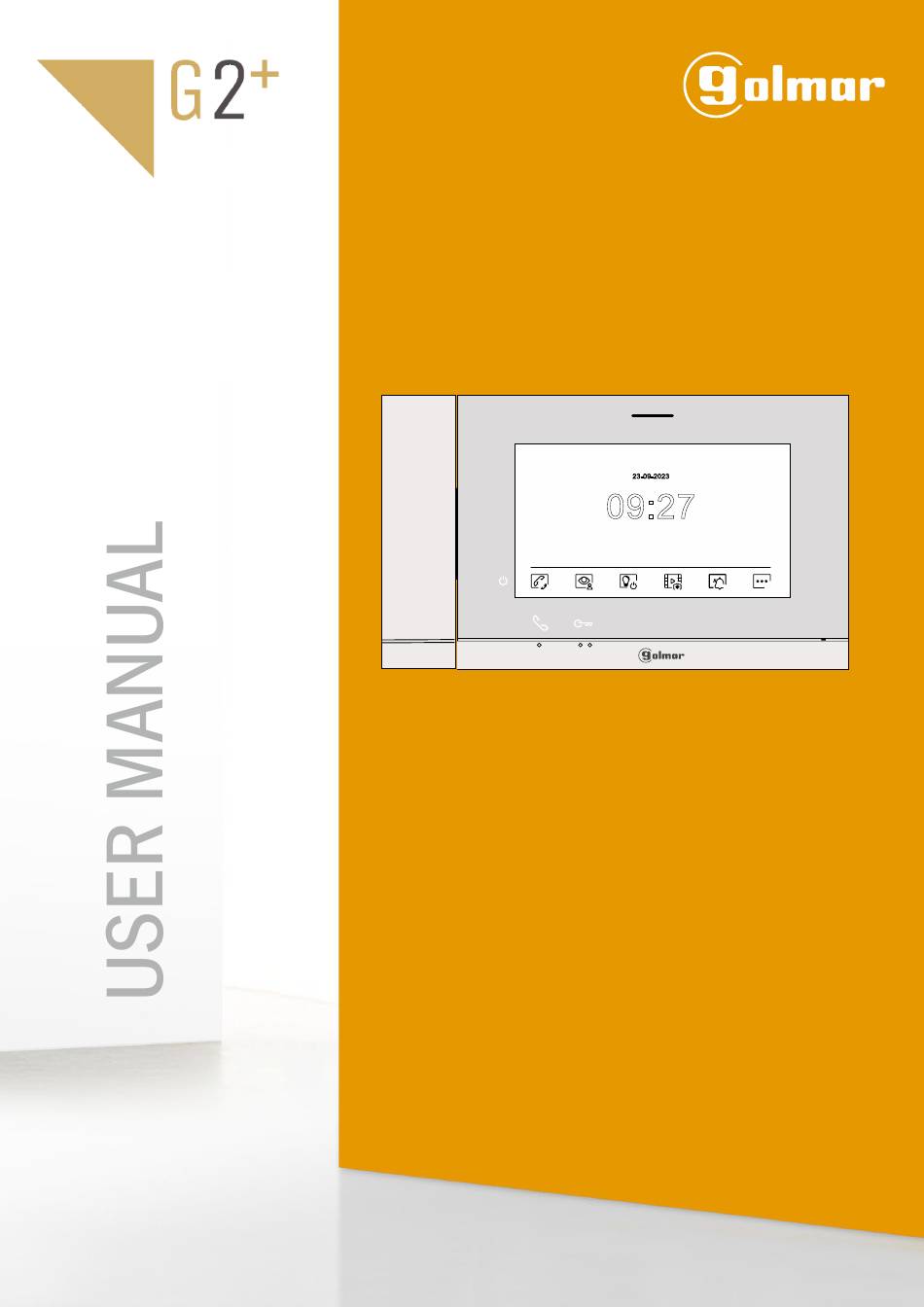

  • Page 1 TECHNOLOGY 23-09-2023 09:27 Art 7 /G2+ monitor Hands-free 2-wire installation N REV.0123 V01 TART 7 G2+ E...

  • Page 2: Table Of Contents

    - Do not place in humid, dusty or smoky locations, or near sources of heat. - Before connecting the device to the mains, check the connections between the door panel, power supply unit, distributors and monitors, se the Golmar RAP-GTWIN/HF cable (2x1mm²).

  • Page 3: Characteristics

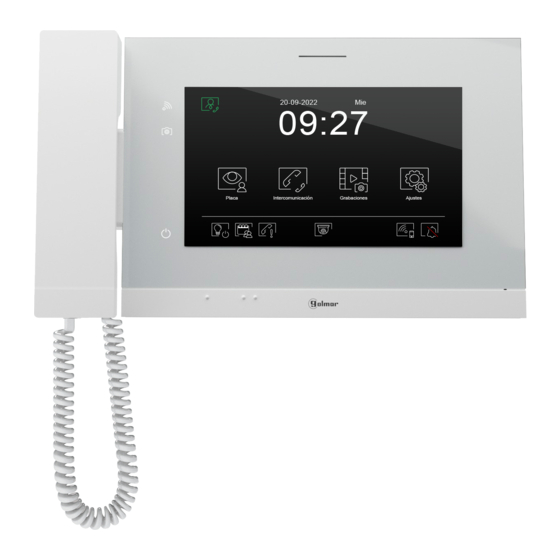

    ART 7T/G2+ MONITOR CHARACTERISTICS Hands-free monitor ( also allows communication with a handset). - 7" TFT colour screen. Push buttons/ hidden push buttons for access and selection of menu function. - Monitor with simple installation non-polarised 2 wires bus). - User menu. - Installer menu.

  • Page 4: Description

    ART 7T/G2+ MONITOR DESCRIPTION Hidden button pressing area DIP 1 to 7 codes Monitor address DIP 8 OFF = 0 EOL resistor ON = 1 A. Handset. Raised dots for the visually impaired B. Notification icons: In standby: Power on indicator. Above the raised dots for the visually impaired / the buttons that access the main menu.

  • Page 5: Installation

    ART 7T/G2+ MONITOR INSTALLATION Avoid dusty or smoky environments or locations near sources of heat. For proper installation, use the template supplied with the product. 1. Position the top of the template at a height of 1.65m. 2. If you are going to use an embedding box to pass the wiring through, make sure that it is in line with the holes corresponding to the box model chosen and fix the connector.

  • Page 6: Main Menu

    ART 7T/G2+ MONITOR MAIN MENU -09-20 09:27 Notification icons LED indicators Hidden button pressing area Raised dots for the visually impaired If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above the raised dots for the visually impaired) on the monitor.

  • Page 7: Settings Menu

    ART 7T/G2+ MONITOR SETTINGS MENU If the device is in standby (screen switched off), to access the main menu, press either of the 2 buttons (located above the raised dots for the visually impaired) on the monitor. Then press the hidden button located just below the icon to access to the “access...
  • Page 8 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Setting the monitor's date and time, as well as the presentation format: Press the button below icon to access the settings screen. Settings menu screen Go to the option to be modified by pressing the button/ hidden button below corresponding icons then select the option to modify by pressing the hidden button below icon...
  • Page 9 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Select the field to modify by pressing the button/ hidden button below corresponding icons , then press the hidden buttons below corresponding icons to adjust the value/format. Validate the changes made by pressing the button with icon Screen select option 2023 DD MM YY...
  • Page 10 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Automatically deleting images/videos, image recording mode, internal memory and Micro SD card: Press the hidden button below icon to access the settings screen. Settings menu screen In some countries, the law does not permit the storage of images or videos for more than 30 days after recording.
  • Page 11 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU In some countries, the law does not permit the storage of images or videos for more than 30 days after recording. The automatic deletion function performs this task for you. You can disable this function if your country's legislation does not require it, or under your responsibility.
  • Page 12 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Selecting the melody and call volume: Press the hidden button below icon to access the settings screen. Settings menu screen In order to identify the origin of the calls when you are not in front of the monitor, select different melodies and the desired call volume.
  • Page 13 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Select the "About" screen: Press the hidden button below icon to access the settings screen. Settings menu screen The 'About' screen provides information about the monitor, such as the software version, address and whether it is master or slave (M, S1, S2 or S3).
  • Page 14 ART 7T/G2+ MONITOR Continued from previous page. SETTINGS MENU Press the button below icon to return to the main menu. Settings menu screen Main menu -09-20 09:27...

  • Page 15: Door Panel Call Screen

    ART 7T/G2+ MONITOR DOOR PANEL CALL SCREEN 23-09-2023 18:25 This screen is displayed when you receive a call or when you press the button below icon of the main menu. During a call, icon displayed on the screen green color (during the call process).

  • Page 16: Communication Screen

    ART 7T/G2+ MONITOR COMMUNICATION SCREEN 23-09-2023 18:25 This screen is displayed during communication process. icon displayed on the screen red color (during the communication process) n the top centre of the screen, the date and time are shown and, on the left , the source of the image is displayed (door panel 1...

  • Page 17: Image And Communication Settings

    ART 7T/G2+ MONITOR IMAGE AND COMMUNICATION SETTINGS ing a call process press the hidden button below icon for 3 seconds to access the image settings menu Door panel call screen 23-09-2023 18:25 Pulsar durante 3 segundos The following settings menu will then appear (brightness, contrast, colour). Go to the option to be modified by pressing the button/ hidden button below icons...
  • Page 18 ART 7T/G2+ MONITOR Continued from previous page. IMAGE AND COMMUNICATION SETTINGS ing a communication process press the hidden button below icon for 3 seconds to access the image communication settings menu Door panel communication screen 23-09-2023 18:25 Pulsar durante 3 segundos The following settings menu will then appear (brightness, contrast, colour and monitor in communication volume).

  • Page 19: Intercom Menu

    ART 7T/G2+ MONITOR INTERCOM MENU Access the intercom menu as described on p. . From this menu, you can contact another monitor(s) in your apartment (internal intercom) or other apartments (external intercom). For external intercom, the monito of the apartment that makes the call and the monitor(s) of the apartment that receives the call must have the intercom function enabled (see p age 6 Select option...
  • Page 20 ART 7T/G2+ MONITOR Continued from previous page. INTERCOM MENU To make an external intercom call (to other apartments), go to the option with icon by pressing the button/ hidden button below corresponding icons and press the hidden button below icon access the code selection menu of the apartment with which you wish to communicate.
  • Page 21 ART 7T/G2+ MONITOR Continued from previous page. INTERCOM MENU The monitor making the call will sound a confirmation melody and will indicate the code of the apartment called and available call time, if you wish to cancel the call press the button below icon returning to the intercom menu.

  • Page 22: Recordings Menu

    ART 7T/G2+ MONITOR RECORDINGS MENU Access the recordings menu as described on p. . This menu displays the list of images saved in the memory of the device. If a Micro SD card is inserted in the monitor, images/videos will be recorded on the Micro SD card. Press the hidden button below icon to access the list of videos saved on the Micro SD card.
  • Page 23 ART 7T/G2+ MONITOR Continued from previous page. RECORDINGS MENU If a Micro SD card is inserted in the monitor, press the hidden button below icon to access the list of videos. In the list of recorded videos, those that have not been viewed are highlighted in black .
  • Page 24 ART 7T/G2+ MONITOR Continued from previous page. RECORDINGS MENU To return to the main menu, press the button below icon List of recorded videos screen 001 / 0 3 23-09-2023 8 21 23-09-2023 1 :17: 0 23-09-2023 1 :1 : 1 0 21 23-09-2023 1 :1 :10...

  • Page 25: "Do Not Disturb" Menu

    ART 7T/G2+ MONITOR Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENU “Do not disturb" mode settings, "automatic door opening" function and activate/deactivate "intercom between apartments": Access the do not disturb menu as described on page 6. “Do not disturb”...
  • Page 26 MONITOR ART 7 /G2+ Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENU To activate and set a period of time for the automatic door opening (after 3 seconds of receiving a call from the door panel), go to the option with icon by pressing the button/ hidden button below corresponding...

  • Page 27: Cleaning The Monitor

    MONITOR ART 7 /G2+ Continued from previous page. PERIOD OF TIME FOR 'DO NOT DISTURB' MODE MENU If the "automatic door opening" mode has been activated (see page 26), icon will be displayed at the top left of the main menu screen and the notification icon will blink.

  • Page 28: Special Codes

    ART 7T/G2+ MONITOR SPECIAL CODES The enabling of some functions, as well as the modification of some factory parameters, can be carried out by entering special codes. To do so, the installer menu must be accessed from the monitor. Go to the 'About' screen in the Settings menu (p.
  • Page 29 ART 7T/G2+ MONITOR Continued from previous page. SPECIAL CODES Video sources available on a monitor (configure only on the master monitor). Visible Not isible Factory setting Door panel 1 0111 0110 0111 Door panel 2 0121 0120 0120 Door panel 3 0131 0130 0130...
  • Page 30 ART 7T/G2+ MONITOR Continued from previous page. SPECIAL CODES LED lights for night viewing (Door panel ) during a call or communication process. (Configure only on the master monitor). Automatic Always ON Always Factory setting 1450 1451 1452 1450 (automatic) Activation times of the outputs (Door panel ).
  • Page 31 ART 7T/G2+ MONITOR Continued from previous page. SPECIAL CODES (GENERAL DOOR PANELS) General door panels video sources available on a monitor (configure only on the master monitor). Visible Not isible Factory setting General door panel 1 1111 1110 1110 General door panel 2 1121 1120 1120...

  • Page 32: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
