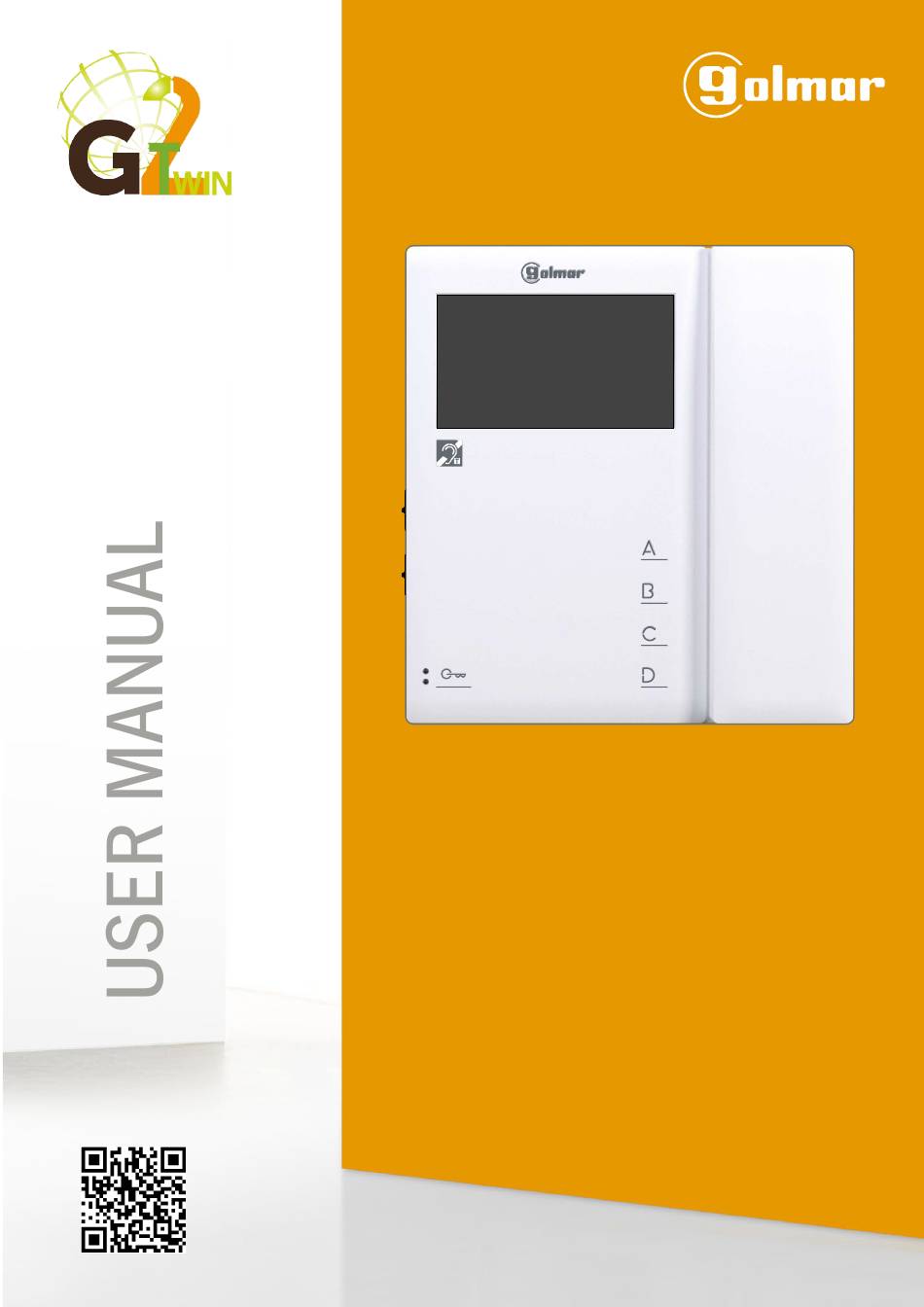

TEKNA-S GTWIN
MONITOR
Code 50120265
REV.0 1
3 9
TTEKNA S
GTWIN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEKNA-S GTWIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for golmar TEKNA-S GTWIN

Summary of Contents for golmar TEKNA-S GTWIN

  • Page 1 TEKNA-S GTWIN MONITOR Code 50120265 REV.0 1 TTEKNA S GTWIN...

  • Page 2: Table Of Contents

    TEKNA-S GTWIN MONITOR INTRODUCTION First of all, we thank and congratulate you for purchasing this product manufactured by Golmar. Our commitment to achieving the satisfaction of customers like you is manifested through our ISO-9001 certification and the manufacture of products like the one you have just purchased.

  • Page 3: Characteristics

    TEKNA-S GTWIN MONITOR CHARACTERISTICS - Monitor for Gtwin installation. - 4.3” TFT colour screen. - Monitor with simple installation (non-polarised 2 wire BUS). - Enables communication with hearing aids equipped with T-mode, making conversation possible (inductive loop). - Function and programming access buttons (to customise monitor functions).

  • Page 4: Description Of The Connection Terminals

    TEKNA-S GTWIN MONITOR DESCRIPTION OF THE MONITOR Description of the Tekna-S Gtwin monitor: TEKNA-S GTWIN 12050225 V 15090200000 ADDRESS INTER SLAVE MASTER ESCALERA PISO PUERTA STAIR FLOOR DOOR ATENCIóN Alta tensión. No abrir la tapa. Manipular sólo por personal del servicio técnico.

  • Page 5: Function Buttons

    2 long audible tones and the monitor's exit from programming mode. Communication with hearing aids: The handset of the Tekna-S Gtwin monitor enables communication with hearing aids equipped with T-mode, making conversation possible (inductive loop).

  • Page 6: Sw1 Configuration Switch

    TEKNA-S GTWIN MONITOR MONITOR SETTINGS SW1 configuration switch: configuration switch is located at the back of the monitor. It enables the monitor to be configured by assigning it a user code address (apartment). 1 2 3 4 5 6 7 8 9 10...

  • Page 7: Monitor Settings

    TEKNA-S GTWIN MONITOR MONITOR SETTINGS Continued from previous page. USER 55 USER 56 USER 57 USER 58 USER 59 USER 60 USER 61 USER 62 USER 63 USER 64 USER 65 USER 66 USER 67 USER 68 USER 69 USER 70...

  • Page 8: Sw2 Configuration Switch

    TEKNA-S GTWIN MONITOR MONITOR SETTINGS SW2 configuration switch: configuration switch is located at the back of the monitor. It enables the monitor to be configured as master/slave. 1 2 3 4 5 6 7 8 9 10 INT: Internal code of the monitor/telephone to set as master/slave.

  • Page 9: Installing The Monitor In A Wall Mounting Connector

    TEKNA-S GTWIN MONITOR INSTALLING THE MONITOR IN A WALL MOUNTING CONNECTOR Avoid dusty or smoky environments or locations near sources of heat. Positioning the wall mounting connector: The top of the connector must be positioned at a height of 1.60m. The minimum distance between the sides of the connector and the closest object must be 5cm.

  • Page 10: Installing The Monitor In An Embedding Box

    TEKNA-S GTWIN MONITOR INSTALLING THE MONITOR IN AN EMBEDDING BOX Avoid dusty or smoky environments or locations near sources of heat. Location of the embedding box: Make a hole in the wall to position the top of the universal embedding box at a height of 1.60 m from the ground. The minimum distance between the sides of the embedding box and the closest object must be 5 cm.

  • Page 11: Advanced Programming (Monitor Functions)

    TEKNA-S GTWIN MONITOR ADVANCED PROGRAMMING (MONITOR FUNCTIONS) Advanced programming of the functions of the Tekna-S Gtwin monitor: Advanced programming enables the monitor's default settings to be changed: With the monitor in standby and the handset on the hook: Press button...
  • Page 12 TEKNA-S GTWIN MONITOR OPTIONAL PROGRAMMING (ADDITIONAL MONITOR FUNCTIONS) Intercom function of the Tekna-S Gtwin monitor: In the Gtwin system, a monitor/telephone button can be programmed to call another apartment in the same Building (channel) or to call another monitor/telephone in the same apartment .
  • Page 13 TEKNA-S GTWIN MONITOR OPTIONAL PROGRAMMING (ADDITIONAL MONITOR FUNCTIONS) Continued from previous page. 4. Or go to a door panel and press the call button of apartment B; the monitor/telephone in programming (apartment A) emits a completed programming beep. While this operation is being carried out, the monitors/telephones in apartment B sound.
  • Page 14 TEKNA-S GTWIN MONITOR OPTIONAL PROGRAMMING (ADDITIONAL MONITOR FUNCTIONS) Intercom function in the same apartment: To programme a monitor/telephone (internal device C1) to call another monitor/telephone (device C2) in the same apartment: Without picking up the handset. Press and hold button for more than 5 seconds: It emits 3 short tones and the slow blinking of the status LED (yellow) confirms entry into programming mode.
  • Page 15 TEKNA-S GTWIN MONITOR OPTIONAL PROGRAMMING (ADDITIONAL MONITOR FUNCTIONS) Continued from previous page. 5. Check the programmed function: lift the handset of the monitor/telephone (device C1) and press the programmed button. On the monitor/telephone (device C2), a ringtone will be heard, pick up the handset and check communication.

  • Page 16: Optional Connections

    Button for receiving calls from the apartment front door: The Tekna-S Gtwin monitor features as standard the ability to receive calls from the apartment front door. This feature precludes the need to use the bell by positioning a button between the 'CP' terminals of the monitor.

  • Page 17: Additional Call Repeater With Sar-12/18 Relay Unit

    Monitors/telephones in parallel (input/output) from a bypass of the D4L-Gtwin distributor: Max. connection 4 monitors/telephones in one apartment. Tekna-S Gtwin monitor: The EL566 in/out unit must be inserted in all of the intermediate monitors and leave the end of line (Z) inserted in the last monitor (see p. 8).

  • Page 18: Cleaning The Monitor

    TEKNA-S GTWIN MONITOR CLEANING THE MONITOR - Do not use solvents, detergents or cleaning products that contain acids, vinegar or abrasive components. - Use a soft damp lint-free cloth with water. - Always wipe the monitor in the same direction, from top to bottom.

  • Page 19: Wiring Diagram

    To connect the FA-Gtwin power supply to the filter and line protector, see the TGTWIN SYSTEM MANUAL, p. 44. To connect the secondary AC lock release (Golmar), see the TGTWIN SYSTEM MANUAL, p. 45. Main panel Video door entry system...

  • Page 20: Compliance

    C/ Silici, 13 08940- Cornellá de Llobregat SPAIN Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
