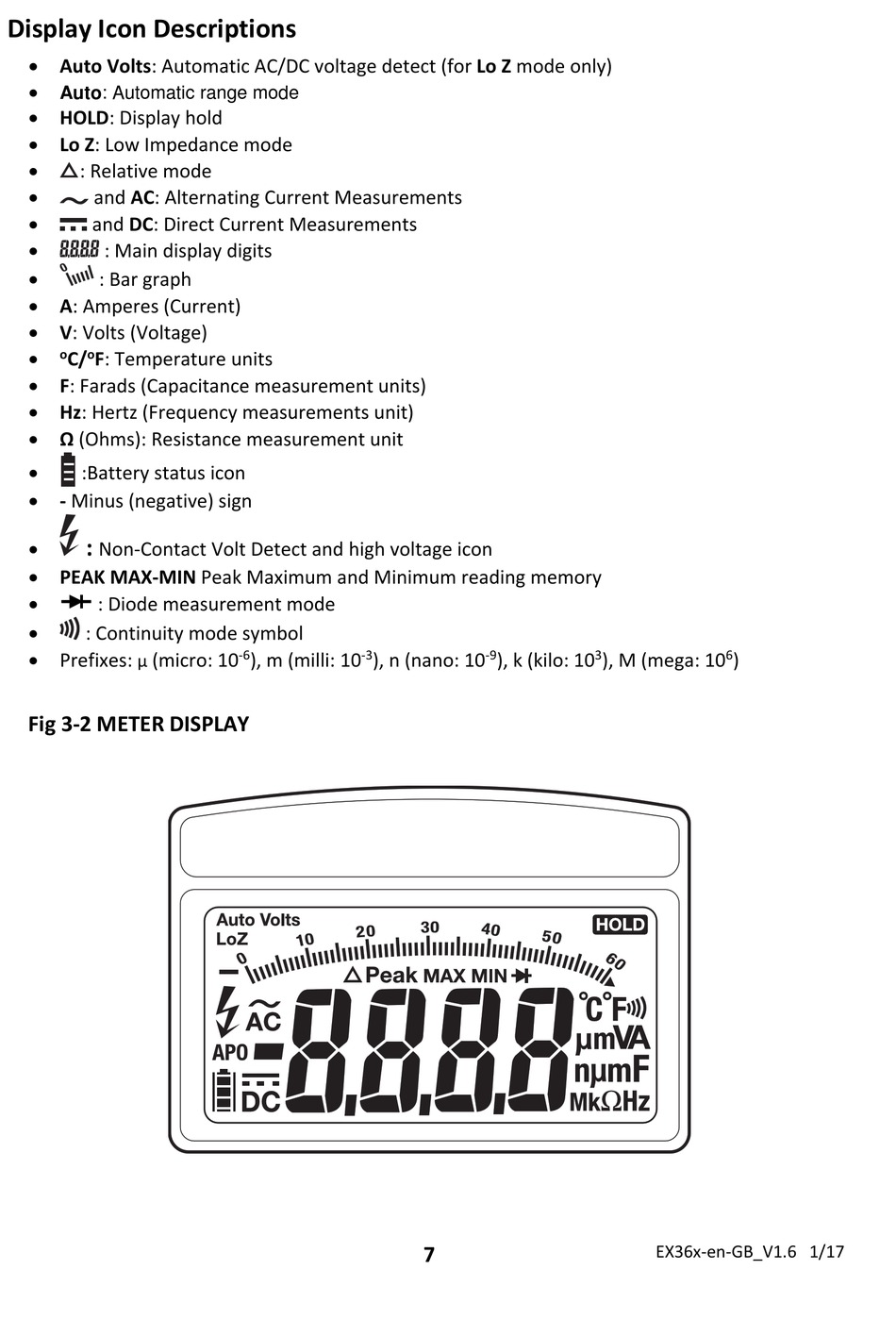

Display Icon Descriptions
 Auto Volts: Automatic AC/DC voltage detect (for Lo Z mode only)

Auto: Automatic range mode
 HOLD: Display hold
 Lo Z: Low Impedance mode

: Relative mode

and AC: Alternating Current Measurements

and DC: Direct Current Measurements

: Main display digits

: Bar graph
 A: Amperes (Current)
 V: Volts (Voltage)

o o
C/ F: Temperature units
 F: Farads (Capacitance measurement units)
 Hz: Hertz (Frequency measurements unit)
 Ω (Ohms): Resistance measurement unit

:Battery status icon
 ‐ Minus (negative) sign

:
Non‐Contact Volt Detect and high voltage icon
 PEAK MAX‐MIN Peak Maximum and Minimum reading memory

: Diode measurement mode

: Continuity mode symbol
 Prefixes:
(micro: 10
µ
Fig 3‐2 METER DISPLAY
‐6 ‐3
), m (milli: 10 ), n (nano: 10
‐9
), k (kilo: 10
7
3 6
), M (mega: 10 )
