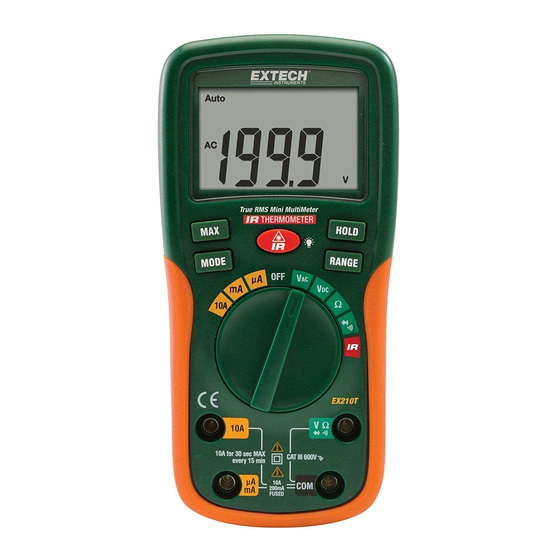

Extech EX210T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX210T and is the answer not in the manual?

Questions and answers

Related Manuals for Extech Instruments EX210T

Summary of Contents for Extech Instruments EX210T

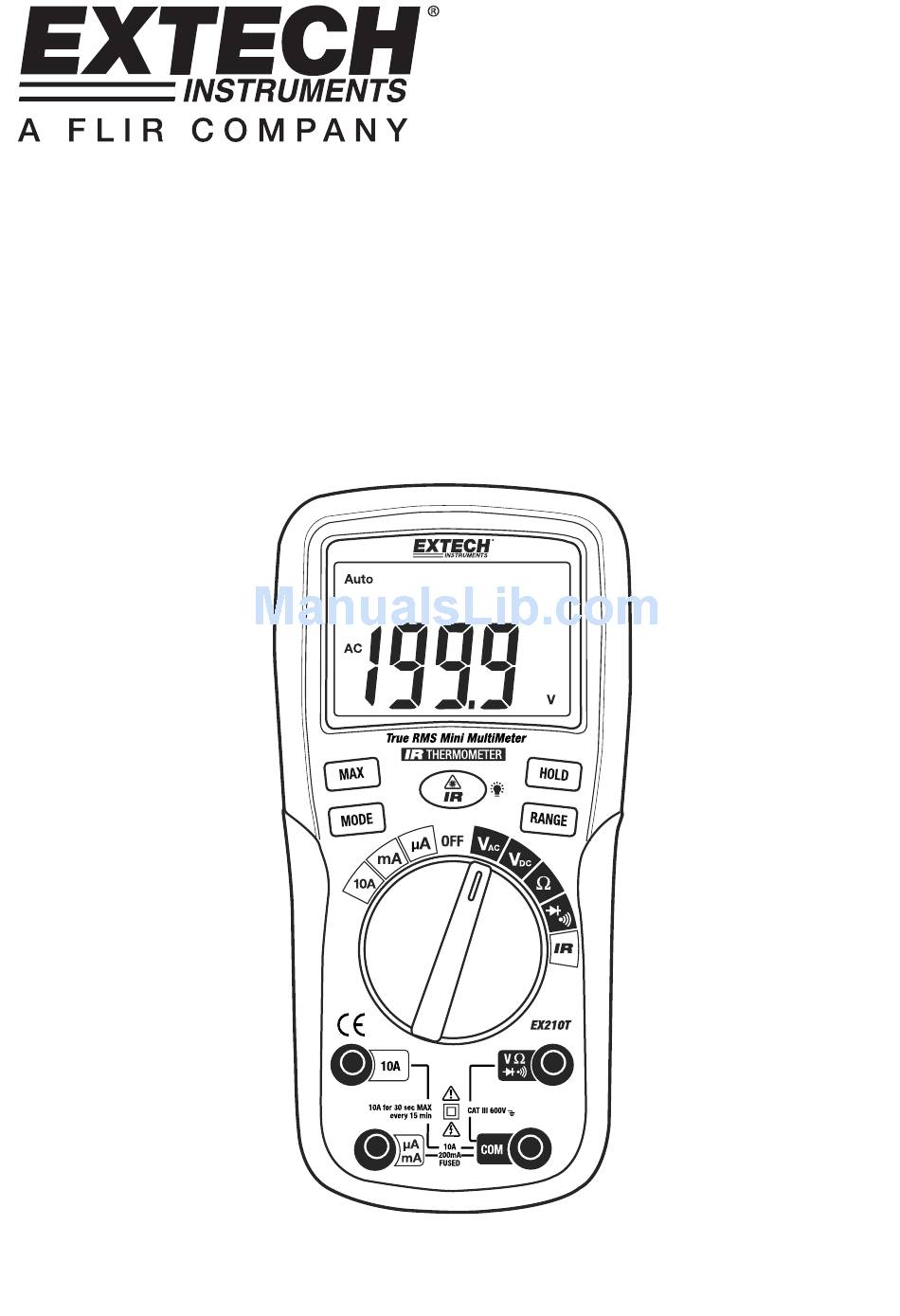

  • Page 1 User Guide True RMS Multimeter with IR Thermometer Extech EX210T...
  • Page 2 Introduction Thank you for selecting the Extech EX210T True RMS Autoranging Multimeter. This meter measures AC/DC Voltage, AC/DC Current, Resistance, Diode Test, and Continuity plus non-contact InfraRed Temperature. Proper use and care of this meter will provide many years of reliable service. Please visit the Extech Instruments website (www.extech.com) to check for the latest version of this User Guide.
  • Page 3 Expired or damaged batteries can leak and can be hazardous to skin. Use suitable hand gloves in such cases.  Do not short-circuit the battery. Do not place the battery near a fire.  Never mix battery types. Always install new batteries of the same type. EX210T-EU-EN V1.1 8/12...

  • Page 4: Safety Instructions

    NEVER operate the meter unless the back cover and the battery and fuse covers are in place and fastened securely. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. EX210T-EU-EN V1.1 8/12...
  • Page 5 (10 ) (volts, amps) Amps kilo (10 ) (ohms) mega (10 ) (ohms)  Ohms Volts Alternating current Direct current ºF Degrees Fahrenheit ºC Degrees Centigrade Maximum AUTO Autoranging HOLD Display hold SCAN IR temperature in progress EX210T-EU-EN V1.1 8/12...

  • Page 6: Ac/Dc Voltage Measurements

    10A jack. 6. Connect the test leads in series with the circuit under test. 7. Apply power to the circuit. 8. Read the current in the display. EX210T-EU-EN V1.1 8/12...

  • Page 7: Resistance Measurements

    4. Touch the test probes to the diode under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL” in both polarities. EX210T-EU-EN V1.1 8/12...
  • Page 8 The meter will not make measurements through glass steam, dust, and smoke. To find a hot spot, aim the meter outside the area of interest then scan across (in an up and down motion) until the hot spot is located. EX210T-EU-EN V1.1 8/12...

  • Page 9: Autoranging/Manual Range Selection

    If no button is pressed the auto sleep feature will place the meter in sleep mode after approximately 15 minutes of operation. If this happens, press any button to wake the meter or switch the meter to OFF if it no longer in use. EX210T-EU-EN V1.1 8/12...

  • Page 10: Maintenance

    Disposal in household trash or refuse is prohibited! Other Battery Safety Reminders  Never dispose of batteries in a fire. Batteries may explode or leak.  Never mix battery types. Always install new batteries of the same type. EX210T-EU-EN V1.1 8/12...

  • Page 11: Specifications

    0.001 A (3.0% reading + 5 digits) 10 A 0.01 A Note: 10A for 30 sec max NOTE: Accuracy is stated at 18 C to 28 C (65 F to 83 F) and less than 75% RH. EX210T-EU-EN V1.1 8/12...
  • Page 12 IEC/EN 61010-1:2001 and IEC/EN 61010-031:2002 to Category III 600V; Pollution Degree 2. Approvals Copyright © 2012 Extech Instruments Corporation (a FLIR company) All rights reserved including the right of reproduction in whole or in part in any form. ISO-9001 Certified www.extech.com...
