3. Descriptions

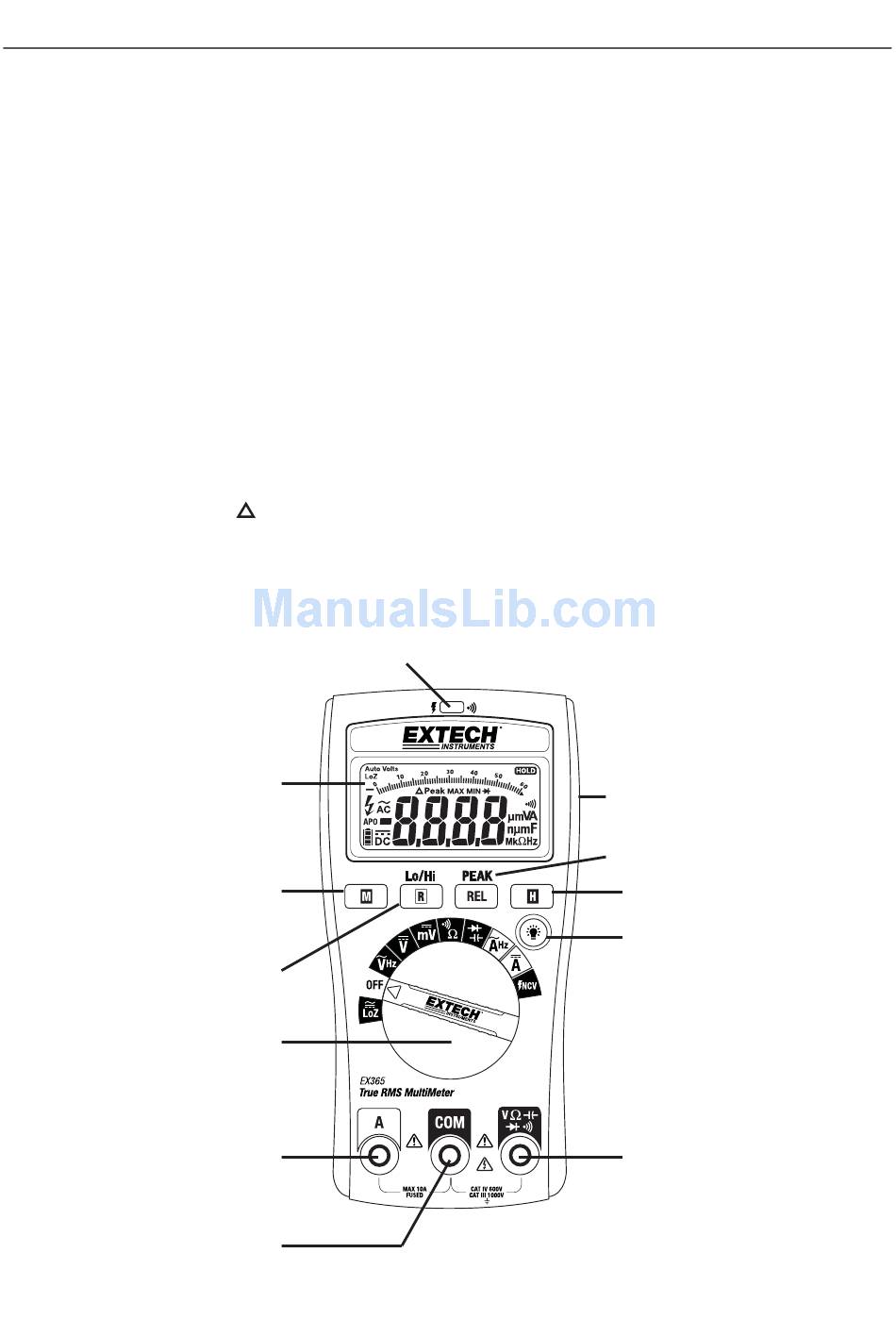

Meter Description (EX365 pictured)
1. Non‐Contact Voltage Detector and Continuity alert light
2. LCD multi‐function display
3. M (MODE) button (also
4. R RANGE and Lo/Hi button
5. Rotary function select switch
6. Positive input terminal (10A Current) for EX365 only
7. Common (‐) input terminal
8. Positive input terminal: Voltage, Resistance, Capacitance, Temperature (EX363), and µA
(EX363)
9. LCD Backlight button
10. H Data Hold button
11. PEAK MAX‐MIN / REL (RELATIVE) button
12. Battery compartment on back of meter
o o
C/ F button on EX363)
Fig 3‐1 METER DESCRIPTION
1
2
3
4
5
6
7
6
12
11
10
9
8
EX36x‐en‐GB_V1.6 1/17
