4.2.3 General Setup for the EtherNet/IP (CPU board)

4.2.4 Ethernet Setting

4 EtherNet/IP Function Setting
4.2 Setup Procedure

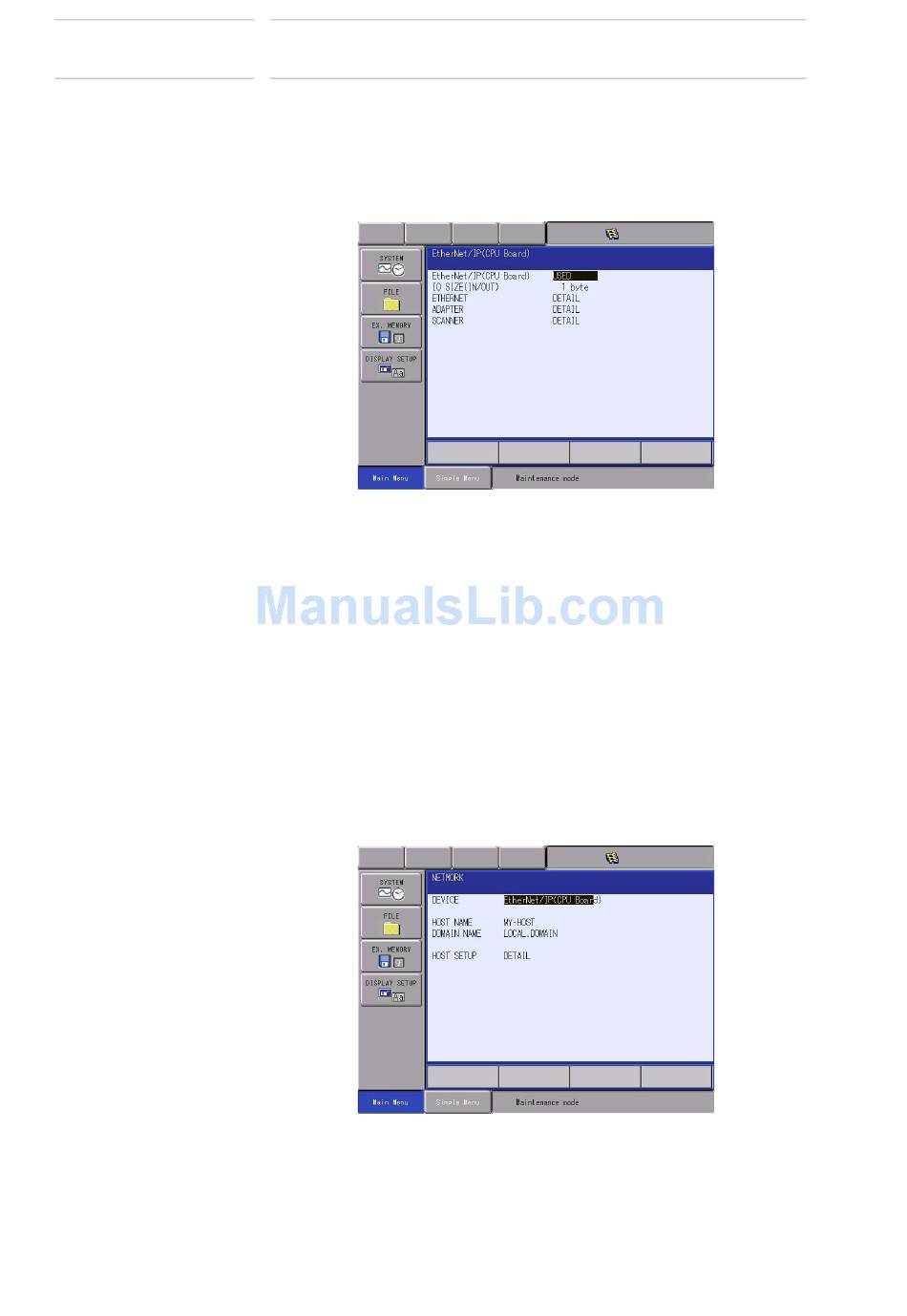

Indicate the window general setup for the EtherNet/IP (CPU board).
1. Select {EtherNet/IP (CPU board)} in the EtherNet/IP (CPU board)
SETUP window.
– The EtherNet/IP (CPU board) SETUP window appears.
– (Description of each setting item)
{IO size (IN/OUT)} displayed on this window shows the total of IO sizes
set for adaptor and scanner. The IO size cannot be set on this window.
The detailed settings for the EtherNet/IP (CPU board) are performed at
{EtherNet/IP}, {ADAPTER}, and {SCANNER} line.
For EtherNet/IP communication, settings such as the IP address for
EtherNet communication are required. This chapter describes how to
configure those settings.
1. Select {EtherNet/IP} in the EtherNet/IP (CPU board) general setup
window.
– The NETWORK window appears.
– For details on each setting item, see the last part of this chapter.
