IMPORTANT !
The fuel to be used is only wood under 25% humidity content (wood dried min. 1 year).
The outlet temperature always has to be over 60°C. This can be reached by obligatory connection of the
3-way thermic valve ESBE VTC 512, VTC 531 or Laddomat 21, which blocks the boiler temperature fall
under the 60°C level if the boiler is connected to the central heating system through an appropriate
number of the CAS accumulation tanks or manual 4-way mixing valve if the boiler is connected direct to
the central heating system.
NOTE:
During the process of refilling the fuel the main switch of the boiler and the button ''START/STOP''have
to be turned on.
Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and
diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products
as deemed to be required and useful without any prior notification.
Centrometal d.o.o. Glavna 12, 40306 Macinec, Croatia
central tel: +385 40 372 600, fax: +385 40 372 611
servce tel: +385 40 372 622, fax: +385 40 372 621
www.centrometal.hr
e-mail: servis@centrometal.hr
Centrometal d.o.o. - Glavna 12, 40306 Macinec, Croatia, tel: +385 40 372 600, fax: +385 40 372 611

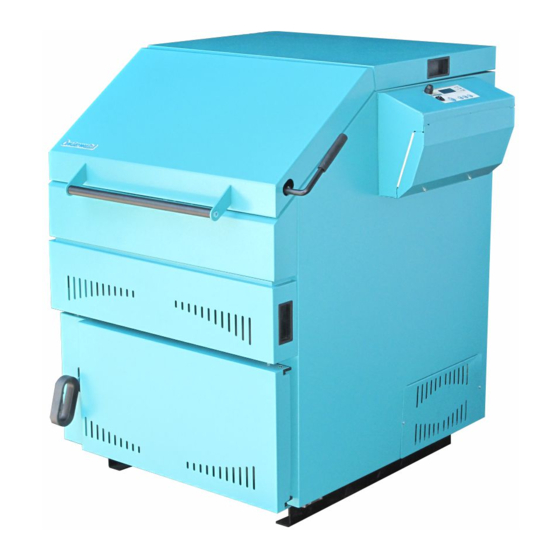

TECHNICAL INSTRUCTIONS
for installation, use and maintenance
of hot water boiler
and installation of additional equipment
HEATING TECHNIQUE
TUCPlus-10_1/2010-eng
HEATING TECHNIQUE
BioSolid

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioSolid 17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Centrometal BioSolid 17

  • Page 1 Centrometal d.o.o. shall not be responsible for possible incorrect data caused by printing errors or error made in transcription and all figures and diagrams are for explanatory purposes only and relevant adjustment have to be made at the spot. In any case, it reserves the right to modify its products as deemed to be required and useful without any prior notification.
  • Page 2: Errors And Possible Causes

    Errors and possible causes Technical data Technical data 12.0. ERRORS AND POSSIBLE CAUSES TYPE BioSolid 17 BioSolid 26 BioSolid 34 ERROR WHAT TO DO Nominal heat output (kW) E1-1 - short circuit of the boiler sensor Boiler class Replace the boiler sensor...
  • Page 3 Figure 10. Metal sheets for grate Metal sheet for grate Grate BioSolid 26 / 34 : Metal sheet for grate Grate BioSolid 17: BioSolid 26 i BioSolid 34 BioSolid 17 Metal sheet for grate Grate LEGEND: KA - Heat exchanger connection - draining to the sewage...
  • Page 4: Boiler Description

    Boiler cleaning and maintenance General, boiler description, delivery, additional equipment 1.0. GENERAL Figure 9. Openings for cleaning flue gas chamber Hot water boiler BioSolid have modern design, is made of proofed high-quality materials, welded by state-of-the art technology and meets all requirements for connection to central heating system.
  • Page 5 Boiler cleaning and maintenance Boiler positioning and assembly 5.Cleaning of the fan box: 2.0. BOILER POSITIONING AND ASSEMBLY unscrew two M8 nuts and remove the fan box lid. The boiler's body is covered by the casing with an thermal insulation on wooden box remove ash and impurities from the fan box.
  • Page 6: Boiler Cleaning And Maintenance

    Base protection mounting Boiler cleaning and maintenance 2.1. BASE PROTECTION MOUNTING 11.0. BOILER CLEANING AND MAINTENANCE Base protection (Page 3, IP) coming with the boiler and it is necessary set Protective gloves must be used (see Figure 7). in the provided place after boiler positioning (see Figure 1.1.). Ash remaining in boiler after solid fuel firing should be disposed into metal containers with a cover.
  • Page 7: Connection To Chimney

    Primary air setup Make up air opening, connection to chimney 10.1. PRIMARY / SECONDARY AIR SETUP 3.0. MAKE UP AIR OPENING For the regulation primary or secondary air use MANUAL PRIMARY / Each boiler room must be equipped with an opening for supply of make up air SECONDARY AIR REGULATOR, (see Figure 8).
  • Page 8 Connection to chimney, selection of a chimney Boiler use FUEL REFILLING PHASE: Figure 2. Possible ways of connections of boilers BioSolid to chimney - After the regulation starts to display the lack of fuel , the fuel should be refilled (if it is necessary to continue the heating process)-BEFORE REFILLING, Thermal insulation Thermal insulation 10mm...
  • Page 9 Boiler use Installation of boiler to the central heating installation Check if the pump of heating system is connected to boiler control unit BioSolid. 5.0. BOILER INSTALLATION TO CENTRAL HEATING SYSTEM Check whether boiler control unit BioSolid is connected to power supply.Fuel with max.
  • Page 10: Boiler Use

    Closed heating system Fuel supply method, boiler use Figure 6. Fuel supply method Installation of boiler BioSolid to closed heating system Scheme 1a. An example of building in of accumulation tank into the central heating system required under EN 303-5 Note: For opening the boiler doors see point 8.0.
  • Page 11 Boiler thermal protection Start up 5.1.1. BOILER THERMAL PROTECTION - BioSolid IGNITION PHASE AND FIRST FUEL CHARGING: - Open boiler door of the combustion chamber (and close bottom if they open) (see According to European EN standards, boiler thermal protection must be installed in closed heating system.
  • Page 12: Start Up The Boiler

    Open heating system Start up 5.2. BOILER INSTALLATION TO OPEN HEATING SYSTEM 9.0. START UP THE BOILER If boiler is installed in an open central heating system, it is recommended that system is made Boiler must not be used in flammable and explosive environment. according to Scheme 3a or 3b.
  • Page 13 Boiler door opening method Boiler control unit 6.0. CONTROL OF BOILER TEMPERATURE Figure 5.4. Use the zipper when closing boiler door of the combustion chamber Pump of heating system P1 (see scheme 1 and 2) should be connected to boiler control unit BioSolid which control pump operation and protects boiler against subcooling.
  • Page 14 Setting the boiler operating parameter Boiler door opening method -Lower boiler door 6.1.2. VIEWING THE MEASURED TEMPERATURE 1. Pull the handle of the lower boiler door RDV in the direction of the arrow UP (Figure 5.2). For view the measured temperature using buttons ''-'' or ''+'': 2.
  • Page 15 Other parameters of the boiler operation, resetting to factory setting, relay test Door opening method FP03 - Select operation (1) with or (0) without tempertaure sensor of heating 8.0. BOILER DOORS OPENING METHOD accumulation tank, factory setting on (1). Protective gloves are obligatory (Figure 7.)! - turn off (0) the main switch (0/1).
  • Page 16: Possible Errors

    Power suply interruption, posibile errors Connection to electrical installations 7.0. CONNECTING BOILER TO ELECTRICAL INSTALLATIONS 6.1.5. ELECTRIC POWER SUPPLY INTERRUPTION All electrical works must be performed by a certified professional in accordance If the electric power supply is interrupted while the boiler is operating (ON) after the with valid national and European standards.
