Wallbox Commander
User Guide
WBCM-UG-002-EN
1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Commander and is the answer not in the manual?

Questions and answers

Related Manuals for Wallbox Commander

Summary of Contents for Wallbox Commander

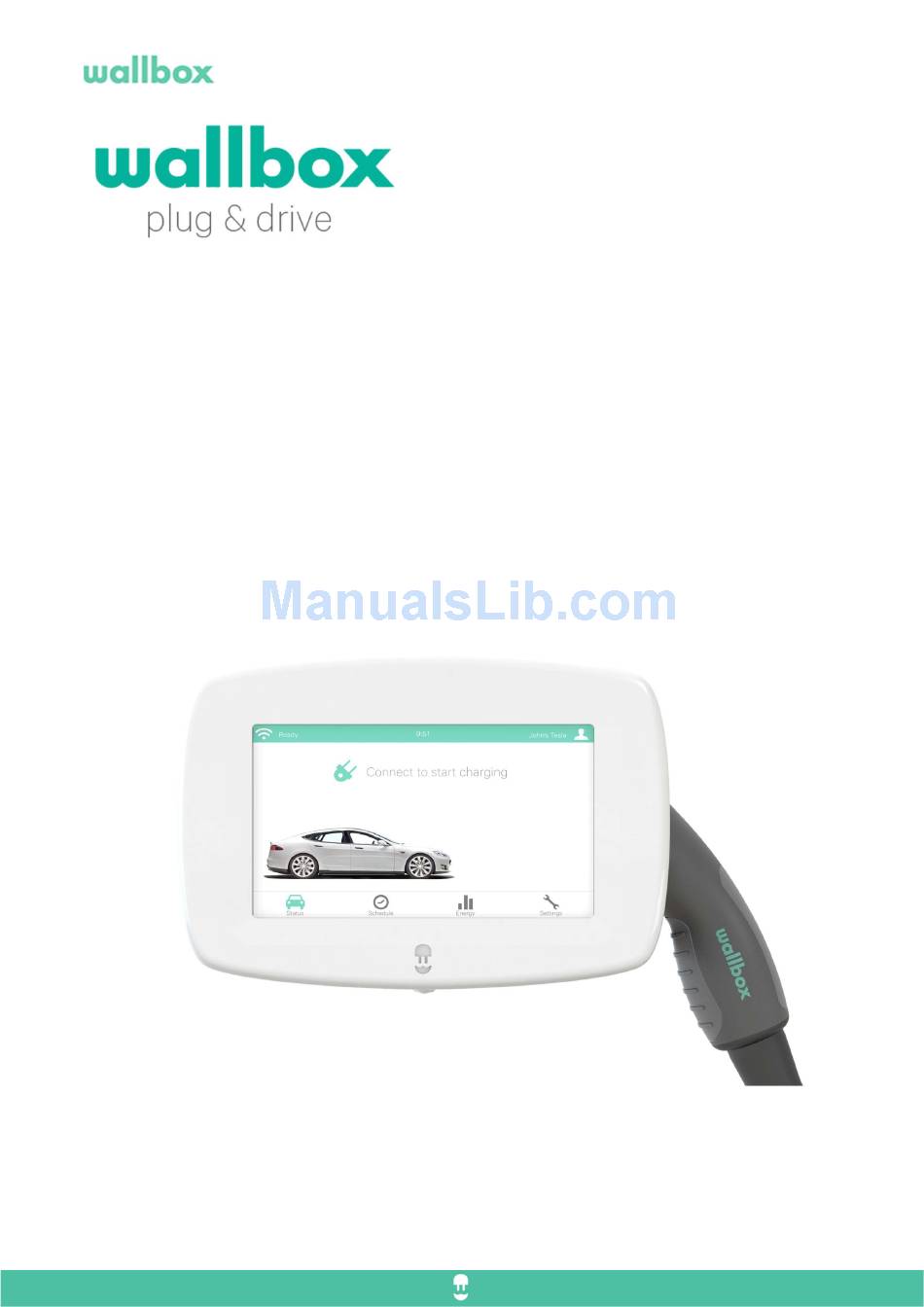

  • Page 1 Wallbox Commander User Guide WBCM-UG-002-EN 1/11...
  • Page 2 This user guide will show you how to charge and will also give you the basic functionalities for your interaction with the Wallbox Pulsar. Get used to your Wallbox Commander Before you start, please take a quick look over your Wallbox Commander WBCM-UG-002-EN 2/11...

  • Page 3: Table Of Contents

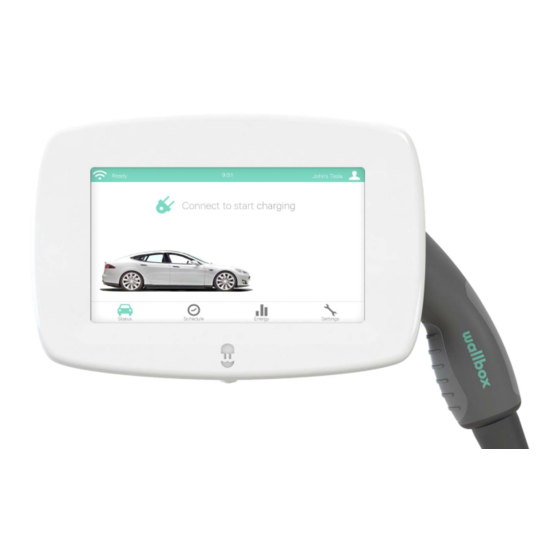

    Once your Wallbox Commander is ready and powered on, you will operate through a 7inch touchscreen display. The software is specially designed to fully control and manage the charging process by simple commands, but remember that you will always be able to just plug and charge, it can be as simple as that.

  • Page 4: Charge Your Vehicle

    - The quantity of kilometres that are charged per one hour 2. Choose your vehicle Your wallbox Commander have a database of every electric vehicle that allows to show detailed information of the charging capacity, In order to see detailed information about the charging of your vehicle, customize your wallbox by selecting your vehicle model/brand.

  • Page 5: Connect To An Internet Network

    3. Connect to an internet network 3.1 Connect to a Wi-Fi network If you connect your Wallbox Commander to a Wi-Fi network, you will be able to update your charger and this will allow you to have access to all myWallbox advanced features and services.

  • Page 6: Create A Schedule

    It is very common to schedule your charges for reasons ranging from available power, efficiency, costs or lifestyle programming. The Wallbox Commander uses a simple and intuitive interface that lets you define different hour intervals that can repeat daily or weekly.

  • Page 7: Lock / Unlock

    Go to: 7. Lock / Unlock When extra protection is needed you can secure your Wallbox Commander from non-authorized use. It is as simple as configuring a password. Once you have set up this numeric PIN, simply enter your passcode to unlock your device in the screen dialog.

  • Page 8: Download The App

    9. Download the app To download the app, scan de QR code or click on the image. Android Once downloaded and installed the app, it will ask for your myWallbox user name and password. You will access to the main screen of the app Real-time information Speed load setting Lock and unlock...

  • Page 9: Troubleshooting

    If the charger or the vehicle detects an elevated temperature, the power is reduced Charging cable plug cannot be disconnected The charge has not been ended by the vehicle. End the charging session from the vehicle or from the Wallbox. WBCM-UG-002-EN 9/11...

  • Page 10: Wi-Fi

    10.2 Wi-Fi No Wi-Fi Coverage in the installation location If it is not possible to install the Wallbox Commander in another location, a Wi-Fi range extender could be a solution. If no Wi-Fi connection is possible, your Wallbox can be connected to internet with an ethernet cable.

  • Page 11: Logs

    10.3 Logs No charging logs appear on myWallbox / app No correct communication between the charger and Wallbox servers, please do a restore of the charger. Go to: Settings -> System -> Restore WBCM-UG-002-EN 11/11...
