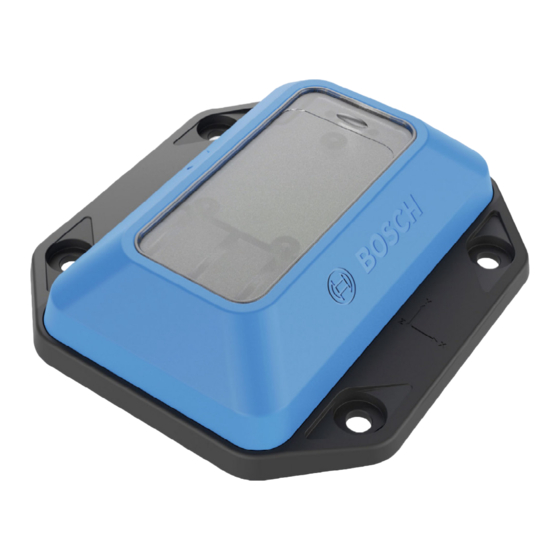

Transport data logger
Hide thumbs Also See for TDL 110:
Table of Contents

Advertisement

Quick Links

Transport Data Logger TDL 110
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDL 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bosch TDL 110

Summary of Contents for Bosch TDL 110

  • Page 1 Transport Data Logger TDL 110 Operating Instructions...

  • Page 2: Table Of Contents

    Transport Data Logger | TDL 110 2 | 21 Table of Contents 1 Introduction and Intended Use 2 Safety and Environment 2.1 Radio Frequency Radiation Exposure and Further Information 2.2 Disposal 3 Technical Specifications 3.1 Measured Parameters 3.2 Device Specification 3.3 Operating Conditions...
  • Page 3 Transport Data Logger | TDL 110 3 | 21 List of Figures Figure 1: Overview TDL Figure 2: Mounting the TDL using screws Figure 3: Activating the TDL Figure 4: Search for TDL and list of found TDL Figure 5: Configuring the TDL...

  • Page 4: Transport Data Logger | Tdl 110

    4 | 21 About these Operating Instructions Ensure that the TDL 110 is working correctly by: ▶ Reading these instructions carefully before using the TDL 110. ▶ Always following these instructions. Caution Indicates a hazardous situation in which the user must proceed as noted.

  • Page 5: Introduction And Intended Use

    Transport Data Logger | TDL 110 5 | 21 1 Introduction and Intended Use By being attached to the shipment and measuring and recording relevant parameters like temperature, humidity, tilt and shock, the TDL makes the delivery process of goods visible and traceable.

  • Page 6: Safety And Environment

    Transport Data Logger | TDL 110 6 | 21 2 Safety and Environment Caution Lithium Battery! The device contains a lithium battery. Handling the battery incorrectly could cause a fire. ▶ Use only original or approved batteries. ▶ Read and follow the valid transportation regulations.

  • Page 7: Technical Specifications

    Transport Data Logger | TDL 110 7 | 21 3 Technical Specifications 3.1 Measured Parameters ▶ Temperature ▶ Humidity ▶ Tilt ▶ Shock 3.2 Device Specification Attribute Value Dimension (W x H x D): 91 mm x 102 mm x 25 mm...

  • Page 8: Accuracies

    Transport Data Logger | TDL 110 8 | 21 3.5 Accuracies Attribute Value Temperature: ± 0.5 °C (0 °C … +60 °C) ± 1 °C (-25 °C … +80 °C) Humidity: ± 5 % rH typical ± 10 % rH maximum (20 % rH ...

  • Page 9: Operation

    9 | 21 5 Operation You need to download the Transport Data Logger app to use the TDL 110. The required app “Trans- port Data Logger” is available in your Google Play Store or Apple App Store free of charge. Type “Bosch Transport Data Logger”...

  • Page 10: Configuring The Tdl

    Transport Data Logger | TDL 110 10 | 21 5.2 Configuring the TDL To configure your TDL, follow the steps shown in the app. 1. Choose and enter a name for the TDL (optional). 2. Enter an e-mail address to transfer data (optional). This e-mail address will be the default recipient address when sending data via e-mail.

  • Page 11: Figure 6: Enter The Pin

    Transport Data Logger | TDL 110 11 | 21 8. Enter your desired PIN and confirm. Notice No TDL Access! You cannot configure the TDL without a valid PIN. It is impossible to reset the PIN; even at the factory.

  • Page 12: Logging Interval

    Transport Data Logger | TDL 110 12 | 21 5.2.1 Logging Interval Required Monitoring Time Recommended Logging Interval 1 month 1 min 3 months 2 min 6 months 4 min 9 months 6 min 12 months 7 min 15 months...

  • Page 13: Changing The Setup

    Transport Data Logger | TDL 110 13 | 21 5.3.1 Changing the Setup 1. Tap “Change Setup” to set new values. 2. When ready, tap “Change” to apply the new changes. Notice Storage of Measurement Data The log files are associated with a specific shipment. Data logging can be interrupted upon request by tapping “Stop logging”.

  • Page 14: Reading And Transferring Data

    Transport Data Logger | TDL 110 14 | 21 5.4 Reading and Transferring Data 5.4.1 Reading the Data 1. Connect your smartphone to a configured TDL. Overview Screen This screen provides an overview of the four parameters, showing you at a glance if any violations have occurred during the logging period.

  • Page 15: Exchanging The Data

    Transport Data Logger | TDL 110 15 | 21 5.4.2 Exchanging the Data Notice E-Mail Account Required The report will be sent from the e-mail account on your smartphone. ▶ Ensure that the e-mail account on your smartphone is configured correctly.

  • Page 16: Blinking Pattern

    Transport Data Logger | TDL 110 16 | 21 5.5 Blinking Pattern The TDL is equipped with a two-color LED to indicate the status of the TDL. Figure 13: LED on the TDL Triggered by Color Behavior Meaning Mobile App...

  • Page 17: Maintenance

    Transport Data Logger | TDL 110 17 | 21 6 Maintenance 6.1 Changing the Battery The battery is accessible from the bottom of the TDL. Figure 14: Changing the battery 1 Screws (4x Torx T6); Torque 0.5 Nm 2 Mounting plate...

  • Page 18: Cleaning The Tdl

    Transport Data Logger | TDL 110 18 | 21 6.2 Cleaning the TDL Use only a soft cloth. Avoid using abrasive cloths and materials. Caution Damage to Materials can cause Risk of Fire! Liquid which enters the device can cause short circuits and damage the device. This could cause fire, data loss and incorrect measurements.

  • Page 19: Annex

    7.2 EU Declaration of Conformity Hereby, Bosch Connected Devices and Solutions GmbH declares that the radio equipment “Transport Data Logger TDL 110” is in compliance with Directive 1999/5/EG. The full text of the EU declaration of conformity is available at the following internet address: www.bosch-connectivity.com/TDL 110...

  • Page 20: Industry Canada (Ic) Notice

    Transport Data Logger | TDL 110 20 | 21 ▶ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ▶ Consult the dealer or an experienced radio/TV technician for help. 7.4 Industry Canada (IC) Notice This device complies with Industry Canada license-exempt RSS standard(s).
  • Page 21 Bosch Connected Devices and Solutions GmbH Ludwig-Erhard-Straße 2 72760 Reutlingen Germany www.bosch-connectivity.com...
