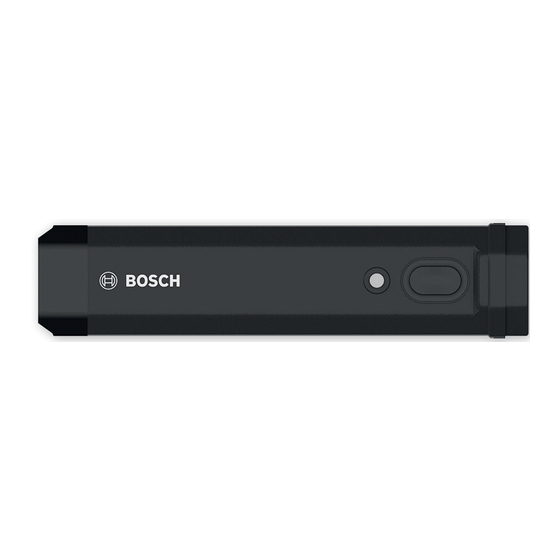

TDL Freight Guard – TDL140
Operating Instructions

Advertisement

Table of Contents

   Related Manuals for Bosch TDL140

   Summary of Contents for Bosch TDL140

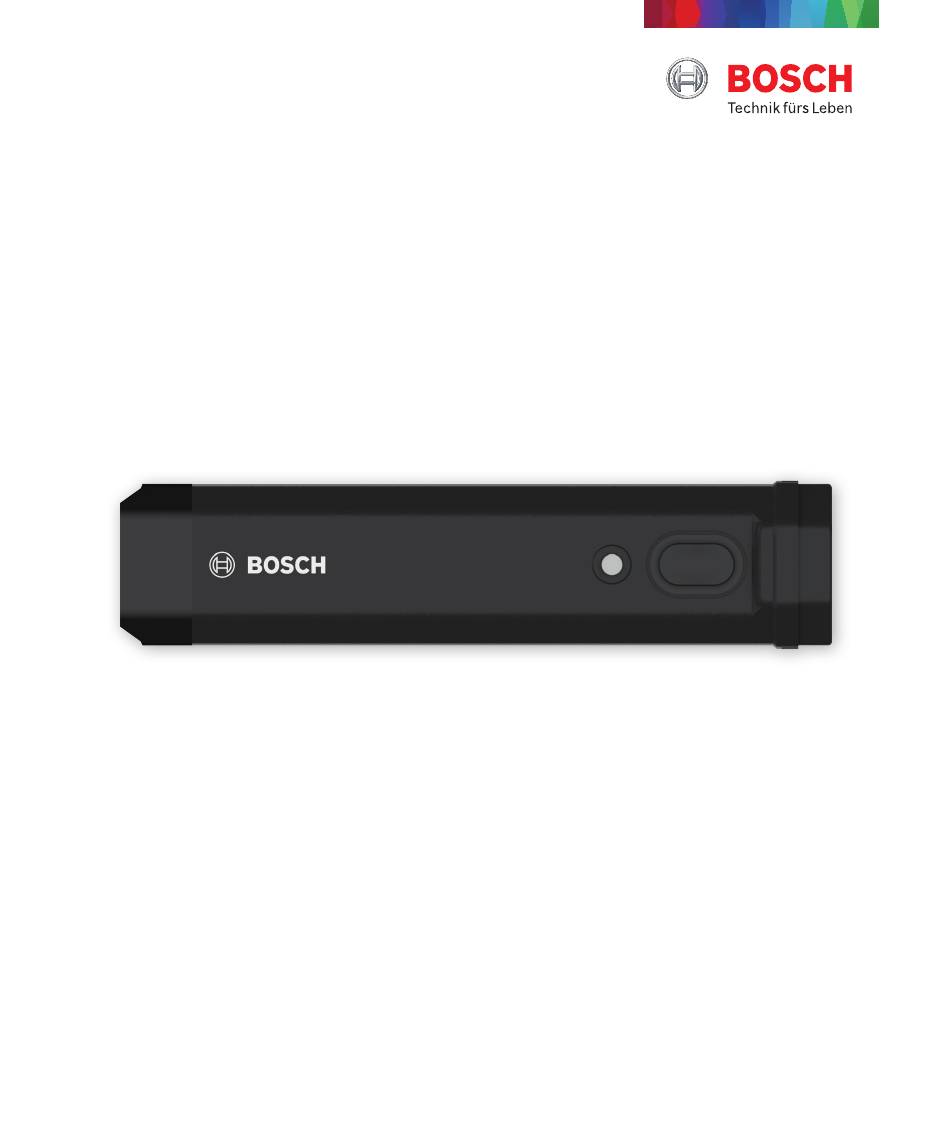

  • Page 1 TDL Freight Guard – TDL140 Operating Instructions...
  • Page 2: Table Of Contents

    Table of contents 1. Introduction   3 2. Quick Start Guide   4 3. Mounting the Transport Data Logger TDL140   5 4. Package Contents   6 5. Technical Specifications   7 6. Management and Monitoring of Devices   8 7. Safety and Environment & Regulatory Notices   8...
  • Page 3: Introduction

    Reduce com- plexity with the Bosch TDL Freight Guard End to End solution by being active informed about the shipment status.. While transportation the device operates in sleep mode and monitors the environmental conditions.
  • Page 4: Quick Start Guide

    On/Off button LED indicator The TDL Freight Guard – TDL140 works immediately without any configuration or modification – the device is preconfigured, SIM card and rechargeable battery are installed. Battery should be charged for at least 5 hours prior to the first use.
  • Page 5: Mounting The Transport Data Logger Tdl140

      Then, push the unit further inside the bracket until both parts fit together.   The TDL140 can be attached to any cargo in any position required.   The fastening, depending on the specific require- ments, can be carried out with screws or with double-sided adhesive tape.
  • Page 6: Package Contents

    4. Package Contents   1 Mounting plate for TDL Freight TDL Freight Guard – TDL Freight Guard – Guard – TDL140 TDL140 unit TDL140 charging cable Recommended charger: Input: 100-240 VAC 50/60Hz Output: 5V - 2A...
  • Page 7: Technical Specifications

    5. Technical Specifications DEVICE SPECIFICATION Dimension 165 mm x 38 mm x 40 mm Weight 216 g Power supply Lithium-ion 3.7 V, 5200mAh Battery Life 1 report every 1 hour: 30 days 1 report every 6 hours: 90 days 1 report every 24 hours: 300 days Note: based on ambient temperature conditions (~25°C) Location/Tracking GPS, A-GPS, GLONASS, Geofencing...
  • Page 8: Management And Monitoring Of Devices

    Opening the casing without authorization will void any warranty and includes risks of injury to the user.  Do not open the housing.  Do not repair the device yourself. If required, send it in to Bosch Connected Devices and Solutions for repair.
  • Page 9 Operating the device in countries out of the EU and USA The TDL Freight Guard – TDL140 carries the CE mark and is certified for operation in the European Union and it is authorized for operation in the USA according to FCC rules. For countries out of the EU and USA the customer is responsible to validate that local legal regu- lation allows the operation of the TDL Freight Guard –...
  • Page 10 Intended Use The housing of the TDL140 is not to be opened or tampered with. The TDL140 is designed for use within environmental conditions as further detailed in the technical specifications. Any intent to use or operate the product under deviating environmental conditions must be sub- jected to renewed validation and testing by the customer.
  • Page 11 The user shall not modify the device. The grantee is not responsible for any changes or modifications not expressly approved by the party re- sponsible for compliance. Such modifications may void the FCC authorization to operate this equipment. www.bosch-connectivity.com/TDL140...
  • Page 12 Bosch Connected Devices and Solutions GmbH Ludwig-Erhard-Straße 2 72760 Reutlingen Germany bosch-connectivity.com...
