C
onnECTIon To powEr
The enclosed cable must be used.
The mixer must be connected to ground!
• Only single phase power supply with ground must be used
for the mixer. Use the enclosed cable.
•
A plug with 2 pins + ground must be used.
•
Check that the voltage of the power supply corresponds
the voltage printed on the rating plate placed in the bottom
of the mixer and stated on the packing.
•
The mixer must be protected by a differential circuit breaker
and a fuse of max. 10 A.
A fuse is built into the cable plug.
The power characteristics of the mixer:
Supply Output Frequency
voltage (V) (W)
115 300
I
nTroDuCTIon To ThE mIxEr
TEDDY is a small professional mixer for kneading, mixing and whip-
ping in all environments where professional equipment is required.
Any operation of the mixer is made by means of the rotary knobs
on the sides of the mixer. The two knobs can be used simultane-
ously or individually and are used both for speed regulation and
as opening/closing function.
The attachment hub A makes it possible to connect meat grinder
and vegetable slicer.
K

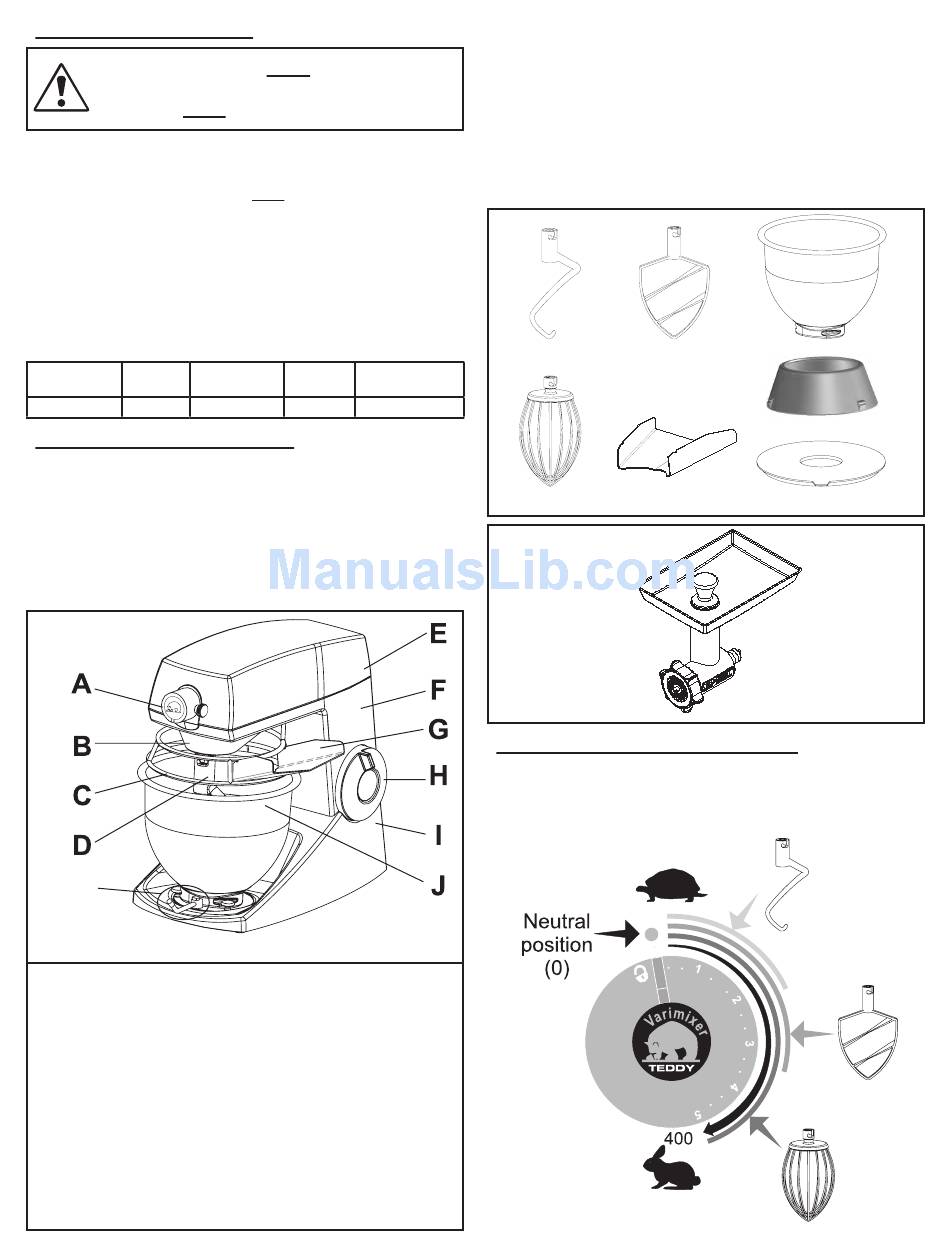

Fig. 1 The construction of the mixer
A Attachment hub
B Housing of the planetary gear
C Bowl screen in stainless steel
D Bayonet shaft
E Lid
F Upper part
G Ingredient chute
H Rotary knobs (two pcs.)
I Base
J Bowl in stainless steel, contents 5 quarts
K Locking arm
:
Voltage Motor Power
(Hz) (A) (HP)
50/60 3.4
:
2
Equipment:
As standard the mixer comes with the following equipment:
• Bowl in stainless steel.
•
White plastic lid for bowl.
• Ingredient chute.
• Dough hook in stainless steel for kneading of dough.
• Beater in stainless steel for mixing.
• Whip in stainless steel for whipping.
• Splash guard in plastic.
Hook
0.4
Whip
Extra equipment:
Meat grinder
r
ECommEnDED workInG spEEDs
•
Position 1-2:
•
Position 1-3:
•
Position 1-5:
Fig. 2 Recommended working speeds
Bowl
Beater
Splash guard
Lid
Ingredient chute
:
Low speed Kneading
Medium speed Mixing
High speed Whipping
