1.........Control button, left and right ......................................................................................... AR005-178-TZ001
2.........Base .............................................................................................................................. AR005-022-TZ0xx
#
2.1......Fuse 5 A, slow, 110V ..................................................................................................... AR005-418-00001
3.........Cover plate .................................................................................................................... AR005-347-TZ001
4.........Cable with Rheostat and microswitchs .......................................................................... AR005-193-TZ001
5.........Tilt Bearing, left and right .............................................................................................. AR005-337-TZ001
#
6.........Lid .................................................................................................................................. AR005-024-TZ0xx
7.........Intermediate shaft .......................................................................................................... AR005-325-TZ001
#
8.........Upperpart ...................................................................................................................... AR005-023-TZ0xx
9.........Lockpin .......................................................................................................................... AR005-332-TZ001
10.......Planetary Head ..............................................................................................................AR005-002-TS001
11 .......Control board .................................................................................................................AR005-378-TS001
12.......Transformer 115V .......................................................................................................... AR005-368-TZ001
13.......Motor ............................................................................................................................. AR005-339-TZ001
13.1....Poly-V belt .....................................................................................................................AR005-090-TD001
14.......Release housing ............................................................................................................AR005-372-TS001
15.......Weight Compensator ..................................................................................................... AR005-352-TZ001
16.......Attachment drive ........................................................................................................... AR005-010-TZ001
17.......Machine feet .................................................................................................................. AR005-213-TZ001
18.......Fixing of bowl ................................................................................................................ AR005-340-TZ001
19.......Bowl lock .......................................................................................................................AR005-336-TS010
20.......Power Cable ..................................................................................................................AR005-194-TD006
# Please state the color when ordering
The mixer is equipped with a safety-timeout
that turns off the mixer after 45 minutes
continuous operation.
The constant noise level of the workplace
of the operator is lower than 70 dB (A).
052017 US

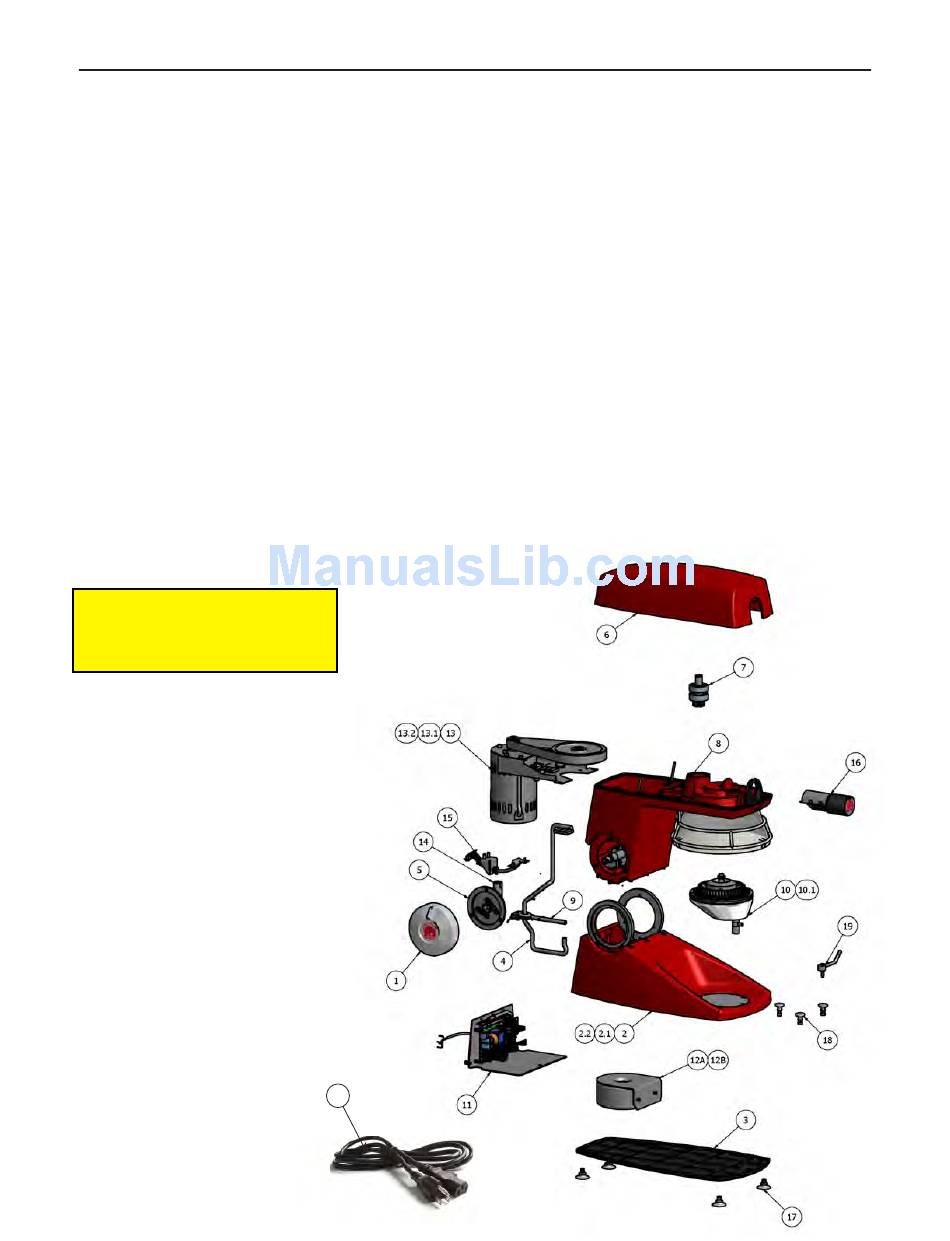

EXPLODED VIEW
