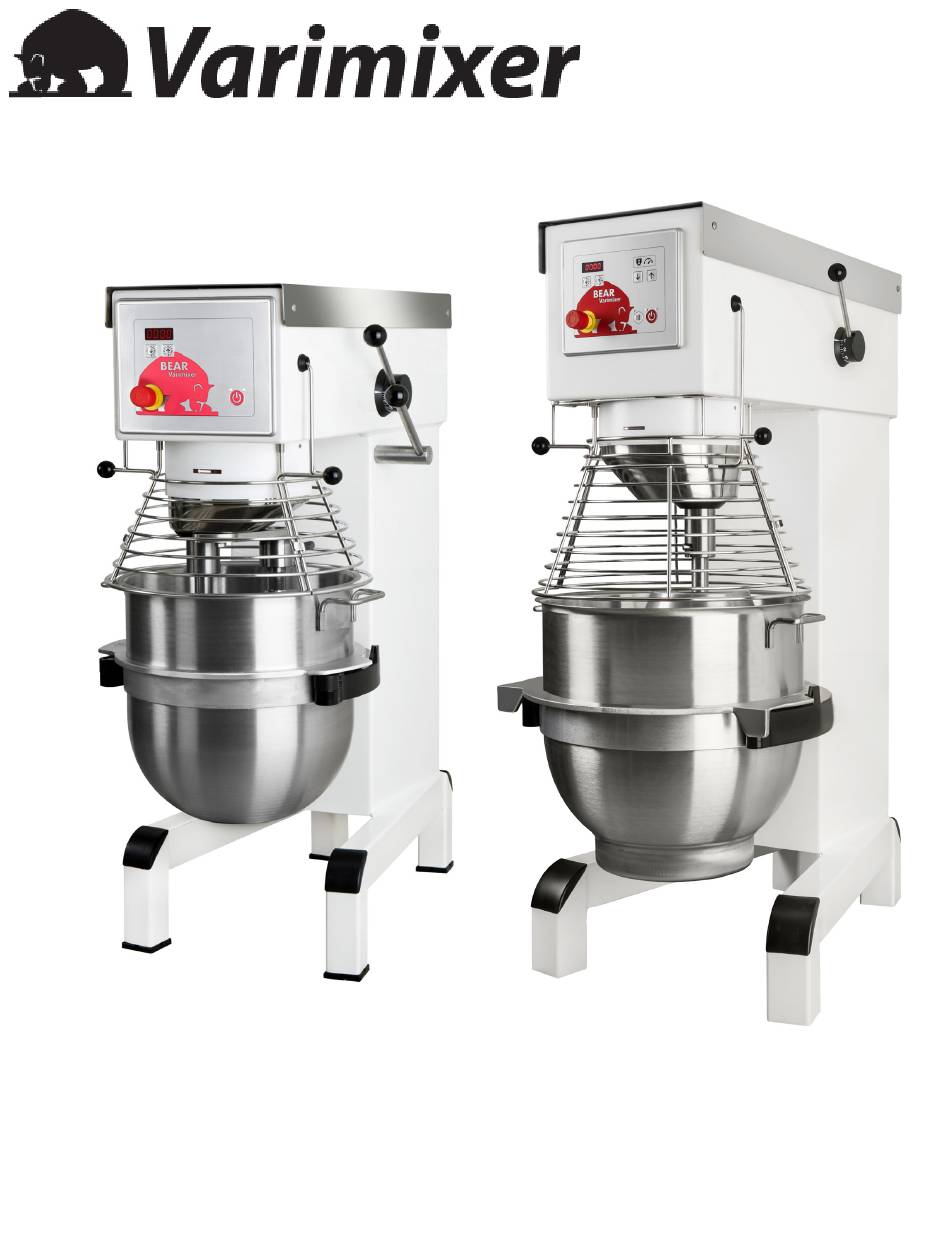

SPARE PART AND OPERATION MANUAL
FOOD MIXER
Model V80, V80PL, V100PL
121520

Advertisement

Table of Contents
loading

Related Manuals for Varimixer V80

Summary of Contents for Varimixer V80

  • Page 1 SPARE PART AND OPERATION MANUAL FOOD MIXER Model V80, V80PL, V100PL 121520...
  • Page 2 Caution -READ BEFORE OPERATING- Caution Varimixer recommends that mixer operators must be at least 18 years of age and be thoroughly trained on the use, cleaning and lubrication of the mixer. This manual should be seen as an integral part of the mixer and should be kept by the machine throughout its working life.
  • Page 3 1 year warranty that only covers parts. Warranty begins on date of factory shipment to an end user, or up to 6 months after factory shipment to a dealer or distributor. Payment by VARIMIXER for service under this warranty requires that service be authorized in advance.

  • Page 4: Table Of Contents

    Electrical Panel, Power lift V80 - V100 ................... 33 Electrical Power Supply, Power Lift V80-V100 ..............35 Attachments and Optional Products ..................37 Wiring Diagram V80 - with manuel Bowl Lift 3x208V ............. 38 Wiring Diagram V80 - with manuel Bowl Lift 3x480V ............. 39...

  • Page 5: Installation Instructions

    Read this page entirely BEFORE beginning installation. INSTALLATION INSTRUCTIONS UNDER NO CIRCUMSTANCES ARE THE SPEED LEVER, BOWL LIFT LEVER, OR THE BOWL ARMS TO BE USED TO MOVE THE MIXER INTO PLACE. DAMAGE WILL RESULT TO THE UNIT. IT IS RECOMMENDED THAT THE TOP LID BE REMOVED BEFORE MOVING THE UNIT. The mixer must be mounted with the rubber feet, which neutralize both shaking and rusting.

  • Page 6: Operation Of The Mixer

    Operation of the mixer: Bowl up Fig. 1 Operation panel. (power lift Bowl down Place the tool in the bowl. Open the bowl screen only) (power lift only) Note: the bowl arms must be in the lowest position. Place the bowl in the bowl arms. Check that the bowl is pushed right back into the arms and that the “centre ear”...

  • Page 7: Automatic Lowering Of The Bowl (Power Lift)

    Automatic lowering of the bowl (power lift) Correct use of tools: If the timer is in use, the bowl can automatically be lowered Whips should not be struck against hard objects as when the time runs out and the mixer stops. e.g.

  • Page 8: Construction Of The Mixer

    Construction of the mixer: Safety switch for lid Motor relay / Speed (extra equipment) thermal over- adjustment load relay Fuse Safety switch for Bowl screen Bowl lift motor Motor (Power Lift) V100 Safety switch for bowl lift 4 HP 4 HP Micro switch for the upper position of the bowl arms...

  • Page 9: Maintenance And Lubrication

    Stop the mixer and fill the grease gun with new grease so that it is ready for next time. for attachment hub (V80): Lubrication of other movable parts: The movable parts of the bowl arms, the shaft and the lifting rod must also be lubricated with oil.

  • Page 10: List Of Errors And Possible Solution

    In such cases the distance (X) must be reduced. (+ or - 1/8" of 12 1/4") Then follow the section: “Adjustment of speed” (X) V80 = 12 1/4" +/- 1/8" (X) V100 = 12 1/4" +/- 1/8"\...

  • Page 11: Adjustment Of Bowl Centering

    Adjustment of bowl centering: fig.5 Adjustment of bowl fixing and bowl centering First find the present bowl centering: mount the beater and the bowl, then raise the bowl arms up to normal working position. With your hand turn the beater, and then measure the distance between beater and bowl edge.

  • Page 13: Machine Column V80-V100

    Machine Column V80-V100 Description V100 Fig.No Top Lid ..............AR81-21 ..........AR101-21 Screw for Lid M6x20 .........STA 5017 ..........STA 5017 Threaded Bushing ..........STA 6580 ..........STA 6580 Ground Screw...........STA 5232 ..........STA 5232 Arrow Label ............R15-245 ...........R15-245 Plug Button ............STA 6525 ..........STA 6525 Bushings for Bowl Arm Shaft ......STA 2526 ..........STA 2526 Knee Pad ............AR80-212 ..........AR80-212...
  • Page 14 W60-53.3M WR81-612M...

  • Page 15: Bowl Lift Microswitches V80-V100

    Bowl Lift Microswitches V80-V100 Description V80 - V100 Fig.No Screw..............STA 56277 Microswitch Bracket..........AR81-612 Microswitch Cable ..........AR81-194.11 Cable Inlet ............STA 3002 Microswitch ............WR81-194.11 Screw..............STA 5619 Microswitch ............AR81-173 Microswitch Bracket..........AR61-53.1 Microswitch Plate..........AR61-53.3 Threaded Plate ............. AR31-712 Nut ................
  • Page 16 81-600M...

  • Page 17: Manual Bowl Lift - V80 Only

    Manual Bowl Lift - V80 only Description Fig.No Lift Nut ..............................R15-65 Crank Arm............................R60-63Z Bowl Arm Shaft ..........................R81-68Z Lifting Rod ............................R81-83Z Lift Spring ............................R60-110 Key ..............................STA 2020 Snap Ring ............................STA 3408 Snap Ring ............................STA 3462 Screw..............................STA 5088 Nut ..............................STA 5827 Pin ..............................STA 6205 Pin ..............................STA 6370...
  • Page 18 19, 19A 18, 18A 6, 6A 15, 15A AR81-23/24Z AR101-23/24Z...

  • Page 19: Power Bowl Lift V80-V100

    Snap Ring ..............STA 3462 Screw............... STA 5322 Washer for V80 ............STA 6020 18A. Washer vor V100 ............. STA 6034 Fitting for Bowl Lift Motor for V80 ......AR81-86.40M4 19A. Fitting for Bowl Lift Motor for V100 ......AR101-86.40 Pin ................AR81-86.41...
  • Page 20 V80 3 belts total V100 4 belts total 1, 1A AR80-2.2M0 R100-30Z R100-3Z R100-2Z R100-2.1Z R100-3.6Z R100-101Z...

  • Page 21: Planetary Head V80-V100

    Planetary Head V80-V100 Description V80 - V100 Fig.No V-Belt for V80 (Must be changed as a set) ..R100-90.1 Order qty 3 V-Belt for V100 (Must be changed as a set) ..RN100-90.2 Order qty 4 Snap Ring ............STA 3419 Washer .............STA 6048 Snap Ring ............STA 3419...
  • Page 22 41, 41A1 43, 43A 48, 48A 100-6M 100N-6M V80 3-belt V100 4-belt 7, 51...

  • Page 23: Transmission V80-V100

    Pedestal Shaft for V80..........R60-41Z 41A. Pedestal Shaft for V100..........RN100-41 Key f/Pedestal Shaft ..........STA 2024 Pulley f/Pedestal Shaft for V80 ........R100-128 (3V) 43A. Pulley f/Pedestal Shaft for V100 ........ RN100-128 (4V) Ball Bearing ............... 6205 2RS Snap Ring ..............STA 3514 Bolt ................

  • Page 25: Speed Lever System V80-V100

    Speed Lever System V80-V100 Description V80 - V100 Fig.No Speed Lever W80........W81-47M Disc w/ arrow ..........AR30-47.10 White Clamp ..........AR30-47.11 Black Knob ..........STA 3306 Snap Ring ...........STA 3414 Screw............STA 5247 Lever assy..........AR81-47Z...
  • Page 26 RN30-52M RN30-5.6M...

  • Page 27: Attachment Drive Gearbox - V80 Only

    Attachment Drive Gearbox - V80 only Description Fig.No Bearing Hub............................R15-5 Wormwheel ............................R20-9 Gear Case ............................R15-10 Gear Case Cover..........................R15-11 Worm Gear ............................R20-49 Gear Shaft ............................R20-52Z Attachment Drive Shaft # 12......................R15-50.6 Key ..............................STA 2032 Bearing .............................R20-104 Seal ..............................R20-107 Gasket - Use RTV Silicone .......................R20-300 Gasket - Use RTV Silicone .......................STA 5908...

  • Page 29: Bowl Screen V80-V100

    Bowl Screen V80-V100 Description V80 - V100 Fig.No Bowl Screen Kit ..............14080-0001 lockwasher................STA 6056 Front bowl screen ..............56G81-21 Rear bowl screen..............56G81-22 Fitting for bowl screen ............56P60-75 Set Screw f/keeper ..............STA 5665 Nut f/ bushing ................. 56SN60-24 Microswitch bracket assembly ..........
  • Page 30 3, 3A Front panel, assemple (inclusive print) ..AR31-530.3M Cover for front panel, assemply ....AR31-152.1Z W30-530.3M AR31-152.1Z AR31-530.3Z...

  • Page 31: Electrical Panel, Manual Lift V80

    Electrical Panel, manual lift V80 Description Fig.No Front Panel VL1, assemply ..........AR31-530.3Z Gasket VL1 Front Panel ..........AR31-562V Cover for 3x208V ............AR31-152.1Z Cover for 3x480V ............AR31-152.4 Nut ...................STA 5897 Emergency Stop Actuator..........AR31-174.11 Emergency Stop Adapter ..........AR31-174.12 Contact Element NC.............AR31-174.14 Fuse Holder Complete ..........R20E-416.1 Fuse 1.5A, Slow ............R20E-418.2...
  • Page 32 3, 3A Front panel VL1L, assemple (inclusive print) ... AR31-530.6M Cover for front panel, assemply ........AR31-152.1Z AR31-152.1Z AR31-530.6M...

  • Page 33: Electrical Panel, Power Lift V80 -V100

    Electrical Panel, Power lift V80 -V100 Description V80 - V100 Fig.No Front Panel VL1L, assemply ........AR31-530.6M Gasket VL1 Front Panel ..........AR31-562 Cover for 3x208V ............AR31-152 Cover for 3x480V ............AR31-152.4 Nut ...................STA 5897 Emergency Stop Actuator..........AR31-174.11 Emergency Stop Adapter ..........AR31-174.12 Contact Element NC.............AR31-174.14...
  • Page 34 15, 15A...

  • Page 35: Electrical Power Supply, Power Lift V80-V100

    Electrical Power Supply V80-V100 Description V80 - V100 Fig.No Power supply box ............WR31-418 Lid for Power supply box ..........WR31-418.1 Screw for Power supply box..........AR31-418.5 Cable Inlet ...............STA 3074 Nut ...................STA 3038 Cable Inlet ...............STA 3002 Nut ...................STA 3014 Fuse 1.5A, slow .............R20E-418.2 Fuse 8A, slow ..............R20E-418.8...
  • Page 36 1, 2 3, 4, 4A 7, 8, 8A 11, 12, 12A 13, 14, 14A 10, 10A 27, 27A 25, 26, 26A 29, 29A 31, 31A, 31B...

  • Page 37: Attachments And Optional Products

    Attachments and Optional Products Description Sold As V100 Sold As Fig.No Stainless Steel Bowl (Standard) ..... AR80-75M ..... VBOWL-80 ....RN100-75M ..VBOWL-100 Stainless Steel Bowl (Downsize 60)....N/A ......N/A ......WN100-75AM ..VBOWL60-100 Stainless Steel Bowl (Downsize 40)....AR80-75AM ... VBOWL40-80 .... WN100-75BM ..VBOWL40-100 Dough Hook (Double Pin) ......

  • Page 38: Wiring Diagram V80 - With Manuel Bowl Lift 3X208V

    Wiring Diagram V80 - with manuel Bowl Lift...
  • Page 40 Varimixer 2215 East River Road Dayton, OH 45439, US P: (800) 222-1138 E: mixer@varimixer.com www.varimixerusa.com...
