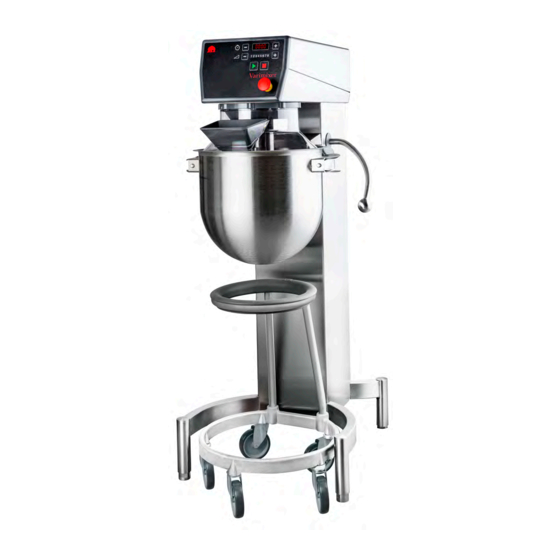

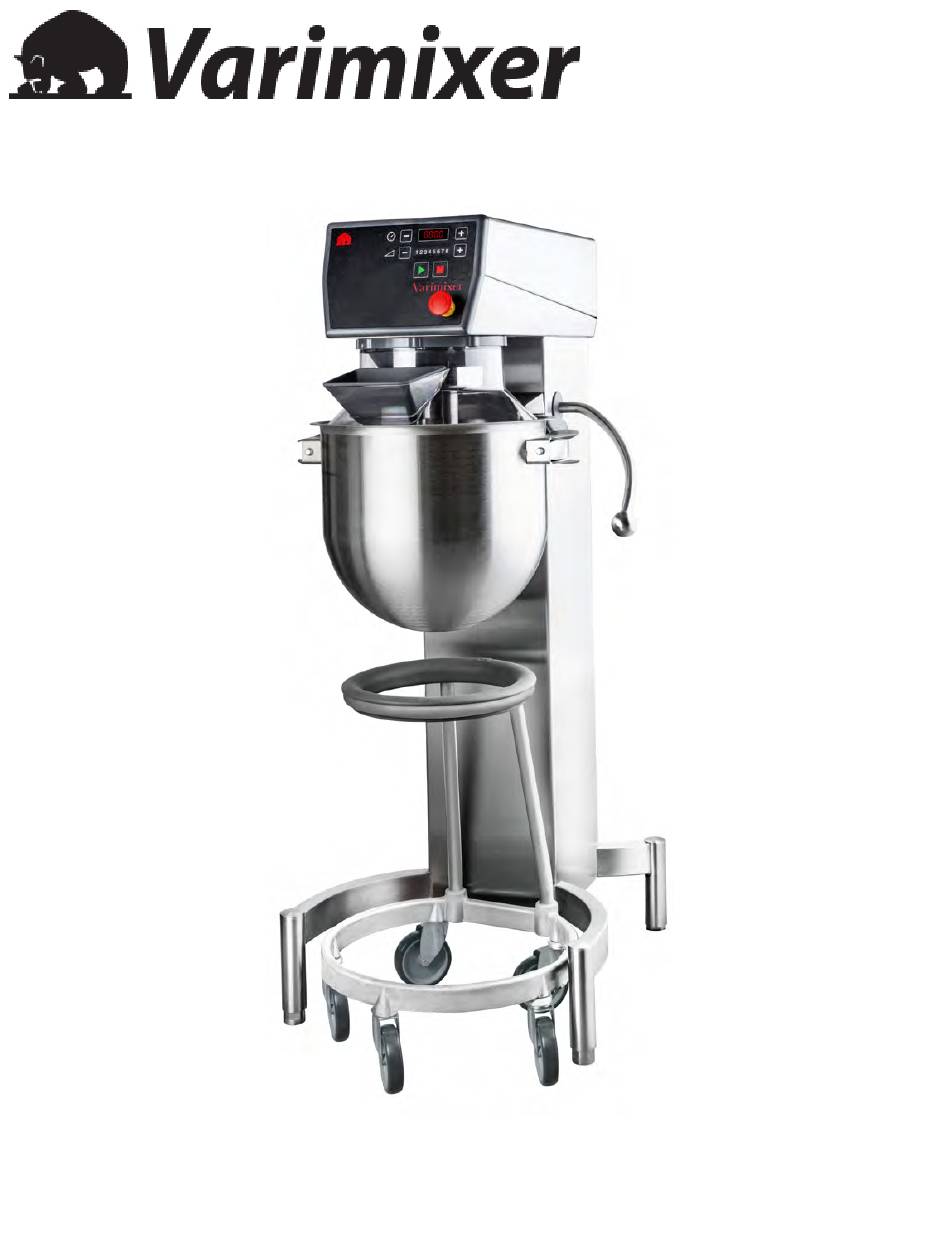

- Page 1 SPARE PART AND OPERATION MANUAL FOOD MIXER Model V30K May. 2019...
-
Page 2: Limited Warranty
LIMITATIONS OF LIABILITY In the event of warranty claim or otherwise, the sole obligation of Varimixer shall be the repair and/or replacement at the option of Varimixer, of the appliance or component or part thereof Such repair or replacement shall be the expense of Vari- mixer except that travel over 100 miles or two hours, overtime, and holiday charges shall be the expense of the purchaser. - Page 3 Caution -READ BEFORE OPERATING- Caution Varimixer recommends that mixer operators be at least 18 years of age and be thoroughly trained on the use, cleaning and lubrication of the mixer. This manual should be seen as an integral part of the mixer and should be kept by the machine throughout its working life.
-
Page 4: Table Of Contents
ontents : ................................4 eneral : ................................4 npackinG : ................................5 ransport : ..........................5 nstallation and adjUstments : ............................6 lectrical connection : ..............................6 echnical data : ..........................6 capacity of the machine : ................................ 7 ommissioninG : ........................... -
Page 5: Ransport
ransport Lifting equipment should always be used to move the machine. The machine must not be pulled or lifted by the bowl lift handle. When the machine is moved, it should be in a vertical position at all times. nstallation and adjUstments The ambient temperature around the machine must not exceed 113 When the mixer is delivered, the adjustable feet will be turned right to the bottom. -
Page 6: Lectrical Connection
lectrical connection NOTE Before the machine is connected to the mains, check that The machine must be protected the voltage and frequency printed on the name plate are by a Residual Current Device: correct for the installation location. Installation in industrial environ- The name plate is positioned uppermost on the back of the machine. -
Page 7: Ecommended Use Of The Machine
ommissioninG Bowl, tools and Bowl Screen should be cleaned before use – see section on Cleaning, page 12. The bowl arms should be at the correct height above the floor before the machine is taken into use – see Adjustments, page 5. ecommended Use of the machine The machine is designed for the manufacture of products that do not trigger any reactions or release substances that may be harmful to the user when in use. -
Page 8: E Quipment
orkinG With hot inGredients When working with hot ingredients which are added via the filling hole in the bowl screen, it is necessary to use the filling chute. The filling chute is made of FDA-grade silicone, and is able to withstand hot ingredients up to 392 F. The filling chute can be used for ingredients as hot as this for as long as necessary. If the filling chute is not used, ingredients which are added via the filling hole in the bowl screen must not be more than 140 qUipment Standard equipment, as follows: Bowl 30 Q Hook, whip and beater for 30 Q bowl A silicone filling-chute for hot ingredients Bowl trolley Optional accessories: Scraper for 30 Q bowl, if mixer is fitted for a scraper Bowl 15 Q Hook, whip and beater for 15 Q bowl... -
Page 9: Omponents Of The Machine
omponents of the machine Mixer head For the benefit of service Control panel staff, it should be clear to see when the mains plug to the machine has been removed from the socket in the wall Control panel with attachment drive Socket on the back of the machine;... -
Page 10: User Friendliness
kodiak User friendliness KODIAK has been designed in partnership with kitchen and bakery staff, which has resulted in a number of user benefits: The machine itself Can be connected to the mains by the user Is made of stainless steel Has height-adjustable feet to ensure that the high bowl trolley works properly Is easy to clean, with large surfaces and a removable safety guard which can be machine-washed The power cord is connected to a waterproof silicone plug and can not be shaken from the machine The inclined control panel combined with the large bowl diameter provides a good view of the contents of the bowl. -
Page 11: Perating The Machine
peratinG the machine Timer (timer field) Increase time Decrease time Increase speed Decrease speed Speed indi- cator Start Emergency stop Stop Before starting the machine: . The running time is shown in minutes and seconds in the timer field between Place the bowl in the bowl trolley. Put the desired tool into the bowl and wheel it into position between the bowl arms. -
Page 12: P Rocedure In Case Of Overloading
verloadinG orrect Use of tools Recommended uses of tool: The machine must not be overloaded. Whip Beater Hook Possible overload situations: Cream Cake mix Bread dough • Egg whites Buttercream Rye bread Working with excessively tough and heavy dough Waffle mix Mayonnaise etc. -
Page 13: Ystematic Maintenance
ystematic maintenance Part Action Frequency Note Bowl screen Check the safety of the bowl screen: Regularly If the tool does not immediately Does the tool stop rotating when the stop rotating on tilting/removal of screen is tilted/removed? the screen, the machine must not be used. -
Page 14: Rror Codes And Possible Solutions
rror codes and possible solUtions For some errors, the control system will show an error code in the display: User pressed without raising the bowl to working height. Solution: Raise bowl to working height. without fitting the safety guard. User pressed Solution: Fit the bowl screen. The Thermal sensor in the motor has overheated. -
Page 15: Ccess To The Fuse
ccess to the fUse If the fuse burns out, it can be replaced without the aid of technical staff. • The fuse is located in the socket on the back of the machine. • Be sure to remove the power cord before changing the fuse... -
Page 16: Ircuit Diagram
ircUit diaGram... -
Page 17: Ixer Pare Arts
ixer pare arts... - Page 18 ixer pare arts TRANSMISSION ........................19 LIFTING SYSTEM ........................20 PLANETARY HEAD ....................... 22 ATTACHMENT HUB ......................24 MACHINE COLUMN ......................26 FREQUENCY INVERTER ...................... 28 FRONT PANEL ........................29 CABLES ..........................30 ACCESSORIES ........................31...
-
Page 19: Transmission
TRANSMISSION ITEM Part number Name UK CR30-90 Micro-V PJ1016-12 CR30-61.3 Mounting plate motor STA3410 Circlip A25 STA5751 Hex cap screw M8x16 RN20-87.1 Fan 1,2kw headline motor CR20-129 Pulley ø112 J12 CR20-128 Pulley ø63 J12 STA3407 Circlip A19 CR30-85.2 Motor 1,5kw STA2004 Pasfeder AB 6x6x27mm Din6885A STA2037... -
Page 20: Lifting System
LIFTING SYSTEM ITEM Part number Name STA5806 Hexagon nut M10 DIN125A A2 STA6205 Spring cotters for bolt ø2,5 CR30-83.1 Lifting bolt STA3410 Circlip A25 CR30-63M Crankshaft CR20-62M Lifting arm CR30-62.9 Cover for liftarm STA3408 Retainningring A20 CR30-65.1M Liftingnut mounted CR20-110 Spring bowllift CR20-23.5 NSF Gasket... -
Page 22: Planetary Head
PLANETARY HEAD ITEM QTY Part number Name STA6460 Dowel pin ø8x24-KS4 STA3515 Retainning ring J55 HK2016 Needel bearing 6006 2RS Ballring 6006 6206 2RS Ballring 6206 STA3518 Retainningring J62 R20-235 Axial washer LR17 Bushing STA3470 Circlip SW17 R20-32 Toothed wheel 1 R20-31 Toothed wheel STA2008... - Page 23 CR30-2M CR30-2.10Z CR30-2.11Z CR30-2.1M RN20-3.7Z CR30-2Z CR30-36Z RN20-101Z 42CR20-105Z CR30-30.5Z CR30-30.6Z CR30-33Z...
-
Page 24: Attachment Hub
ATTACHMENT HUB ITEM Part number Name CR30-8.6EM Attachment drive #12 FZB & painted black STA3127 O-ring ø66x2 6005 2RS Ballring 6005 2RS RN20-37 Distance bushing STA3512 Circlips Type J 47x1,75 STA3410 Circlip A25 RN20-9 Worm wheel STA2031 Feather Key 8x7x30 CR30-50.6R Attachmentdrive shaft CR30 #12 R100-143... - Page 25 CR30-50.6Z CR30-10.6Z...
-
Page 26: Machine Column
MACHINE COLUMN ITEM Part number Name Used for CR30-22.3R CR30 Floormodel welded STA5707 Socket head screw M4x16 CR30-304 NSF Coverplate 56CR30P-22 Removeable plastic cover CR20-291 Backpanel STA5750 Hex cap screw M6x16 STA5842 Hexagon locknut M8 CR30-22.18 Wring STA5028 M6 Captive marinescrew 56CR20-110M Switchbracket complete CR30-552.4M... - Page 27 56WR30-280 CR20-218R 56CR20-110M 56CR20-111M 56CR30-22...
-
Page 28: Frequency Inverter
FREQUENCY INVERTER ITEM Part number Name Used for CR30-552.4M Frequency converter 1500W-230V 230V WR30-552.4M Frequency converter 1500W - USmodel 100/115/120/200/208/400/440/480V... -
Page 29: Front Panel
FRONT PANEL Part number Name Used for CR10-174.35Z Emergency stop complete CR30-501.4M Frontpanel mounted CR30-501.5M Frontpanel Attachment drive mounted... -
Page 30: Cables
CABLES Part number Name CR30-194.17M Frequency converter cable output CR20-194.5M Earth cable short CR20 CR20-194.6M Earth cable long CR20 CR30-194.7M Earth cable with ringterminal M6 CR30-194.8M Earth cable to CR30 CR20-194.25M Cable for contactor CR30-194.16M Cable security input CR30-194.36M Cable security input with trafo Used for CR10-194.10 Modbus cable... -
Page 31: Accessories
ACCESSORIES ITEM Part number Name CR30-75M Bowl 30Q CR30-75AM Bowl 30/15Q CR30-75.2M Bowl 30Q old version CR30-75.2AM Bowl 30/15Q old version CR30-78M 30L hook, stainless steel CR30-78AM 30/15Q hook, stainless steel 30L flat beater, stainless steel CR30-27.3M 30/15Q flat beater, stainless steel CR30-27.3AM CR30-28.1M 30L whip CR30-28.1AM 30/15Q whip 42CR30P 30L scraper complete 42CR30AP... - Page 32 14240 South Lakes Drive Charlotte, NC 28273 (800) 222-1138 www.varimixerusa.com...
