SMART ARM-based Microcontrollers
OLED1 Xplained Pro
USER GUIDE
Preface
®
Atmel

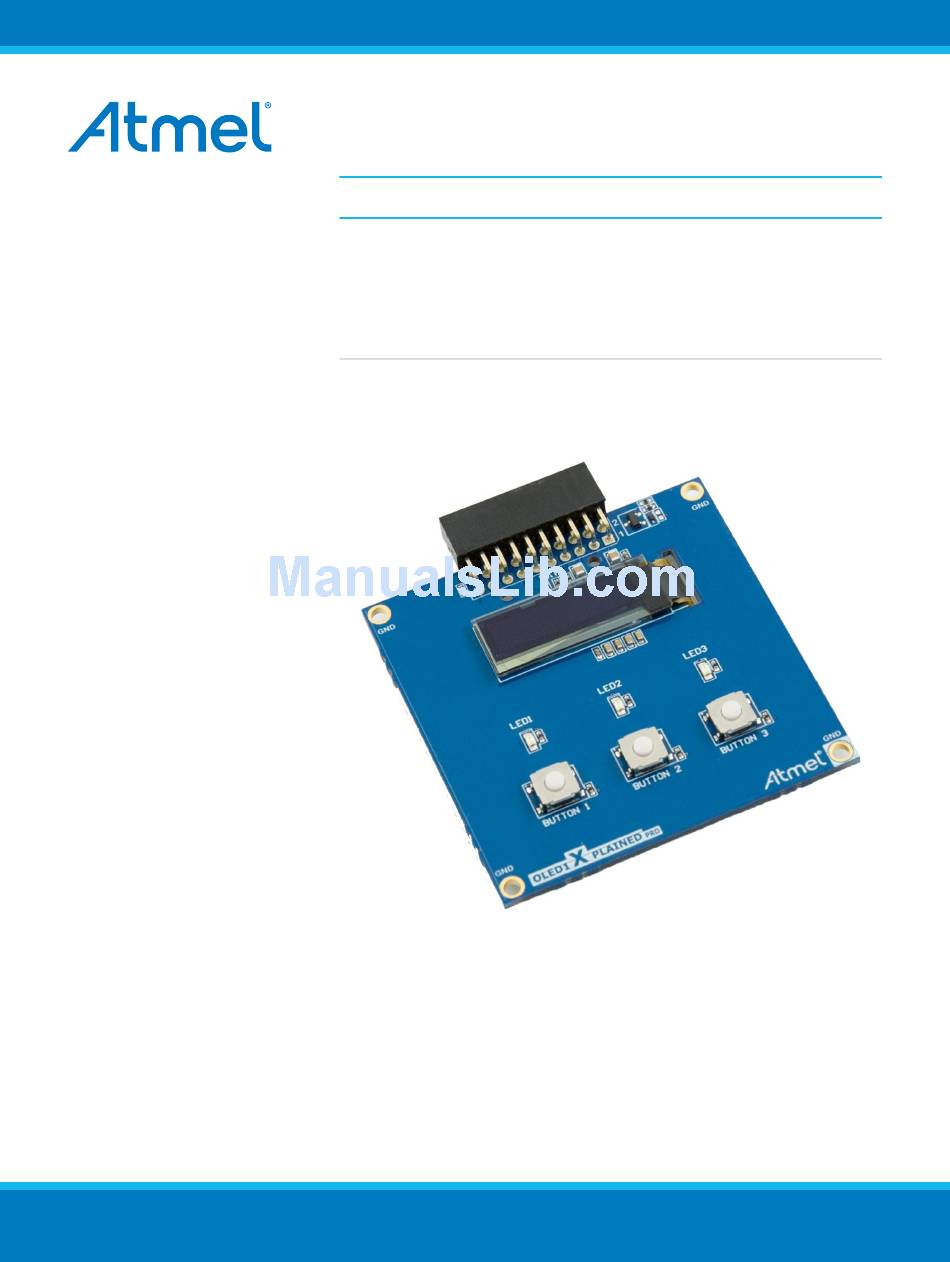

OLED1 Xplained Pro is an extension board to the Atmel Xplained Pro
evaluation platform. The board enables the user to experiment with user
interface applications with buttons, LEDs, and a display.
Atmel-42077C-OLED1-Xplained-Pro-Hardware_User Guide-03/2016
Advertisement
Table of Contents
Related Manuals for Atmel OLED1 Xplained Pro
Summary of Contents for Atmel OLED1 Xplained Pro
-
Page 1: Preface
OLED1 Xplained Pro USER GUIDE Preface ® Atmel OLED1 Xplained Pro is an extension board to the Atmel Xplained Pro evaluation platform. The board enables the user to experiment with user interface applications with buttons, LEDs, and a display. Atmel-42077C-OLED1-Xplained-Pro-Hardware_User Guide-03/2016... -
Page 2: Table Of Contents
Push Buttons......................... 8 4.3.3. OLED Display........................ 9 5. Hardware Revision History and Known Issues............10 5.1. Identifying Product ID and Revision................... 10 5.2. Revision 3...........................10 6. Document Revision History..................11 7. Evaluation Board/Kit Important Notice..............12 Atmel OLED1 Xplained Pro [USER GUIDE] Atmel-42077C-OLED1-Xplained-Pro-Hardware_User Guide-03/2016... -
Page 3: Introduction
1.2. Kit Overview OLED1 Xplained Pro is a basic extension board for the Xplained Pro platform with three LEDs, three push buttons, and an OLED display. The OLED display is controlled via a SPI interface up to 100MHz. OLED1 Xplained Pro connects to any Xplained Pro standard extension header on any Xplained Pro MCU board. -
Page 4: Getting Started
, Windows 7, Windows 8, Windows 10, and Windows Server 2012. Once the Xplained Pro MCU board is powered the green power LED will be lit and Atmel Studio will auto detect which Xplained Pro MCU- and extension board(s) are connected. Atmel Studio will present relevant information like datasheets and kit documentation. -
Page 5: Xplained Pro
When an Xplained Pro extension is connected to an Xplained Pro MCU board the information is read and sent to Atmel Studio. The Atmel Kits extension, installed with Atmel Studio, will give relevant information, code examples, and links to relevant documents. The table below shows the data fields stored in the ID chip with example content. - Page 6 SPI_MISO Master in slave out line of serial peripheral interface. Always implemented, bus type. SPI_SCK Clock for serial peripheral interface. Always implemented, bus type. Ground Power for extension board Atmel OLED1 Xplained Pro [USER GUIDE] Atmel-42077C-OLED1-Xplained-Pro-Hardware_User Guide-03/2016...
-
Page 7: Hardware User Guide
4.1. Electrical Characteristics OLED1 Xplained Pro can be connected to several Xplained Pro MCU boards and manually connected to other hardware. Xplained Pro MCU board(s) that does not have 3.3V as its primary target voltage will read all ID devices on connected extensions to check if they support the target voltage before enabling it to the extension headers. -
Page 8: Peripherals
5 4.3. Peripherals 4.3.1. LEDs There are three yellow LEDs available on OLED1 Xplained Pro. The LEDs can be activated by driving the connected I/O line low. Table 4-3. LED Connections Pin on EXT connector Silk screen marking LED1... -
Page 9: Oled Display
4.3.3. OLED Display OLED1 Xplained Pro features a 128 x 32 pixel white monochrome OLED display, UG-2832HSWEG04 from WiseChip Semiconductor Inc. The display has a SSD1306 display controller by Solomon Systech built in and is controlled via a 4-wire SPI interface + reset with the signals described in the table below. -
Page 10: Hardware Revision History And Known Issues
Revision 3 of OLED1 Xplained Pro is the initial released version. OLED1 Xplained Pro boards with a serial number that ends with a number lower than 11148 may have a wrong revision programmed into the Xplained Pro ID chip. This will only affect the information displayed by the Atmel Kits extension in Atmel Studio. -
Page 11: Document Revision History
Document Revision History Doc. rev. Date Comment 42077C 03/2016 Added electrical characteristics 42077B 09/2013 Added errata about revision 3 of the board 42077A 02/2013 First release Atmel OLED1 Xplained Pro [USER GUIDE] Atmel-42077C-OLED1-Xplained-Pro-Hardware_User Guide-03/2016... -
Page 12: Evaluation Board/Kit Important Notice
(WEEE), FCC, CE or UL (except as may be otherwise noted on the board/kit). Atmel supplied this board/kit "AS IS", without any warranties, with all faults, at the buyer's and further users' sole risk. The user assumes all responsibility and liability for proper and safe handling of the goods. - Page 13 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, by estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND...
- Page 14 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Atmel ATOLED1-XPRO...
