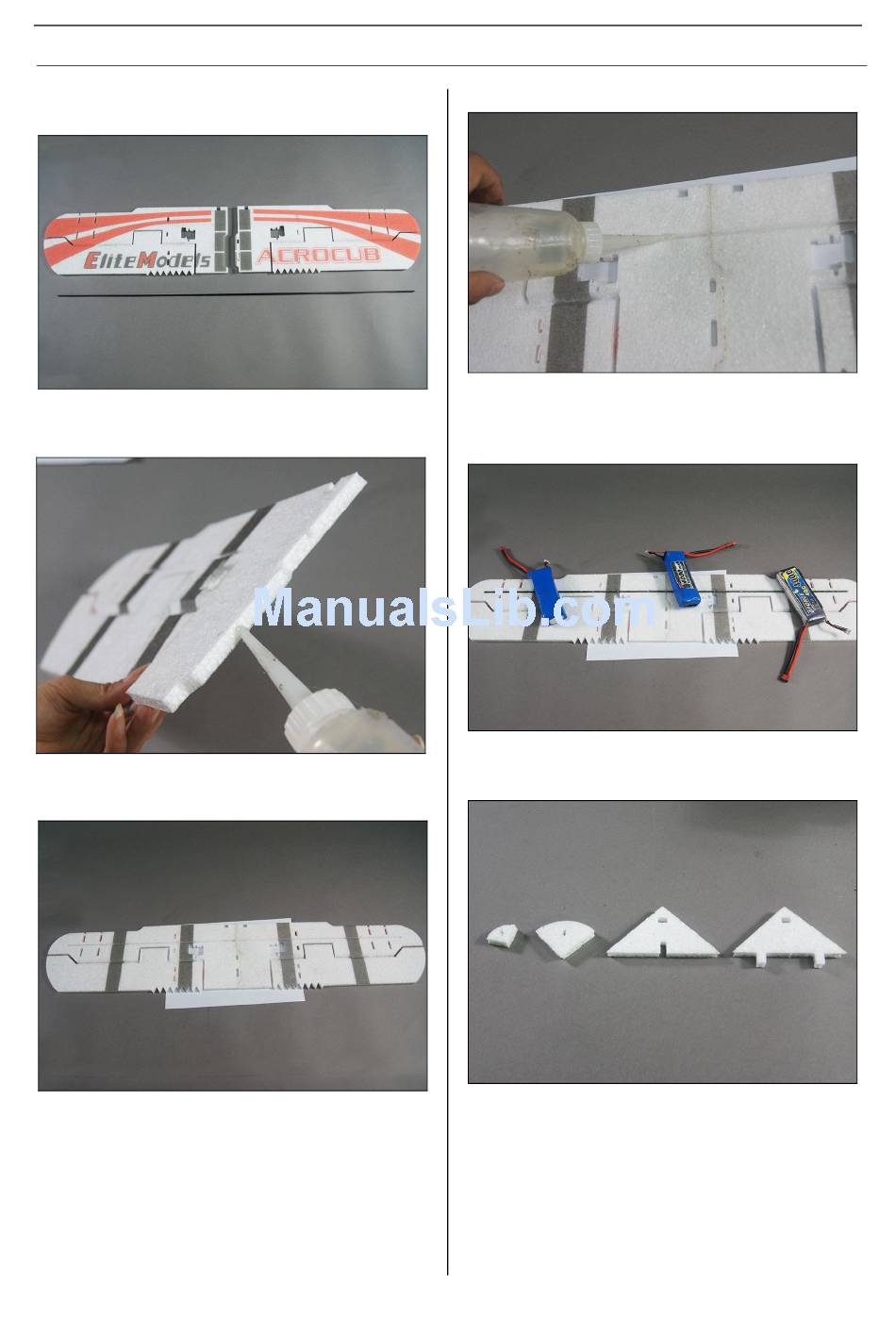

Section 3 Wing and Servos Installation

Step1. Locate the two wing halves and the square
CF spars.
Step2. Apply foam glue evenly onto one edge of
the wing halves.
Step3. Attach two pieces of wing halves together.
Make sure the spar slots line up with each other.
www.valuehobby.com/8mm-epp-acrocub.html
12
Step4. Apply some foam glue into the slot.
Step5. Push the square CF spar into the slot and
wipe off any glue that squeezes out, weight it down
to keep it all flat.
Step6. Locate the white EPP foam parts shown
below.
