THANK YOU!
We are grateful for your purchase of HYT product. We believe this easy–to-use
radio will provide you with clear and reliable communications at peak efficiency.
This HYT portable two-way radio is a precision device. Treat it with care, and
you will enjoy years of reliable operation.

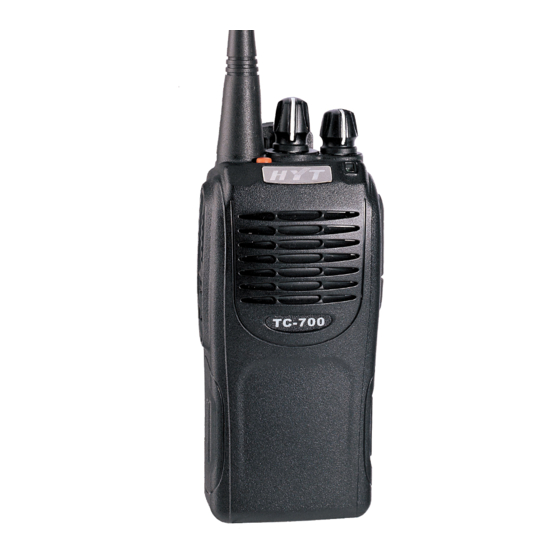

MODELS COVERED IN THIS MANUAL
TC700 VHF Two-way Radio
TC700 UHF Two-way Radio
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HYT TC700

Summary of Contents for HYT TC700

  • Page 1 We are grateful for your purchase of HYT product. We believe this easy–to-use radio will provide you with clear and reliable communications at peak efficiency. This HYT portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation.

  • Page 2: Table Of Contents

    Contents User Safety, Training, and General Information Compliance with RF Energy Exposure Standards FCC Compliance Precautions Product Inspection Battery Information Accessory Installation Attaching/Removing the Battery Attaching/Removing the Antenna Attaching/Removing the Belt Clip Attaching Remote Earphone/Microphone Radio Overview Programmable Auxiliary Functions Basic Operations Advanced Operations Call1/Call2...
  • Page 3 Channel Announce Temporary Enable Channel Announce Enable Communication Range Alert Background Operations Time-out Timer (TOT) Busy Channel Lockout (BCL) and Busy Tone Lockout (BTL) Battery Save Low Battery Alert Safety Check CTCSS/DCS Signalling DTMF Signalling 2-Tone/5-Tone/HDC2400 Signalling Signalling AND/OR Logic PTT ID Troubleshooting Guide Care and Cleaning...

  • Page 4: User Safety, Training, And General Information

    BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards Your HYT two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy.

  • Page 5: Fcc Compliance

    Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines. Approved Accessories For a list of HYT approved accessories, see the accessories page of this user manual or visit the following website which lists approved accessories: http://www.hyt.com.cn FCC Compliance...

  • Page 6: Precautions

    FCC Licensing Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands.

  • Page 7: Product Inspection

    Product Inspection Please carefully unpack the radio. Before use, it is recommended that you inspect the product as follows. First check the shipping carton for any signs of damage. Confirm the supplied product against the packing slip to assure accuracy. If any items are missing or have been damaged during shipment, please file a claim to the carrier immediately.

  • Page 8: Battery Information

    / discharged for two or three times. When the battery power is low, it needs either to be charged or replaced with a new one. Applicable Battery Packs Charge only the HYT approved battery packs. Other batteries may burst and cause personal injury. Notes: 1.
  • Page 9 When radio LED flashes red and three Beeps sound every 30 seconds after the battery is installed, that means battery power is low. Please charge the battery. You are recommended to use HYT-approved, supplied charger; Charger LED will indicate the charging status.
  • Page 10 *After removing the battery from charger, do not insert the battery or another one into charger until charger LED glows green. *If battery is properly inserted into the charger, charger LED will solidly glow red in charging mode and flashes when the battery is damaged or ambient temperature is over high or over low.

  • Page 11: Accessory Installation

    Accessory Installation Attaching the Battery 1. In attaching the battery, make sure the full contact and parallel between the battery and aluminum chassis. Push the battery along the guide on back of the radio until the battery latch at the bottom of the radio locks. (See Figure 1) (Fig.
  • Page 12 Attach Remove (Fig. 3) Attaching the Belt Clip 1. Loosen the screws of belt clip from the main unit. 2. Align the screw eyelets of belt clip holder with those of radio chassis. 3. Use the screws of belt clip to lock it. (See Figure 4) (Fig.

  • Page 13: Attaching Remote Earphone/Microphone

    Attaching Remote Earphone/Microphone 1. Unclose the cover of the earphone/microphone jack (no need to remove it); 2. Insert the earphone/microphone plug into the jack. (See Figure 6) (Fig. 6) Note: The radio is not fully water resistant while using remote earphone/microphone.

  • Page 14: Radio Overview

    Radio Overview (1) PTT Key ●To transmit, hold down the [PTT] key and speak into the microphone; Release it to receive. (2) SK1 (Side Key 1) ●This is a programmable function key. (3) SK2 (Side Key 2) ●This is a programmable function key. (4) Antenna (5) Microphone (6) Speaker...
  • Page 15 clockwise to turn off the radio. When the radio is on, turn the knob to adjust the volume. (10) LED Indicator Radio status is indicated by LED state/color or alert tone. Source radio is turned on LED flashes orange twice while holding down after entering User Wired [PTT+SK2];...
  • Page 16 Transmit Glow red Glow green when carrier is Receive received; Flash green once every Scan second Read Glow red Read/Write Write Glow green DTMF/PTT ID/2Tone Transmitting Glow red /5Tone/HDC2400 Done Glow orange Transmit 2Tone/5Tone/HDC2400 Decoding is completed Flash orange Decode High/Middle/Low Power One Beep Two Beeps...

  • Page 17: Programmable Auxiliary Functions

    Programmable Auxiliary Functions Each of the TK, SK1, SK2 keys can be programmed to access one of the following auxiliary functions with the preset type of key pressing (short press or long press). Please refer to their descriptions in “Advanced Operation”. ●...
  • Page 18 ● Channel Announce Enable ● External Scrambler(optional) ● External Scrambler Backup(optional) ● Communication Range Alert...

  • Page 19: Basic Operations

    Basic Operations 1. Turn On the Radio Rotate the Power/Volume Control knob clockwise to turn on the radio; green LED flashes one time. ● A Beep sounds if alert tone is set by your dealer. 2. Adjust the Volume If your dealer has programmed Monitor or Squelch Off feature to a programmable key, you can press that key to hear the background noise while adjusting the volume to a comfortable level by rotating the Power/Volume Control Knob.

  • Page 20: Advanced Operations

    Advanced Operations The following functions are programmable by your dealer, as described above. Call1/Call2 Press the preprogrammed Call1/Call2 key to transmit the stored DTMF code, 2-tone /5-tone code/HDC2400 Emergency Press the preprogrammed Emergency key, the radio will emit emergency alarm or send ENI (Emergency Number Identity) / background tone to companions or system (selectable by user via programming software).

  • Page 21: Squelch Level Check / Adjust Squelch Level

    ● Monitor Momentary Long press the preprogrammed Monitor Momentary key to open the signalling squelch; release the key to exit. ● Squelch Off Press the preprogrammed Squelch Off key to open the noise squelch; press the key again to exit. ●...

  • Page 22: Voice Encryption

    ● Nuisance Channel Delete Press the preprogrammed Nuisance Channel Delete key to permanently remove the channel from the scan list. The deleted channel can’t return to the scan list even though the radio exits from scan mode or is powered on again. ■...

  • Page 23: Talkaround

    Talkaround Press the preprogrammed Talkaround key, the radio will transmit on the RX frequency. Output Power Check / Adjust Power Level Long press the preprogrammed Output Power Check key, Beep tone sounds to indicate the corresponding power level, a Beep indicates Low power; two Beeps indicate Middle power and three Beeps indicate High power.
  • Page 24 Channel Announce Temporary Enable When you press the preprogrammed Channel Announce Temporary Enable key, two modes can be programmed: Mode 1 (report the current channel number at the beginning) ● Two Beeps sound indicating that the Channel Announce feature is temporarily inactivated;...

  • Page 25: Background Operations

    Background Operations Time-Out-Timer (TOT) Time-Out-Timer is used to prevent someone from using the same channel for a long time. If the transmission exceeds the preset time (set by your dealer), transmission will be inhibited and an alert tone will sound. To stop the alert tone, release the [PTT] key. Your dealer can program a TOT Pre-Alert feature to alert you just before the TOT elapses.
  • Page 26 Low Battery Warning Low Battery Warning alerts you to recharge or replace the battery. When the battery voltage becomes low, radio LED will flash red and three Beeps sound every 30 seconds, indicating to recharge or replace the battery with a new one. Safety Check When receiving a safety check call, the radio will emit an alert tone in preprogrammed time.
  • Page 27 activated only when the matching 2-Tone/5-Tone/HDC2400 signals are received. Likewise, your signals will be received only by parties using the same 2-Tone/5-Tone/ HDC2400 signals. ● The LED glows red during transmission; when the transmission is completed, the LED solidly glows orange until the preset time elapses. ●...

  • Page 28: Troubleshooting Guide

    Troubleshooting Guide Trouble Solution *Battery may be used up. Please recharge or replace No power the battery. *The battery may not be properly installed. Remove the battery and attach it again. Power doesn't last long even if *Battery life is over, please replace it with a new one. fully charged Can't talk to or hear group *Make sure you are using the same frequency and...

  • Page 29: Optional Accessories

    Optional Accessories Earholder style ear microphone Earholder style ear microphone EHM02 (with tube) EHM01 Earbud style ear microphone ESM01 Remote speaker microphone SM06M1 Antenna (VHF/UHF) Transparent water-proof bag LCBY03 Receive-only Earpiece with Transparent Audio Tube Leather Carry Case LCBN11 ESS04...

  • Page 30: Frequency Chart

    Frequency CTCSS/DCS 2-Tone/5-Tone HYT endeavors to achieve the accuracy and completeness of this manual, but is not liable for any possible omission and printing mistakes. All the above specifications and design are subject to change by HYT without prior notice.
