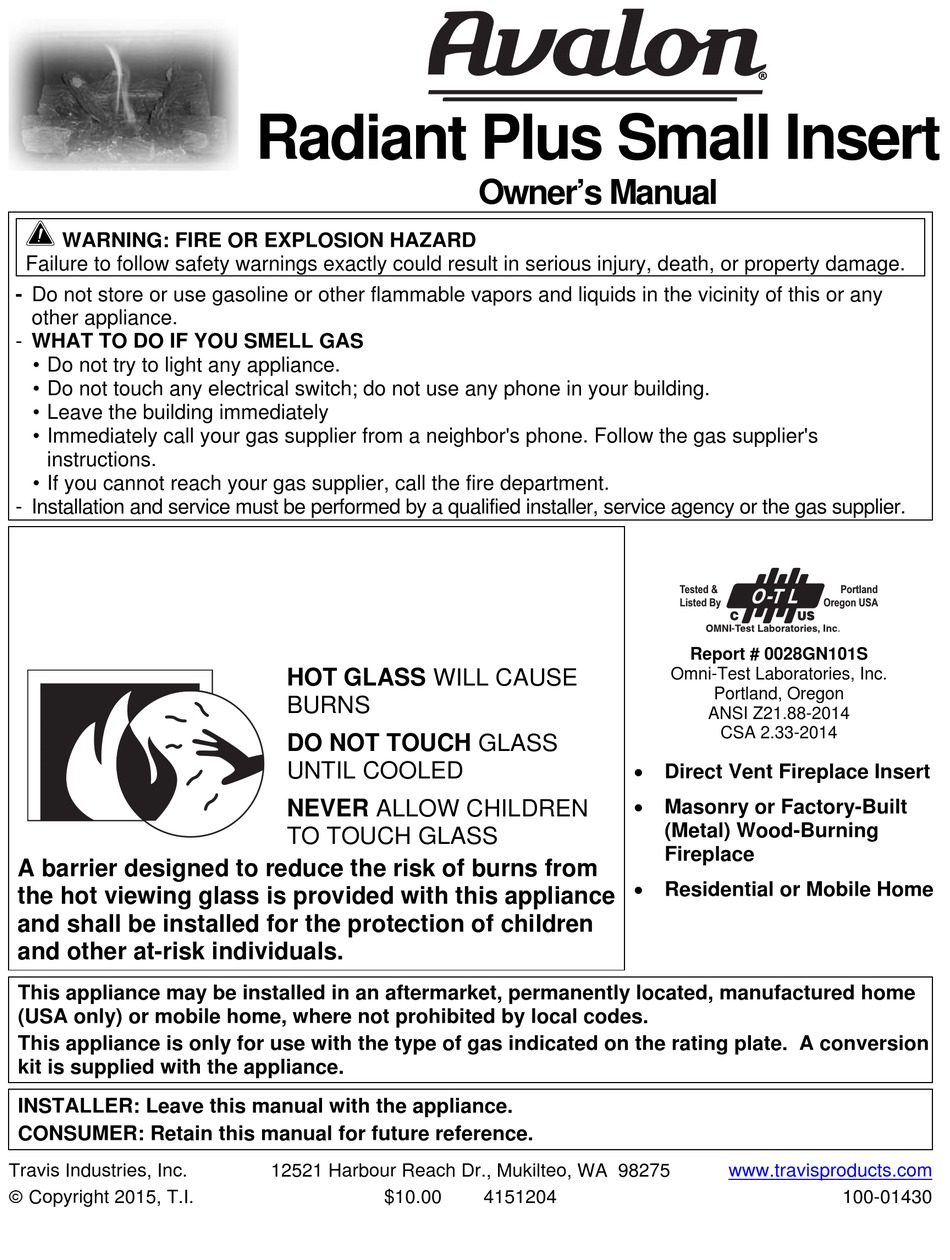

Avalon Radiant Plus Small Insert Owner's Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

WARNING: FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Leave the building immediately

• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's

instructions.

• If you cannot reach your gas supplier, call the fire department.

- Installation and service must be performed by a qualified installer, service agency or the gas supplier.

A barrier designed to reduce the risk of burns from

the hot viewing glass is provided with this appliance

and shall be installed for the protection of children

and other at-risk individuals.

This appliance may be installed in an aftermarket, permanently located, manufactured home

(USA only) or mobile home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. A conversion

kit is supplied with the appliance.

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

Travis Industries, Inc.

Radiant Plus Small Insert

HOT GLASS WILL CAUSE

BURNS

DO NOT TOUCH GLASS

UNTIL COOLED

NEVER ALLOW CHILDREN

TO TOUCH GLASS

12521 Harbour Reach Dr., Mukilteo, WA 98275

$10.00

Owner's Manual

 Direct Vent Fireplace Insert

 Masonry or Factory-Built

 Residential or Mobile Home

French language manuals at travisindustries.com

Manuels de Français langue à travisindustries.com

4151204

Tested &

Portland

Listed By

Oregon USA

Report # 0028GN101S

Omni-Test Laboratories, Inc.

Portland, Oregon

ANSI Z21.88-2014

CSA 2.33-2014

(Metal) Wood-Burning

Fireplace

www.travisproducts.com

100-01430

Table of Contents

Need help?

Do you have a question about the Radiant Plus Small Insert and is the answer not in the manual?

Questions and answers

Summary of Contents for Avalon Radiant Plus Small Insert

Page 1 Radiant Plus Small Insert Owner’s Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Page 2: Introduction
Introduction Introduction We welcome you as a new owner of a Radiant Insert. In purchasing this fireplace insert you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. It is one of the finest home heaters the world over. This manual will explain the installation, operation, and maintenance of this heater.
Page 3: Table Of Contents
Table of Contents Introduction ............2 Surround Panel Installation ......20 Important Information ........2 Glass Frame Removal and Installation ..21 Listing Details ........... 2 Glass Frame Removal and Installation (continued) ............. 22 ...
Page 4 Safety Precautions  Failure to follow all of the requirements may result in property damage, bodily injury, or even death. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns.
Page 5 Safety Precautions Safety Warnings (continued)  Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance.  Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.
Page 6: Features
Features and Specifications Features Installation Options  Works During Power Outages Residential or Mobile Home Blower Optional  Fireplace Insert Standing Pilot  Masonry or Factory Built (Metal) Wood- Remote Programmable Thermostat Included Burning Fireplace Variable-Rate Heat Output  Natural Gas or Propane Heating Specifications Natural Gas Propane...
Page 7: Installation Warnings
Installation (for qualified installers only) Installation Warnings  Failure to follow all of the requirements may result in property damage, bodily injury, or even death.  This heater must be installed by a qualified installer who has gone through a training program for the installation of direct vent gas appliances. ...
Page 8: Fireplace Requirements
Installation (for qualified installers only) Fireplace Requirements  Insert must be placed within a code-conforming masonry fireplace or tested and listed factory- built (metal) wood-burning fireplace. Repair any fireplace damage prior to installation.  Because the insert may use an optional circulation blower, clean the fireplace, smoke shelf, and chimney prior to installation.
Page 9: Factory-Built (Metal) Wood-Burning Fireplace Requirements
Installation (for qualified installers only) Factory-Built (Metal) Wood-Burning Fireplace Requirements NOTE: Any parts that are removed must be removed in a way that would allow them to be re- installed if the insert is ever removed (removal of rivets or screws is acceptable). The damper ("A") and grate (with log set) ("B") must be removed (see the illustration below) The smoke shelf ("C"), internal baffles ("D"), screen ("E"), masonry lining or refractory ("G"...
Page 10: Leveling Legs
Installation (for qualified installers only) Leveling Legs This heater includes front and rear leveling legs to accommodate fireplaces with a step- Loosen these bolts, slide the down firebox. legs to the correct position, then re-tighten the bolts. 3/8" Wrench Electrical Requirements for Optional Blower ...
Page 11: Clearances
Installation (for qualified installers only) Clearances Due to the high temperature of the heater, it should be located out of traffic and away from furniture and draperies. Side Wall Minimum Clearances k Sidewall to Insert 5” (127mm) l Side Facing (non-combustible) 5”...
Page 12: Gas Line Requirements
Installation (for qualified installers only) Gas Line Requirements MASSACHUSETTS INSTALLATIONS - WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS:  Flexible connector must not be longer than 36 inches. ...
Page 13: Vent Requirements
Installation (for qualified installers only) Vent Requirements Travis Industries manufactures a vent kit specifically for this insert (sku 96200330). It includes 30’ (10M) of vent, hose clamps, and a prairie cap. The flashing on the cap is 18” (458mm) by 18” (458mm). ...
Page 14: Vent Restrictor
Installation (for qualified installers only) Vent Restrictor WARNING: Restrictor adjustment should only be done by a qualified installer. Most installations do not require vent restrictor adjustment. Only those installations determined to be over-drafting require adjustment. The best indication of over-drafting is a hyper-active flame pattern (flames move too quickly).
Page 15: Vent Installation
Installation (for qualified installers only) Vent Installation Secure the vent to the fireplace insert and termination kit using screws. Intake "I" Exhaust "E" 3" (76mm) dia. Gas Liner (3" 76mm) (3" 76mm) Approved Additional Coaxial Sections May Be Added (support as needed) Inlet Exhaust Inlet...
Page 16: Vent Configurations
Installation (for qualified installers only) Vent Configurations Inlet & Exhaust Re-Line Exhaust Only Re-Line Direct Vent Cap (either high wind or Prairie) 6-5/8" to 3" & 3" Colinear Adapter & Flashing Exhaust Exhaust Any cracks or damage inside the chimney must be Inlet repaired.
Page 17: Vent Connector Removal And Installation
Installation (for qualified installers only) Vent Connector Removal and Installation  The vent connector is shipped attached to the insert, but may be removed to facilitate tight installations. See the directions below for installation. 1. Route the flex vent through the chimney from above (leave an extra 3' at the top). Make sure the flex is thoroughly stretched.
Page 18: Vent Connector Removal And Installation (Continued)
Installation (for qualified installers only) Vent Connector Removal and Installation (continued) The vent connector may be removed. This screw holds the connector in place. 1/4" Nutdriver When replacing, make sure the gasket under the connector remains in place. The vent connector slides back and disengages from the three tabs on top of the insert. Connect the flex vent (exhaust and intake) to the vent connector (use self-drilling screws or hose clamps).
Page 19 Installation (for qualified installers only) The vent connector, when hanging from the chimney, may be grasped by reaching above the insert. Carefully move the connector forward, making sure all 3 tabs insert through the connector. Secure the vent connector to the insert using the screw removed earlier. ©...
Page 20: Surround Panel Installation
Installation (for qualified installers only) Surround Panel Installation NOTE: The insert may be installed without surround panels. PANEL SIZE HEIGHT WIDTH PART # Small 25” 38” 96100552 Large 28.5” 40” 96100553 1. The insert should be in position with gas line and flue and intake connections attached, but pulled out slightly to allow panel installation.
Page 21: Glass Frame Removal And Installation
Finalizing the Installation Glass Frame Removal and Installation The appliance must be completely cool before removing the glass. Do not strike or slam the glass. Open the four latches holding the glass Latch frame in place (start with the two below Push in on Top of the glass) - follow the directions shown...
Page 22: Glass Frame Removal And Installation (Continued)
Finalizing the Installation Glass Frame Removal and Installation (continued) The glass latch can come loose from the glass frame. This occurs when the latch is turned 1/8 turn when disengaged from the unit. Follow the directions below to re-install the latch if it comes loose. Hold the latch at an angle and insert it into the slot on the glass frame.
Page 23: Face Installation
Finalizing the Installation Face Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
Page 24: Log Installation
Finalizing the Installation Log Installation The logs are fragile, especially after being exposed to heat.  Make sure the gas control valve is “OFF” and the heater is cool prior to conducting service.  Failure to position the parts in accordance with diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
Page 25 Finalizing the Installation The left log has two holes on the bottom. Place the log so the holes fit over the two mounting studs on the left log stand. The right log has two holes on the bottom. Place the log so the holes fit over the two mounting studs on the right log stand.
Page 26 Finalizing the Installation The left cross log has one hole on the bottom. Place the log so the hole fits over the left pin on the rear log. The front of the log rests on the left log (see picture for orientation). The right cross log has one hole on the bottom.
Page 27: Rock Wool Placement
Finalizing the Installation One twig is included for the front of the firebox. Place it at the front of the firebox as shown below (do not place it over any burner holes). Rock Wool Placement The included rock wool is placed on top of the burner to enhance the glow from the burner. The rock wool works best when it is applied in a very thin, porous layer.
Page 28: Steps For Finalizing The Installation
Finalizing the Installation Steps for Finalizing the Installation Remove the glass (see page 21). NOTE: If using propane (LP) convert the appliance prior to installing the media. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up.
Page 29: Air Shutter Adjustment
Finalizing the Installation 10. Check the air shutter following the directions below. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the media and glass are in place). The flames should be yellow with no sooting. Adjust the air shutter, if necessary, to achieve the correct looking flame. Correct Not Enough Air Too Much Air...
Page 30: Before You Begin
Operation Before You Begin  Read this entire manual before you use your new heater (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Turn off the main gas supply to the appliance during appliance installation or maintenance.
Page 31: Starting The Pilot
Operation Starting the Pilot Remove the glass frame before starting the pilot. Starting the Heater for the First Time  Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces.
Page 33: Remote Control Operation (Continued)
Operation Remote Control Operation (continued) © Travis Industries 4151204 100-01430...
Page 34: Remote Control Operation (Continued)
Operation Remote Control Operation (continued) © Travis Industries 4151204 100-01430...
Page 35: Remote Control Operation (Continued)
Operation Remote Control Operation (continued) © Travis Industries 4151204 100-01430...
Page 36: Normal Operating Sounds
Operation Normal Operating Sounds Extinction Pops It is not unusual, especially on Propane The appliance may creak with change of (LP) appliances, to experience a "pop" temperature -- THIS IS NORMAL. when the burner is shut off. Pilot Assembly The pilot flame will make a slight whisper sound.
Page 37: Battery Replacement
Maintenance DANGER HIGH VOLTAGE: Disconnect power before attempting maintenance or repair. Battery Replacement Four AA batteries are used to power the receiver and two AAA batteries are used to power the remote control. These batteries are required for operation. Replace batteries before each heating season to ensure proper operation. - Remove the heat shield above the receiver (it is held in place with hook-and-loop tape and a tab on the left side).
Page 38: Maintaining Your Heater's Appearance
Maintenance Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface.
Page 39: Replacement Parts List
Maintenance Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. Contact your local Travis Industries Dealer for a Replacement Parts List Wiring Diagram Caution:...
Page 40: Safety Label
Safety Label Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 4151204 100-01430...
Page 41: Conditions & Exclusions
Limited 7 Year Warranty Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com, or complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 12521 Harbour Reach Drive, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser from the date of purchase as follows: Check with your dealer in advance for any costs to you when arranging a warranty call.
Page 42: Lp (Propane) Conversion Instructions
Optional Equipment for qualified installers only) LP (Propane) Conversion Instructions Convert the appliance prior to installing the gas line to ensure proper gas use. 1. Remove the glass frame. Remove the logs (if installed). 2. Remove the two log stands. 3.
Page 43 Optional Equipment for qualified installers only) 5. Install the LP (propane) pilot orifice following the instructions below. (a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).
Page 44 Optional Equipment for qualified installers only) 7. Remove the cover plate and gasket over the low rate screw. 1/4" Nutdriver 8. Remove the low rate screw and discard. Install the LP (propane) low rate screw (1.2mm – stamped “120” near the base) – make sure it screws in all the way. Replace the cover plate and screws. HINT: Unscrew the rate screw until it becomes loose.
Page 45 Optional Equipment for qualified installers only) 9. Unscrew the conversion plug on the front of the valve using a ¼” flat-head screwdriver (see pictures below). Carefully unsnap the plastic cap on the inward end of the conversion plug. Rotate the plug 180°...
Page 46: Optional Firebacks
Optional Equipment for qualified installers only) Optional Firebacks WARNING Turn off gas to the appliance and make sure it has fully cooled prior to conducting service. Slide the rear fireback behind the baffle on top of the firebox then pivot it into place. It rests on the shelf at the back of the firebox. Remove the glass frame MAKE SURE THE FULL BRICK IS AT THE TOP and logs (see the manual...
Page 47 Optional Equipment for qualified installers only) Optional Blower The optional blower is installed after the insert is installed and connected. See the instructions included with the blower for details. © Travis Industries 4151204 100-01430...
Page 48 Index Additional Items Required ....... 7 LP Conversion Instructions ......42 Battery Replacement ........37 Maintaining Your Heater's Appearance ... 38 Before You Begin ..........30 Normal Operating Odors ........36 Clearances ............11 Normal Operating Sounds ....... 36 Dimensions ............6 Order of Installation .........
