Avalon Hideaway Bungalow Face

COMPATIBILITY

• Avalon Hideaway Fireplace

INSTALLATION INSTRUCTIONS

N O T E :
If installing with thick facing or retrofitting tile, follow the directions for "Push-On" face brackets on page 3.
!
Turn off gas to the appliance and make sure it has fully cooled prior to conducting service.
1

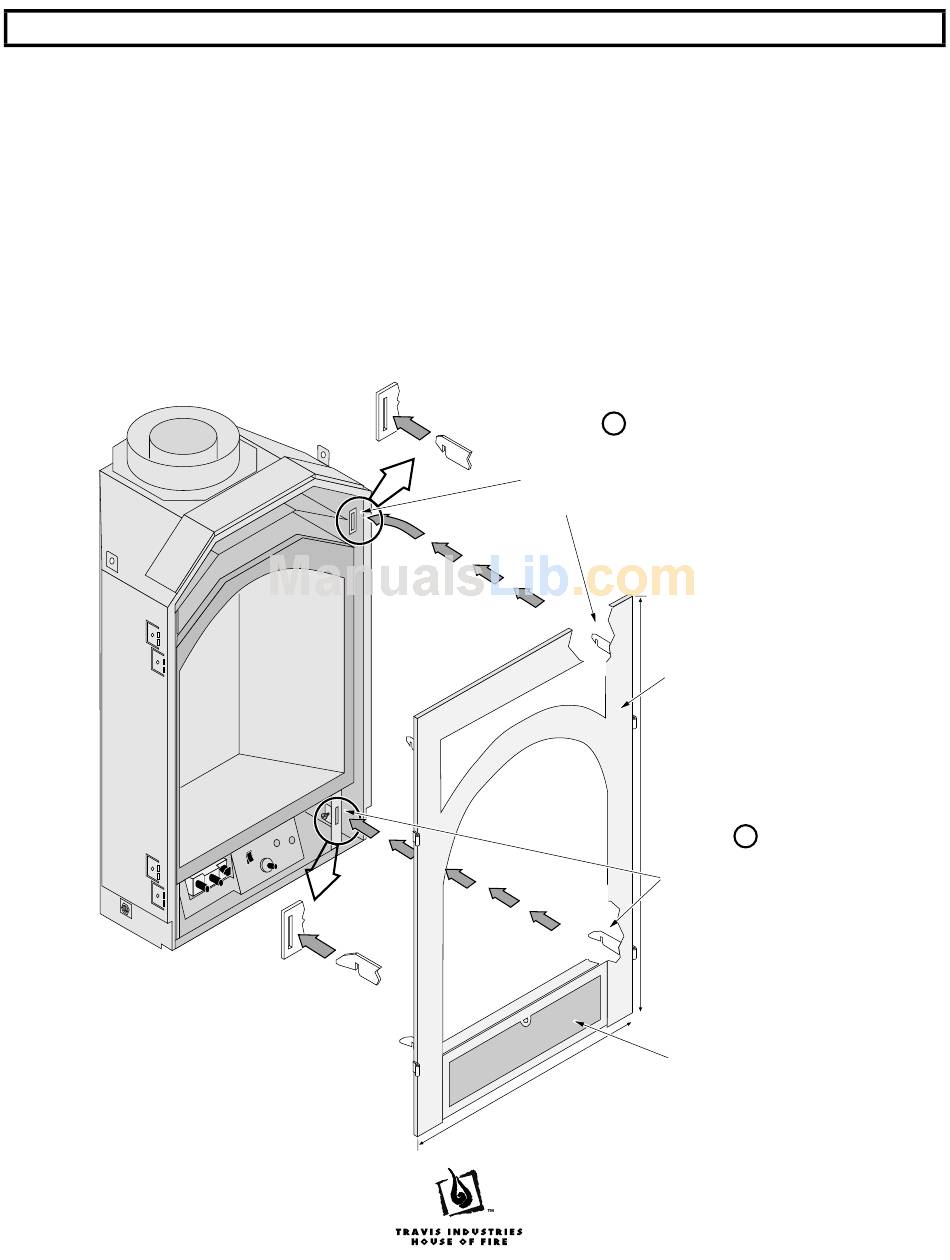

Remove the doors from the backing plate. Install the backing plate as shown in the illustration below.
Page 1 of 4
(95700121)

PACKING LIST

• Face (includes Backing Plate and Doors)
• (2) Handles
• (4) 8-32 x 1/2" Screws
• Push-On Face Brackets (for 21 TRV Only)
Lift and rotate the backing plate
forward until the top brackets lock
into the upper slots.
21-1/8"
b
Backing Plate
35-3/8"
a
Tilt the backing plate back and
insert the bottom brackets into
the lower slots until they lock in
place.
Access Door
(for accessing controls)
Printed April 16, 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21 TRV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalon 21 TRV

Summary of Contents for Avalon 21 TRV

  • Page 1: Packing List

    • Face (includes Backing Plate and Doors) • (2) Handles • (4) 8-32 x 1/2" Screws • Push-On Face Brackets (for 21 TRV Only) Lift and rotate the backing plate forward until the top brackets lock into the upper slots.
  • Page 2 Avalon Hideaway Bungalow Face Hang the left and right doors on the backing plate. Attach the handles and verify magnet position (if applicable). Page 2 of 4 (95700121) Hold each door at a 90°angle to the backing plate and hang in place.
  • Page 3 Tile Retrofit Installations If a 21 TRV is already installed into a standard drywall installation with the standard brackets, it is extremely difficult to install tile behind face (this requires the fireplace location to be moved forward). With the new push-on brackets, the face may be located up to 1”...

  • Page 4: Face Installation And Removal

    Avalon Hideaway Bungalow Face Preparing the Fireplace for Thick Facing The 21 TRV has a sliding heat shield that must be properly positioned when using thick facing. See the directions below for adjusting the heat shield. Loosen these two nuts above the firebox (3/8”...
