Installing or Replacing a PCIe Card
This document describes how to install a new PCIe card
or remove and replace an existing PCIe card or riser in a
SnapServer 2000 Series server or REO 4600 appliance.
Follow this procedure carefully. Improper installation
may result in damage which voids existing warranties.
WARNING: To reduce the risk of electric shock or damage to
equipment, always remove any power cords while working with
the unit.
AVERTISSEMENT: pour réduire le risque de choc électrique ou
endommagement de l'équipement, retirez toujours les
cordons électriques en travaillant avec l'appareil.
CAUTION: While working with the unit, observe standard
Electrostatic Discharge (ESD) precautions to prevent damage
to micro-circuitry or static-sensitive devices.
Depending on your server model, the SnapServer 2000
Series of products includes, or can be upgraded to
include, the following PCIe cards:
• RAID Controller Card
• Journal Drive/Battery Backup Unit (BBU) Card
• SAS UIO Module
• Parallel SCSI Card
• Ethernet Card
The REO 4600 appliance includes, or can be upgraded
to include, the following PCIe cards:
• RAID Controller Card
• Hardware Compression Card
• Fibre Channel Card
• Ethernet Card
IMPORTANT: All these cards plug into a riser card in the center
of the chassis. The riser card for the NAS N2000 is different in
that the bottom slot is a UIO slot (blue plug).
10400299-001 08/2010
SnapServer
Contents of this Procedure
This procedure provides the following instructions to
replace or install PCIe cards:
1.
Prepare the Server
2.
Replace an Existing Card
• Locate the Card to be Replaced
• Replace a RAID Controller, SAS UIO Module,
Fibre Channel, Parallel SCSI, Ethernet, or
Hardware Compression Card
• Replace the Journal Drive/BBU Assembly
(SnapServer SAN S2000 only)
3. Install a New Card
4. Reactivate the Server
5.
Verify the Update
6. Return Any Removed Part
Prepare the Server
Disconnect and Power Off
1. For the SAN S2000, use the GUI to make sure none
of the initiators (servers) have active connections.
2. Power off the server.
Power
Button

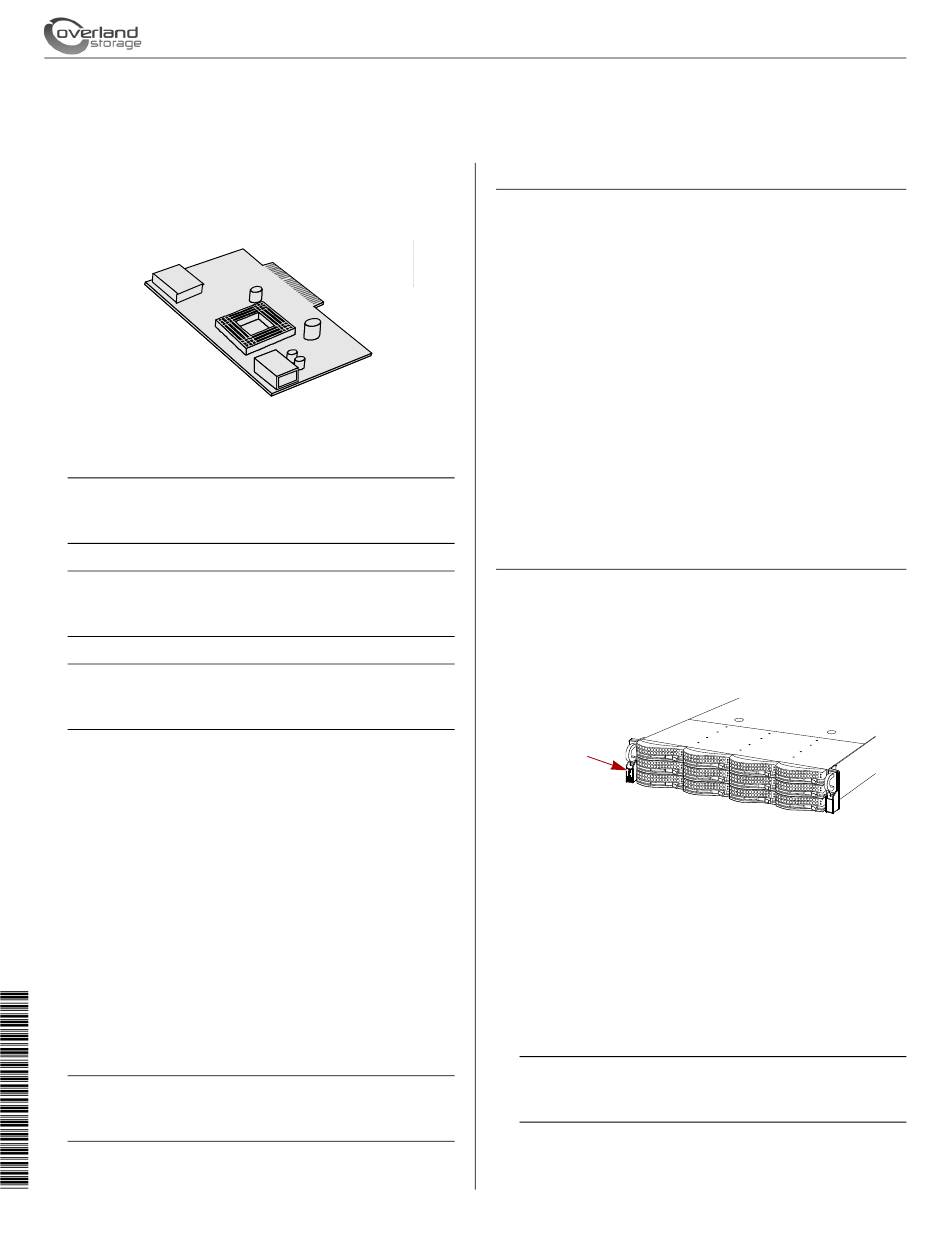

Figure 1. Power Button on Left Flange
Press the Power button on the front left for no more
than one second. While there is no obvious change,
the server starts its shutdown process.
3. Wait 1-2 minutes, and then verify that the power
LED is off before continuing.
4. Disconnect the power cords.
5. Disconnect all the remaining cables.
Remove the Disk Carriers
IMPORTANT: Overland recommends that you remove the drive
assemblies to lessen the unit's weight prior to removal. The
assemblies must be reinstalled in the same slots.
1. Remove the bezel:
a. If necessary, unlock the bezel.
