S3100 Install Manual (For S3100-
9/18/26TC (TP))
V5.0
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue
Hi-tech Park
Chengdu, Sichuan Province
People's Republic of China - 610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948, 85148139
URL: http://
www.maipu.com
Email:
overseas@maipu.com
Maipu Confidential & Proprietary Information
Page 1 of 26
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maipu SM3100-9TC-AC
Summary of Contents for Maipu SM3100-9TC-AC
- Page 1 S3100 Install Manual (For S3100- 9/18/26TC (TP)) V5.0 Maipu Communication Technology Co., Ltd No. 16, Jiuxing Avenue Hi-tech Park Chengdu, Sichuan Province People’s Republic of China - 610041 Tel: (86) 28-85148850, 85148041 Fax: (86) 28-85148948, 85148139 URL: http:// www.maipu.com Email: overseas@maipu.com...
- Page 2 Maipu makes no representations or warranties with respect to this document contents and specifically disclaims any implied warranties of merchantability or fitness for any specific purpose. Further, Maipu reserves the right to revise this document and to make changes from time to time in its content without being obligated to notify any person of such revisions or changes.
-
Page 3: Maipu Feedback Form
Maipu Feedback Form Your opinion helps us improve the quality of our product documentation and offer better services. Please fax your comments and suggestions to (86) 28-85148948, 85148139 or email to overseas@maipu.com. Document Title S3100 Install Manual (For S3100-9/18/26TC (TP)) V5.0 Product... -
Page 4: Table Of Contents
Verify the Package Contents ....................22 Required Tools and Materials ....................22 Installation Guide....................22 Installing the Switch ......................22 Connecting Console.......................23 SFP Transceiver Installation ....................24 Copper Cable/Fiber Cable Connection..................24 Power Supply Connection ......................25 Maipu Confidential & Proprietary Information Page 4 of 26... -
Page 5: Introduction

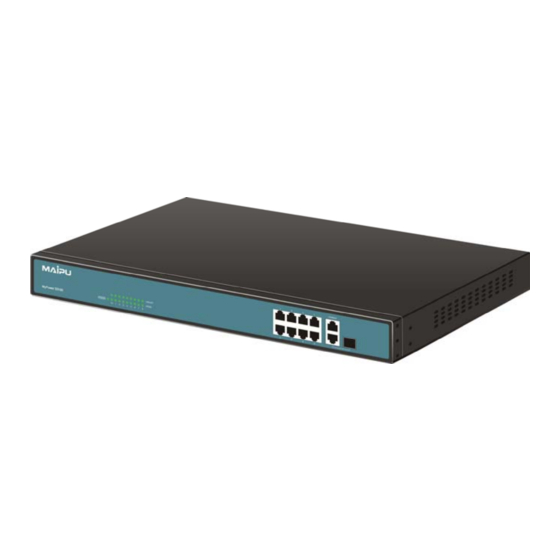

S3100 Install Manual (For S3100-9/18/26TC (TP)) V5.0 Introduction Product Brief My POWER S3100 series switch includes nine models: SM3100-9TC-AC: Figure 1-1 SM3100-9TC-AC switch SM3100-9TC-DC48: Figure 1-2 SM3100-9TC-DC48 switch SM3100 -9TP-AC: Maipu Confidential & Proprietary Information Page 5 of 26... - Page 6 S3100 Install Manual (For S3100-9/18/26TC (TP)) V5.0 Figure 1-3 SM3100-9TP-AC sw itch SM3100- -DC48: Figure 1-4 SM3100-9TP-DC48 switch 18TC SM3100- -AC: Figure 1-5 SM3100-18TC-AC switch SM3100-26TC-AC (S3026G-M-AC V2): Figure 1-6 SM3100-26TC-AC (S3026G-M-AC V2) switch 26TC SM3100- -DC48: Maipu Confidential & Proprietary Information Page 6 of 26...
-
Page 7: Physical Specifications
Figure 1-8 SM3100-26TP-AC switch 26TP SM3100- -DC48: Figure 1-9 SM3100-26TP-DC48 switch Physical Specifications Port Console 1 RJ-45 serial console port AC/DC Power Input AC: 100 ~ 240VAC，50 ~ 60Hz Power Consumption SM3100-9TC-AC: max 15W Maipu Confidential & Proprietary Information Page 7 of 26... - Page 8 -40°C ~ 70°C Relative Humidity 10% ~ 90%, no condensate Dimension SM3100-9TC-AC: (W * H * D) 282.2mm×44mm×178mm SM3100-9TC-DC48: (W * H * D) 442.9mm×44mm×230.2mm SM3100-9TP-AC: (W * H * D) 442.9mm×44mm×230.2mm SM3100-9TP-DC48: (W * H * D) 442.9mm×44mm×230.2mm SM3100-18TC-AC: (W * H * D) 442.9mm×44mm×230.2mm SM3100-26TC-AC (S3026G-M-AC V2): (W * H * D) 442.9mm×44mm×230.2mm...
-
Page 9: Appearance
S3100 Install Manual (For S3100-9/18/26TC (TP)) V5.0 Appearance Front Panel SM3100-9TC-AC front panel has eight 10/100Base-T ports, one Combo port (one RJ-45 and one SFP port), one Console port and 19 LEDs. The front panel of SM3100-9TC-AC switch: Figure 1-10 Front panel of SM3100-9TC-AC SM3100-9TC-DC48 front panel has eight 10/100Base-T ports, one Combo port (one RJ-45 and one SFP port), one Console port and 19 LEDs. - Page 10 Figure1-17 Front panel SM3100-26TP-DC48 front panel has 24 10/100Base-T ports, two Combo ports (two RJ-45 and two SFP ports), one Console port and 77 LEDs. The front panel of SM3100-26TP-DC48 switch: Maipu Confidential & Proprietary Information Page 10 of 26...
-
Page 11: Back Panel
S3100 Install Manual (For S3100-9/18/26TC (TP)) V5.0 of SM3100-26TP-DC48 Figure 1-18 Front panel Back Panel The back panel of SM3100-9TC-AC, SM3100-18TC-AC, and SM3100-26TC- AC (S3026G-M-AC V2) has one 220V AC power receptacle, as follows: 00-9TC-AC Figure 1-19 Back panel of SM31... -
Page 12: Leds
MyPower S3100 series switch include port indicator and system status indicator. The meanings of the LEDs are the same. Port In dicator Description Figure 1-28 SM3100-9TC-AC/ SM3100-9TC-DC48 LED diagram Table 1-1 SM3100-9TC-AC/ SM3100-9TC-DC48 port indicator description Maipu Confidential & Proprietary Information Page 12 of 26... - Page 13 The port is linked as 10Mbps or in the down state. On (Green) The port is linked as 1000Mbps. PortG1 (SPEED) The port is linked as 10/100Mbps or in the down state. Maipu Confidential & Proprietary Information Page 13 of 26...
- Page 14 The port is linked as 10Mbps or in the down state. On (Green) The port is linked as 1000Mbps. PortG1/G2 (SPEED) The port is linked as 10/100Mbps or in the down state. Maipu Confidential & Proprietary Information Page 14 of 26...
- Page 15 System Status Indicator Description agram Figure 1-33 SM3100 LED di Table 1-6 SM3100 system indicator description Status Description On (Green) The internal power is operating normally Power Power is off or error Maipu Confidential & Proprietary Information Page 15 of 26...
-
Page 16: Led Status Description
Port is power on Port is power off Figure 1-35 SM3100-26TP-AC/ SM3100-26TP-DC48 LED diagram Table 1-8 SM3100-26TP-AC/ SM3100-26TP-DC48 POE indicator description Status Description Green Port is power on Port is power off Maipu Confidential & Proprietary Information Page 16 of 26... -
Page 17: Device Installation
The recommended value for dust content and particle diameter in the site is shown below: Maipu Confidential & Proprietary Information Page 17 of 26... - Page 18 Relative humidity Long term condition Short term condition Long term condition Short term condition 15 ~ 30°C 0 ~ 50°C 40 ~ 65% 10 ~ 90% Table2-3 Environmental Requirements: Temperature and Humidity Maipu Confidential & Proprietary Information Page 18 of 26...
-
Page 19: Power Supply
Static electric can cause damage to internal circuits, even the entire switch. Follow these guidelines for avoiding ESD damage: Ensure proper earth grounding of the device; Perform regular cleaning to reduce dust; Maintain proper temperature and humidity; Maipu Confidential & Proprietary Information Page 19 of 26... - Page 20 If a standard 19’’ rack is not available, the switch can be placed on a clean level desktop, leave a clearance of 10mm around the switch for ventilation, and do not place anything on top of the switch. Maipu Confidential & Proprietary Information Page 20 of 26...
-
Page 21: Installation Notice
Potential risk include: Electric leakage, Power supply arcing, Power line breakage, Imperfect earth, Overload circuit and Electrical short circuit. If electric shock, fire, electrical short circuit occurs, please cut off the Maipu Confidential & Proprietary Information Page 21 of 26... -
Page 22: Installation Preparation
Users should prepare the required tools by themselves. Installation Guide Installing the Switch Please mount the switch as below: Attach the 2 brackets on the switch with screws provided in the accessory kit. Maipu Confidential & Proprietary Information Page 22 of 26... -
Page 23: Connecting Console
Do not block the blowholes on the switch to ensure the proper operation of the switch. Connecting Console provide a RJ45 serial console port. MyPower S3100 series switch Figure 2-3 Connecting Console to S3100 The connection procedure is listed below: Maipu Confidential & Proprietary Information Page 23 of 26... -
Page 24: Sfp Transceiver Installation
Step 3: Check all status indicators for the corresponding ports; a lighted LED indicates that the link has been established, otherwise the link is not ready and the cable should be examined. Caution Maipu Confidential & Proprietary Information Page 24 of 26... -
Page 25: Power Supply Connection
That may hurt your eyes. Power Supply Connection MyPower S3100 use the power is 220VAC. Please read the power input specification for the detailed information. AC Power supply connection procedure is described as below: Maipu Confidential & Proprietary Information Page 25 of 26... - Page 26 Caution The input voltage must be within the required range, otherwise the switch can be damaged or malfunction. Do not open the switch shell without permission. It can cause physical injury. Maipu Confidential & Proprietary Information Page 26 of 26...
