S3100 Install Manual (For
SM3100-28TC-AC and SM3100-
52TC-AC)
V4.0
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue
Hi-tech Park
Chengdu, Sichuan Province
People's Republic of China - 610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948, 85148139
URL: http://
www.maipu.com
Email:
overseas@maipu.com
Maipu Confidential & Proprietary Information
Page 1 of 19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maipu SM3100-28TC-AC
Summary of Contents for Maipu SM3100-28TC-AC
- Page 1 S3100 Install Manual (For SM3100-28TC-AC and SM3100- 52TC-AC) V4.0 Maipu Communication Technology Co., Ltd No. 16, Jiuxing Avenue Hi-tech Park Chengdu, Sichuan Province People’s Republic of China - 610041 Tel: (86) 28-85148850, 85148041 Fax: (86) 28-85148948, 85148139 URL: http:// www.maipu.com Email: overseas@maipu.com...
- Page 2 Maipu makes no representations or warranties with respect to this document contents and specifically disclaims any implied warranties of merchantability or fitness for any specific purpose. Further, Maipu reserves the right to revise this document and to make changes from time to time in its content without being obligated to notify any person of such revisions or changes.
-
Page 3: Maipu Feedback Form
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Maipu Feedback Form Your opinion helps us improve the quality of our product documentation and offer better services. Please fax your comments and suggestions to (86) 28-85148948, 85148139 or email to overseas@maipu.com. -
Page 4: Table Of Contents
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Contents Product Introduction..................5 Overview .......................5 Product Features ....................6 Physical Features....................8 Product Appearance....................9 Front Panel ..........................9 Back Panel ..........................10 LEDs.............................10 Device Installation .................. 12 Installation Notice....................12 Installation Environment......................12 Installation Instructions ......................15 Security Warnings .........................15 Preparations for Installation ................... -
Page 5: Product Introduction

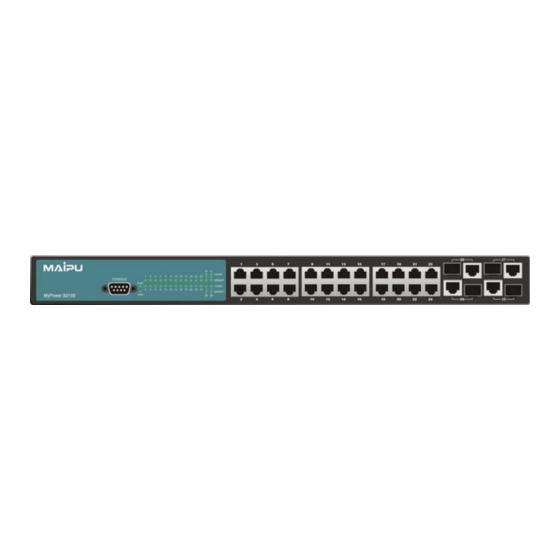

S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Product Introduction Figure 1-1 SM3100-28TC-AC switch Figure 1-2 SM3100-52TC-AC switch Overview Intelligent Stackable Secure Ethernet Access Switch can not MyPower S3100 only be utilized in large-scale enterprise networks, campus networks and metropolitan area networks as access equipment, but also can meet the demand of medium-scale office networks. -
Page 6: Product Features
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Product Features MAC Address Control Besides the standard dynamic learning of MAC address, MyPower S3100 Intelligent Stackable Secure Ethernet Access Switch also supports several MAC managing methods based on the MAC address list. For secure access, the MAC address binding function can restrict the MAC addresses of access devices connected to a port. - Page 7 S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Limited, we can supply a whole set of integrated IEEE802.1x access authentication and cost-counting resolution to satisfy the need of access, authentication and cost-counting, ensuring the network’s security and maintaining its operation.
-
Page 8: Physical Features
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 information. This function can be used to debug network faults and monitor the network traffic. DHCP Server, Client MyPower S3100 Intelligent Stackable Secure Ethernet Access Switch supports DHCP server, which can dynamically allocate IP addresses for equipments, and bind MAC with IP by designating a specified IP for a specified MAC. -
Page 9: Product Appearance
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Power Consumption 52TC SM3100-28TC-AC, SM3100- -AC: 30W Operating Temperature 0°C~50°C Storage Temperature -40°C~70°C Relative Humidity 10%~90%, non-condensing Size H * D) 440mm×44mm×171mm SM3100-28TC-AC (W * SM3100-52TC-AC: (W * H * D) 440 mm×44mm×229mm... -
Page 10: Back Panel
SM3100-52TC-AC LEDs The LED indicators of MyPower S3100 switch include: PWR, DIAG, Link/Act and 1000M indicators. The LED indicators of SM3100-28TC-AC switch are as follows: Figure 1-7 LED indicators of SM3100-28TC-AC switch The status description of the LED indictors: Table 错... - Page 11 S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 SM3100-52TC-AC switch does not have any 1000M indicator. The Link/ACT indicator of 100M port is above the corresponding port and the Link/ACT indicator of 1000M port is at the right of the corresponding port.
-
Page 12: Device Installation
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Device Installation Installation Notice To ensure your security and the normal operation of series MyPower S3100 switch, please carefully read the following instructions and notices while installing and using MyPower S3100 intelligent stackable secure Ethernet access switch. - Page 13 S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Table 2-1 Recommended Working Environment (Dust Content and Particle Diameter) Max Diameter (μm) Max Diameter (particles 1.4×10 7×10 2.4×10 1.3×10 Other than dust, the content of salt, acid and sulfide in the air should also be restricted to meet the requirements of switch’s working environment,...
- Page 14 S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 P o w e r The switch uses module switching power. The parameters of AC power are as below: Input Voltage: 100-240VAC Frequency: 50-60Hz Total power consumption: ≤30W Before powering on the switch, please make sure a proper grounding of the power supply system and the stability of the input power.
-
Page 15: Installation Instructions
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Use electromagnetic shielding if necessary. R a c k C o n fi g u r at ion The switch size fits the standard 19’’ rack. Pay attention to the following instructions to ensure a good ventilation and air circulation: All devices on the rack will generate heat during their operation, therefore vents and fans are required for an enclosed rack. -
Page 16: Preparations For Installation
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Do not attempt to conduct any operation which may cause physical injuries, accidents or damage the switch. Do not install, move or disclose the switch or its modules with power on, to prevent physical injuries and device damages. -
Page 17: Device Installation
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Flat-blade screwdriver ESD wrist strap Antistatic uniform Caution The tools above are not provided along with the switch. Device Installation Mount Switch onto a Rack MyPower S3100 Intelligent Stackable Secure Ethernet Access Switch can be mounted onto a standard 19’’... -
Page 18: Console Cable Connection
S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 The brackets are used to fix the switch on the rack rather than bearing its weight, so it is recommended to place a rack shelf under the switch. Do not place anything on top of the switch or block the vents, to prevent device damages and abnormal operation. - Page 19 S3100 Install Manual (For SM3100-28TC-AC and SM3100-52TC-AC) V4 Figure 2-3 Attaching power cable to MyPower S3100 switch Insert one end of the power cable provided in the accessory kit into the power socket in the back panel of the switch, and the other end to the power source socket with overload and leakage protection.
