MP2600D, MP2600C & MP1700E Series Installation Manual V1.4
MP2600D&MP2600C&MP1700E
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue
Hi-tech Park
Chengdu, Sichuan Province
People's Republic of China - 610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948
URL: http://
www.maipu.com
Email:
overseas@maipu.com
Maipu Confidential & Proprietary Information
Series Routers
Installation Manual V1.4
Page 1 of 52
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maipu MP2600C Series
Summary of Contents for Maipu MP2600C Series
- Page 1 MP2600D, MP2600C & MP1700E Series Installation Manual V1.4 MP2600D&MP2600C&MP1700E Series Routers Installation Manual V1.4 Maipu Communication Technology Co., Ltd No. 16, Jiuxing Avenue Hi-tech Park Chengdu, Sichuan Province People’s Republic of China - 610041 Tel: (86) 28-85148850, 85148041 Fax: (86) 28-85148948 URL: http:// www.maipu.com...
-
Page 2: Document History
Maipu makes no representations or warranties with respect to this document contents and specifically disclaims any implied warranties of merchantability or fitness for any specific purpose. Further, Maipu reserves the right to revise this document and to make changes from time to time in its content without being obligated to notify any person of such revisions or changes. -
Page 3: Maipu Feedback Form
Your opinion helps us improve the quality of our product documentation and offer better services. Please fax your comments and suggestions to (86) 28-85148948, 85148139 or email to overseas@maipu.com. Document Title MP2600D, MP2600C & MP1700E SERIES INSTALLATION MANUAL V1.4 Product... -
Page 4: Table Of Contents
1SAE Interface Attributes ....................... 23 Channelized E1 Module (CE1) Series ..............24 1-port channelized E1 Module (1CE1) ..................24 1CE1 Interface & Indicator ..................... 24 1CE1 Interface Module Connected Cable ................24 Maipu Confidential & Proprietary Information Page 4 of 52... - Page 5 Connecting Power Supply ...................... 41 Main Control Board Cable Connection ..................42 Console Port Connection ......................42 Grounding Wire Connection ....................42 Module Installation ........................ 43 Rack/Desk ..........................43 Panel Wire Connection ......................43 Maipu Confidential & Proprietary Information Page 5 of 52...
- Page 6 1ETE Module Cable Connection ....................49 1ST Module Cable Connection ....................49 Interface Cable Signal ................50 Ethernet Interface Cable ..................50 Console Port Cable ....................51 RM2-1E1 & RM2-1CE1 Uses RJ45-RJ45 Cross-cable ..........52 Maipu Confidential & Proprietary Information Page 6 of 52...
-
Page 7: Installation Manual
Maipu English documentation and products. Customer Support If you have problems or questions regarding your product, please contact us by e-mail at overseas@maipu.com. You can also call our International Business Department over +86–28-85148850, 85148041, 85148050, 85148750, and 85148997. Documentation Support Maipu Communication Technology Co., Ltd welcomes comments and... -
Page 8: Overview
The routers provide a series of highly efficient and low cost network interconnection solution for integration and powerful functions. The routers support: Internet connection Multi-service data integration Branch dialup & backup service Internet & Extranet access Maipu Confidential & Proprietary Information Page 8 of 52... -
Page 9: Product Features
33.6K MODEM, ISDN NT1 and ISDN TE into router to provide required solutions. Universality - The MP2600D, MP2600C and MP1700E series routers support a series of Internet protocol standard (RFC) and international communication network standard. Maipu Confidential & Proprietary Information Page 9 of 52... - Page 10 MP2600D, MP2600C & MP1700E Series Installation Manual V1.4 Structure - The hardware design adapts lower power consumption design integrated structure design, which powerful performance on radiation and EMC. Maipu Confidential & Proprietary Information Page 10 of 52...
-
Page 11: Hardware Features

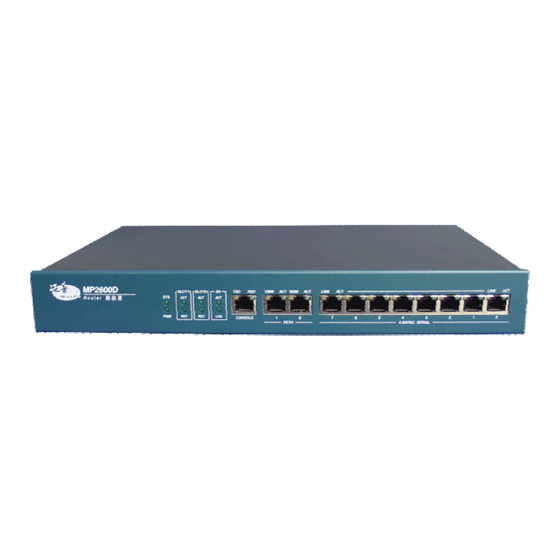

MP2600D, MP2600C & MP1700E Series Installation Manual V1.4 Hardware Features MP2600D, MP2600C & MP1700E Router Appearance MP2600C router MP2600D router Maipu Confidential & Proprietary Information Page 11 of 52... -
Page 12: Mp2600D, Mp2600C & Mp1700E Front Panel
MP2600D, MP2600C & MP1700E Series Installation Manual V1.4 MP1700E router MP2600D, MP2600C & MP1700E Front Panel MP2600D front panel MP2600C front panel MP1700E front panel Maipu Confidential & Proprietary Information Page 12 of 52... - Page 13 100M - 10/100M Ethernet interface data rate indicator. On: 100M，off: ACT - Ethernet interface data indicator ETHERNET0 (Ethernet interface 0) 100M - 10/100M Ethernet interface data rate indicator. On: 100M/off: 10M ACT - Ethernet interface data indicator Maipu Confidential & Proprietary Information Page 13 of 52...
-
Page 14: Mp2600D, Mp2600C & Mp1700E Back Panel
SLOT1 is voice card module slot for VOP/VOS series module; SLOT0 is MIM slot, adopting modularization design, and its function can be realized according to different interface card and relevant software modules. Maipu Confidential & Proprietary Information Page 14 of 52... -
Page 15: Mp2600D, Mp2600C & Mp1700E System
0-40℃ Temperature Environment 10-90%. Non-condensing humidity Power supply rating power Maximum power consumption MP2600D router has eight fixed asynchronous interfaces with modular and clip design. MP2600C/MP1700E router doesn’t have this interface. Maipu Confidential & Proprietary Information Page 15 of 52... -
Page 16: Product Functions
IRMP (compatible with CISCO EIGRP protocol) SNSP (compatible with CISCO ODR protocol) Dial-on-demand routing (DDR) Policy routing Multicast: IGMP PIM-SM PIM－DM DVMRP Hot backup: VRRP VBRP (compatible with CISCO HSRP protocol) Maipu Confidential & Proprietary Information Page 16 of 52... -
Page 17: Mp2600D, Mp2600C & Mp1700E Main Board
Download and upload configuration file and application program by TFTP Colorful distributing debugging information Log function Security IP packet filtering firewall, PAP/CHAP, MD5, NAT, RADIUS, TACACS, IPsec data encryption MP2600D, MP2600C & MP1700E Main Board Maipu Confidential & Proprietary Information Page 17 of 52... -
Page 18: Fixed Interface
Ethernet interface attributes: Attributes Description Converter type RJ45 Interface number Supported frame format Ethernet_II Ethernet_SNAP IEEE 802.2 IEEE 802.3 Working mode 10M/100M adaptive Full/half-duplex Auto across Supported network protocol Novell IPX Maipu Confidential & Proprietary Information Page 18 of 52... - Page 19 Fixed 8 async serial attributes Attributes Description Converter type RJ45 Interface standard RS232 Isolation type Supports advanced optical/electric isolation interface protection technology 9600bps - 115200bps Supported service MODEM dialup Async terminal access Maipu Confidential & Proprietary Information Page 19 of 52...
- Page 20 MODEM. From your side, we adapt normal connected Ethernet cable combing with DB25-RJ45. Eight asynchronous interfaces connect to DTE or MODEM. Fixed 8 asynchronous interface connection & connecting mode: Maipu Confidential & Proprietary Information Page 20 of 52...
- Page 21 SLOT1 is voice card slot for VOP/VOS card module, which can access any telephone via dialup or second dialup; you can realize free phone call in network by IP network. Maipu Confidential & Proprietary Information Page 21 of 52...
-
Page 22: Modules
Synchronous serial interface works in DTE or DCE mode. In DTE mode, it receives external DCE clock, such as external modem; while in the mode of DCE, router provides clock. V24/V35 mode switch is through panel. Maipu Confidential & Proprietary Information Page 22 of 52... -
Page 23: 1Sae Interface Module
Interface standard and V.24 V.35 EIA/TIA-232 working mode Minimum baud rate (bps) 1200 1200 Maximum baud rate (bps) 128K 115.2K Supported protocols & Dialup services HDLC Backup HDLC SLIP SLIP LAPB Maipu Confidential & Proprietary Information Page 23 of 52... -
Page 24: Channelized E1 Module (Ce1) Series
1-port channelized E1 (1CE1) indicator: On: Can not check frame sync signal Off: After sync 1CE1 Interface Module Connected Cable 1CE1 and BNC pin coaxial cable and RJ45-RJ45 straight connected twisted- pair cable. Maipu Confidential & Proprietary Information Page 24 of 52... -
Page 25: Non-Channelized E1 Series
1 E 1 I n t e r f a ce C o nne c t e d C a b l e 1E1 and BNC pin coaxial cable and RJ45-RJ45 straight connected twisted- pair cable. Maipu Confidential & Proprietary Information Page 25 of 52... -
Page 26: Frequency-Band Modem M336 Series
1-port 33.6K frequency-band MODEM is same as out-built or inbuilt MODEM. Its interface works in the mode of synch or async. It also supports leased line or dialup line working mode. Maipu Confidential & Proprietary Information Page 26 of 52... - Page 27 1M336 module connected cable is RJ45 (4, 5 signal line) or RJ11line. 1M336 Module Interface Attri butes 1-port 33.6K frequency-band MODEM (1M336) interface: Attributes Description Tie-in RJ45 Interface number Supported link protocol X.25 HDLC Supported network protocol Maipu Confidential & Proprietary Information Page 27 of 52...
-
Page 28: Base-Band Modem (M128) Series
LED on: When using channel B1, and rate is 64K B2 channel indicator LED on: When using channel B2, and the rate is 128K DIP switch: 1-port 128K baseband MODEM (1M128) DIP switch: Mode DIP switch Description Loopback Reserved Maipu Confidential & Proprietary Information Page 28 of 52... -
Page 29: Isdn (U) Series
1port ISDN U module connects DDN network and ISDN network, and not to connect modem. 1 U M o d u l e & I n d i c a t o r 1U module: Maipu Confidential & Proprietary Information Page 29 of 52... -
Page 30: Ip Module (Vop/Vos) Series
You can easily realize free phone call through IP network. 1 V O P M o d u l e I n d i c a t o r 1VOP interface module: Maipu Confidential & Proprietary Information Page 30 of 52... - Page 31 1 V O P M o d u l e C o nne c t e d C a b l e 1VOP module connected cable is RJ45 (4, 5 signal line) and RJ11 telephone line. Maipu Confidential & Proprietary Information Page 31 of 52...
-
Page 32: 2-Port Voip Module (2Vop)
LED on: after pickup, during the call. 2 V O P M o d u l e C o nne c t e d C a b l e 2VOP module connected cable is RJ45 external cable. Maipu Confidential & Proprietary Information Page 32 of 52... -
Page 33: 1-Port Switch Voip Module (1Vos)
Indicator description: 1-port switch VoIP module (1VOS) indicator: VoIP module indicator. LED on: During the phone call. 1VOS module may not have this LED. Otherwise, the LED will never be on. Maipu Confidential & Proprietary Information Page 33 of 52... -
Page 34: 2-Port Switch Voip Module (2Vos)
IP network. 2VO S I n terf ace Mo dul e & I nd ic at or 2VOS interface module: 2-port switch VoIP module (2VOS) Maipu Confidential & Proprietary Information Page 34 of 52... -
Page 35: Ethernet Module (Ete) Series
1-port Ethernet Module (1ETE) 1-port Ethernet module realizes Ethernet connection. 1 E T E M o d u l e & I n d i c a t o r 1ETE module: Maipu Confidential & Proprietary Information Page 35 of 52... -
Page 36: Isdn S/T Module (St) Series
Tie-in number Supported protocol 802.3 ISDN S/T Module (ST) Series 1-port ISDN S/T Module (1ST) 1port ISDN S/T module. 1ST Modu l e & I nd i cat or 1ST module: Maipu Confidential & Proprietary Information Page 36 of 52... -
Page 37: System Installation
1 S T M o d u l e I n t e r fa c e A t t r i b ut es 1-port ISDN S/T module (1 ) interface attributes: Attributes Description Tie-in RJ45 Number Supported protocol System Installation Preparation Read the manual Maipu Confidential & Proprietary Information Page 37 of 52... -
Page 38: Environment Requirements
Always place router in the equipment room. The environment requirements are: Environment temperature: 0～40°C Humidity: 10～90%. Non-condensing Around the ventilation, the space should be no less than10cm. We suggest installing router on 19-inch standard rack. Maipu Confidential & Proprietary Information Page 38 of 52... -
Page 39: Check Router & Accessories
(only for MP2600D) Technical documents Installation manual configuration Manual (CD) Installation fittings Feet mat and installation bolt 1 set. Product packaging Including foam anti- shocking material and external packing box, plastic bag etc. Maipu Confidential & Proprietary Information Page 39 of 52... -
Page 40: Chassis Installation
（ MP2600D/MP2600C/MP1700E Ethernet cable configured according to the number of Ethernet modules） Modular interface cable Equipment: Ethernet 10 BASE-T HUB Configuring terminal (can be PC) Equipment relevant to optional module Maipu Confidential & Proprietary Information Page 40 of 52... -
Page 41: Machine Installation
Input power supply (DC): -40～-57V only MP1700E supports Power consumption: 15W±10% Always use the power supply jack or MIM PC power supply jack. Ensure reliable grounding. Ground wire Naught wire Live wire Power supply jack Maipu Confidential & Proprietary Information Page 41 of 52... -
Page 42: Main Control Board Cable Connection
Connect this point and ground by a thick cable, with the resistance no bigger than 4Ω. If the router is installed on 19-inch standard rack, the rack should be grounding. Maipu Confidential & Proprietary Information Page 42 of 52... -
Page 43: Module Installation
MP2600D/MP2600C/MP1700E Step 2: Place router on standard rack and connect bracket and metal frame with screw. Panel Wire Connection Panel wire connection includes Ethernet interface cable, WAN sync/async cable connection. Maipu Confidential & Proprietary Information Page 43 of 52... -
Page 44: Hardware Installation
V.24/V.35, and these two modes are completed by V.24/V.35 button In V.24 mode, interface adopts standard RS232 cable connection In V.35 mode, interface adopts special V.35DTE cable V.24/V.35 cable Maipu Confidential & Proprietary Information Page 44 of 52... -
Page 45: Module Interface Cable Connection
Equipment Pin type Router Hole type MODEM Multiplexer CSU/DSU Rate transmission distance: Sync/async serial supports different signal standards and baud rates in different working modes. Choose cables as per prevailing conditions. Maipu Confidential & Proprietary Information Page 45 of 52... - Page 46 Maximum transmission distance (m) 2400 4800 9600 19200 38400 64000 115200 V.35 cable rate and transmission distance: Baud rate (bps) Maximum transmission distance (m) 2400 1250 4800 9600 19200 38400 56000 64000 2048000 Maipu Confidential & Proprietary Information Page 46 of 52...
-
Page 47: 1Ce1/1E1 Module Cable Connection
Step 2: After power on, check LOS status of 1CE1/E1 module. Indicator on means malfunction and signal loses sync. Then check the line. 1M336 Module Cable Connection Insert RJ11 plug of 1M336 module cable to LINE jack. Maipu Confidential & Proprietary Information Page 47 of 52... -
Page 48: 1M128 Module Interface Cable Connection
Step 2: When having the phone call, pay attention to the indicator of 1VOS/2VOS card back panel: the indicator and Active LED should be Maipu Confidential & Proprietary Information Page 48 of 52... -
Page 49: 1Ete Module Cable Connection
1ST Module Cable Connection Connect 1ST module cable according to following steps: Step 01: Insert one end of RJ45 cable into 1ST module Step 02: Connect another end of RJ45 to relevant equipment line Maipu Confidential & Proprietary Information Page 49 of 52... -
Page 50: Interface Cable Signal
Pin 1,2 is transmit and pin 3,6 is receive. They can be connected with HUB. RJ45 Signal Direction RJ45 Length —> —> <— <— RJ45 cross cable (type-5 twisted-pair) pin configuration RJ45 Signal Direction RJ45 Length —> —> <— <— Maipu Confidential & Proprietary Information Page 50 of 52... -
Page 51: Console Port Cable
O N S O L E P O R T C A B L E P I N C O N F I G U R A T I O N RJ45 Signal Direction Length —> —> —> <— <— <— Maipu Confidential & Proprietary Information Page 51 of 52... -
Page 52: Rm2-1E1 & Rm2-1Ce1 Uses Rj45-Rj45 Cross-Cable
I N C O N F I G U R A T I O N F O R R O S S C A B L E RJ45 Signal Direction RJ45 <— <— —> —> Maipu Confidential & Proprietary Information Page 52 of 52...
