Installation Manual

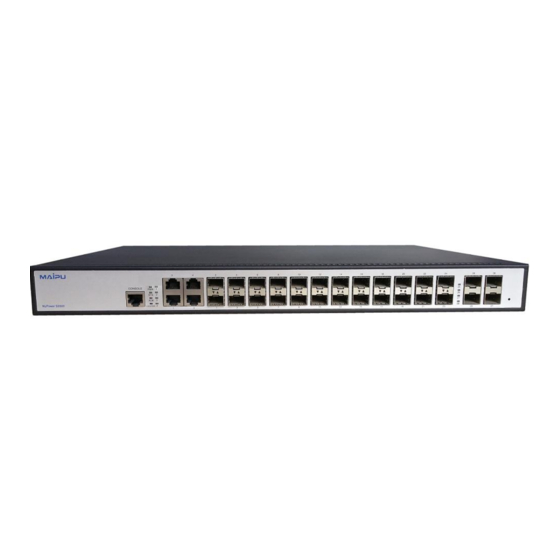

SM3300-28FX Installation Manual
Maipu Communication Technology Co., Ltd
No. 16, Jiuxing Avenue
Hi-tech Park
Chengdu, Sichuan Province
People's Republic of China - 610041
Tel: (86) 28-85148850, 85148041
Fax: (86) 28-85148948, 85148139
URL: http://
www.maipu.com
Email:
overseas@maipu.com
Advertisement
Table of Contents
Related Manuals for Maipu SM3300-28FX
Summary of Contents for Maipu SM3300-28FX
- Page 1 Installation Manual SM3300-28FX Installation Manual Maipu Communication Technology Co., Ltd No. 16, Jiuxing Avenue Hi-tech Park Chengdu, Sichuan Province People’s Republic of China - 610041 Tel: (86) 28-85148850, 85148041 Fax: (86) 28-85148948, 85148139 URL: http:// www.maipu.com Email: overseas@maipu.com...
- Page 2 Maipu Communication Technology Co., Ltd. Maipu makes no representations or warranties with respect to this document contents and specifically disclaims any implied warranties of merchantability or fitness for any specific purpose. Further, Maipu reserves the right to revise this document and to make changes from time to time in its content without being obligated to notify any person of such revisions or changes.
-
Page 3: Table Of Contents
Physical Features .......................... 4 Hardware Features ........................5 1.3.1 Front Board of Switch ........................5 1.3.2 Back Board of SM3300-28FX ...................... 5 1.3.3 LED Indicators Instruction ......................6 1.3.4 Port description on the front pannel ..................7 Service Features ..........................8 Chapter 2 Preparations for Installation ..................... - Page 4 Chapter 5 Failure Handling ........................20 Power System Failure ........................ 20 Configuration System Failure ....................20 Failure Handling on No Displaying ..................20 Failure Handling on Displaying Invalid Characters ............20 Maipu Confidential & Proprietary Information Page 3 of 21...
-
Page 5: Chapter 1 Product Introduction
It supports SNMP/Telnet/SSH/WEB/VCT test, 802.3ah and Loopback detect, LLDP neighbor detect. 1.2 Physical Features The meaning of indicator in front board of SM3300-28FX Ethernet Switch is as in following table: Maipu Confidential & Proprietary Information Page 4 of 21... -
Page 6: Hardware Features
SFP ports, 4*1G/10G Base-X SFP+ ports, 1 *Console port, 36*LED lights. 1.3.2 Back Board of SM3300-28FX Back board of SM3300-28FX switch includes power supply hub and ground wire end. As below: Picture 1-2 Back board of SM3300-28FX switch Maipu Confidential & Proprietary Information... -
Page 7: Led Indicators Instruction
Installation Manual 1.3.3 LED Indicators Instruction Front board light indicators of SM3300-28FX contain port indicators and system status indicators, the meanings of light indicators are the same, instruction as below: 1.3.3.1 Port Indicator Instruction Picture 1-3 SM3300-28FX LED Table 1-2 Port indicator instruction of SM3300-28FXSwitch... -
Page 8: Port Description On The Front Pannel
SFP-LX-20-L transceiver：1310nm light, 9/125um single-mode fiber：20km SFP-LX-40 transceiver：9/125um single-mode fiber：40km SFP-LH-70-L transceiver：9/125um single-mode fiber：70km SFP-LH-120-L transceiver：9/125um single-mode fiber：120km SFP-GT SFP-GT Module：1000Base-T SFP Interface Card Module，RJ-45 interface SFP-FX：100Base-FX SFP Interface Card Module（1310nm，MMF，2KM） ，LC SFP-FX interface Maipu Confidential & Proprietary Information Page 7 of 21... -
Page 9: Service Features
SFP-FL：100Base-FL SFP Interface Card Module（1310nm，SMF，15KM） ，LC interface SFP-FL-40：100Base-FL SFP Interface Card Module（1310nm，SMF，40KM） ，LC interface SFP-FL-80：100Base-FL SFP Interface Card Module（1550nm，SMF，80KM） ，LC interface Service Features Table1-5 Service features of SM3300-28FX Service Realization 4K VLAN entries. Port-based and Protocol -based VLAN Port-isolation in a VLAN VLAN... - Page 10 Support for tag-based priority stream packet redirection, flow mirroring Support Xmodem, FTP and TFTP protocol Upgrading to realize upgrading Supports MP.Link collection management and remote upgrading (client) Management Supports command-line interface(CLI) Support Telnet remote configuration Maipu Confidential & Proprietary Information Page 9 of 21...
- Page 11 Support password gathering authentication of administrator Support interface lock, number of MAC Security address of each interface can be restricted. Support 802.1x Supports debug information output Maintenance Support PING Supports system log Maipu Confidential & Proprietary Information Page 10 of 21...
-
Page 12: Chapter 2 Preparations For Installation
To avoid the danger of electricity attacking, do not open the cabinet shell though the switch is power off. Examine Installation Location No matter where SM3300-28FX Fast Ethernet Switch is installed, in cabinet or on desk, following conditions must be satisfied. 2.2.1 Temperature/Humidity To guarantee normal working and life span of the switch, certain temperature and humidity can be maintained in the equipment room. -
Page 13: Neatness
This harmful gas may accelerate the rusting and aging of same parts. Such harmful gas must be prevented as SO2, H2O, NO2, NH3, and CL2. The restricted value is as following: Table 2-3 The limitation of harmful gas Average(mg/m Maximum(mg/m Maipu Confidential & Proprietary Information Page 12 of 21... -
Page 14: Static Free
0.15 2.2.3 Static Free SM3300-28FX makes a lot of consideration in anti-static, but static electricity over a certain tolerance limit will disruptive the circuit even the whole switch. In the network connected by the switch, electrostatic induction mainly from two aspects: the outdoor high-voltage power lines, lightning and other external electric field;... -
Page 15: Anti-Lightning
Adopts electromagnetism shield when necessary, such as adopting shield cable to be interface cable. 2.2.5 Anti-lightning SM3300-28FX makes a lot of consideration in anti-lightning, but lightning over a certain tolerance limit will disruptive the circuit even the whole switch. Users should: ... -
Page 16: Chapter 3 Installation
Keep some space between switch and the slide. Step 3: Fasten hanger to the fixed slide of the cabinet to guarantee the bracket of each slot and hanger of the switch are fastened to the cabinet Maipu Confidential & Proprietary Information Page 15 of 21... -
Page 17: Cable
This chapter describes how to connect cable to switch. 3.3.1 Connect to Switch Console Port There is a EIA/TIA-232 console port on SM3300-28FX switch. User can use this port to configure the switch. Step1: A character terminal which can be a RS-232 Step2: Connect RS-232 port to console port 3.4 Connect to Ground... -
Page 18: Connect To Power
If the switch is installed in the cabinet, the cabinet also has to take the land required. 3.5 Connect to Power SM3300-28FX switch can support 100V and 240V with 50/60Hz AC power. Power input: (100~240VAC, 50~60Hz) 1: For AC,... -
Page 19: Chapter 4 Cable Description
Installation Manual Chapter 4 Cable Description 4.1 Ethernet Interface Cable SM3300-28FX switch cable is 8-core unshielded twisted pair. 1, 2 is for sending and 3, 6 is for receiving. Table 4-1 RJ45 through line Cat5 RJ45 Signal Direction RJ45 Description Length —>... -
Page 20: Console Cable
DB-9 (holes). The Console cable is as the following picture: Picture 4-1 The picture of Console cable Table 4-3 Connecting of Console RJ45 Signal Direction Length —> —> —> <— <— <— Maipu Confidential & Proprietary Information Page 19 of 21... -
Page 21: Chapter 5 Failure Handling
The matching of power supply of switch and power required. 5.2 Configuration System Failure After The power of SM3300-28FX Fast Ethernet Switch is on, if the system works normally, the booting information will be displayed in configuration terminal; if there is failure in configuration system, it will display nothing or illegible characters. -
Page 22: Maipu Confidential & Proprietary Information
(such as hyperterminal): baud rate is “9600”, data bit is “8”, and parity check is “none”, stop bit is “1”, flow control is “none”, and choose terminal emulation as “auto-detect”. Maipu Confidential & Proprietary Information Page 21 of 21...
